DC1632/2240
REP 12.19
Prelaunch Training/Review
Repairs and Adjustments
4. Remove Rear Rack (Figure 3).

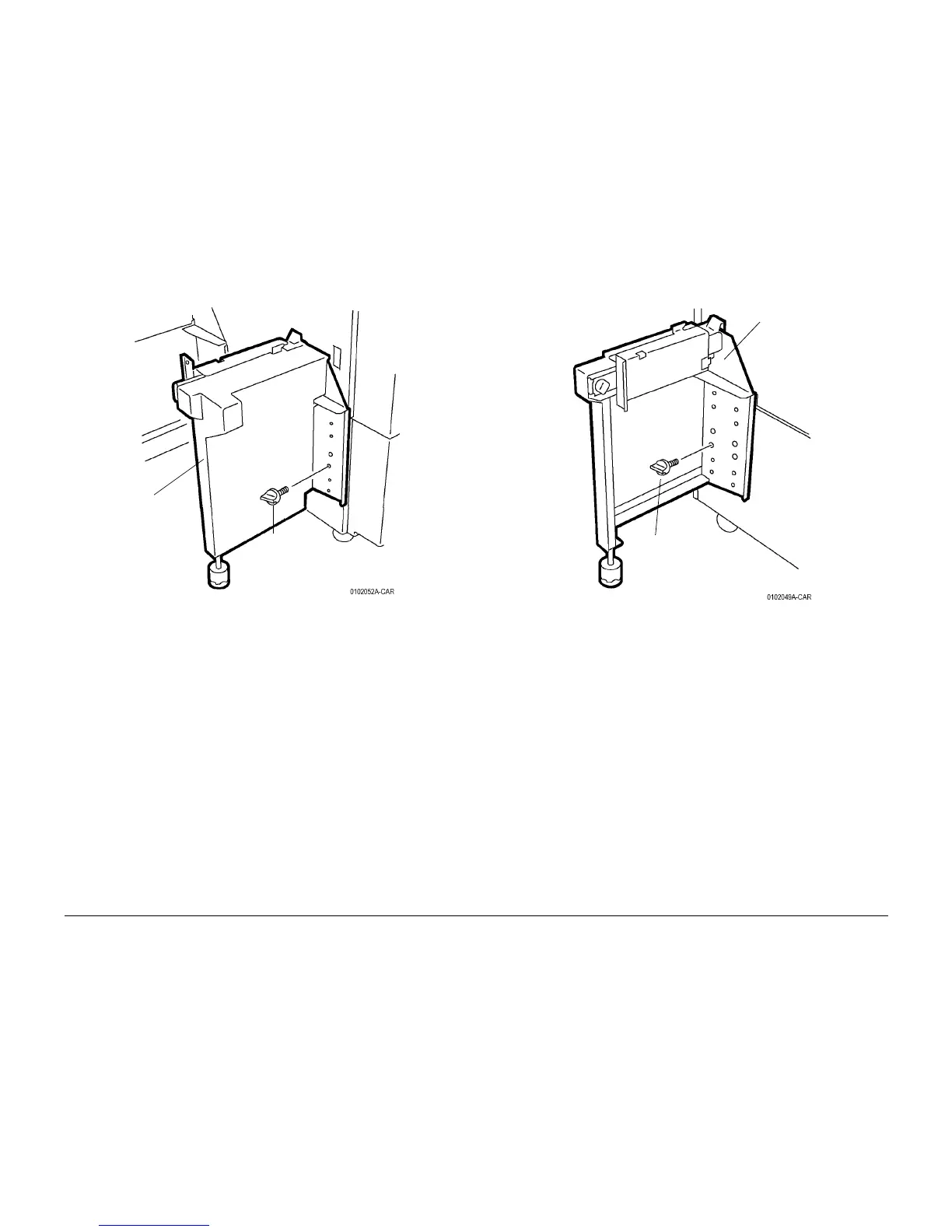

Figure 3 Removing Rear Rack
5. Remove Front Rack (Figure 4).
Figure 4 Removing Front Rack
1
Remove
Thumbscrew
2
Lift to
Remove
Rack
1
Remove
Thumbscrew
2
Lift to
Remove
Rack
