6/02
4-28
DC1632/2240
REP 5.10
Prelaunch Training/Review
Repairs and Adjustments
2. Install Set Gate Solenoid Assembly (Figure 3)

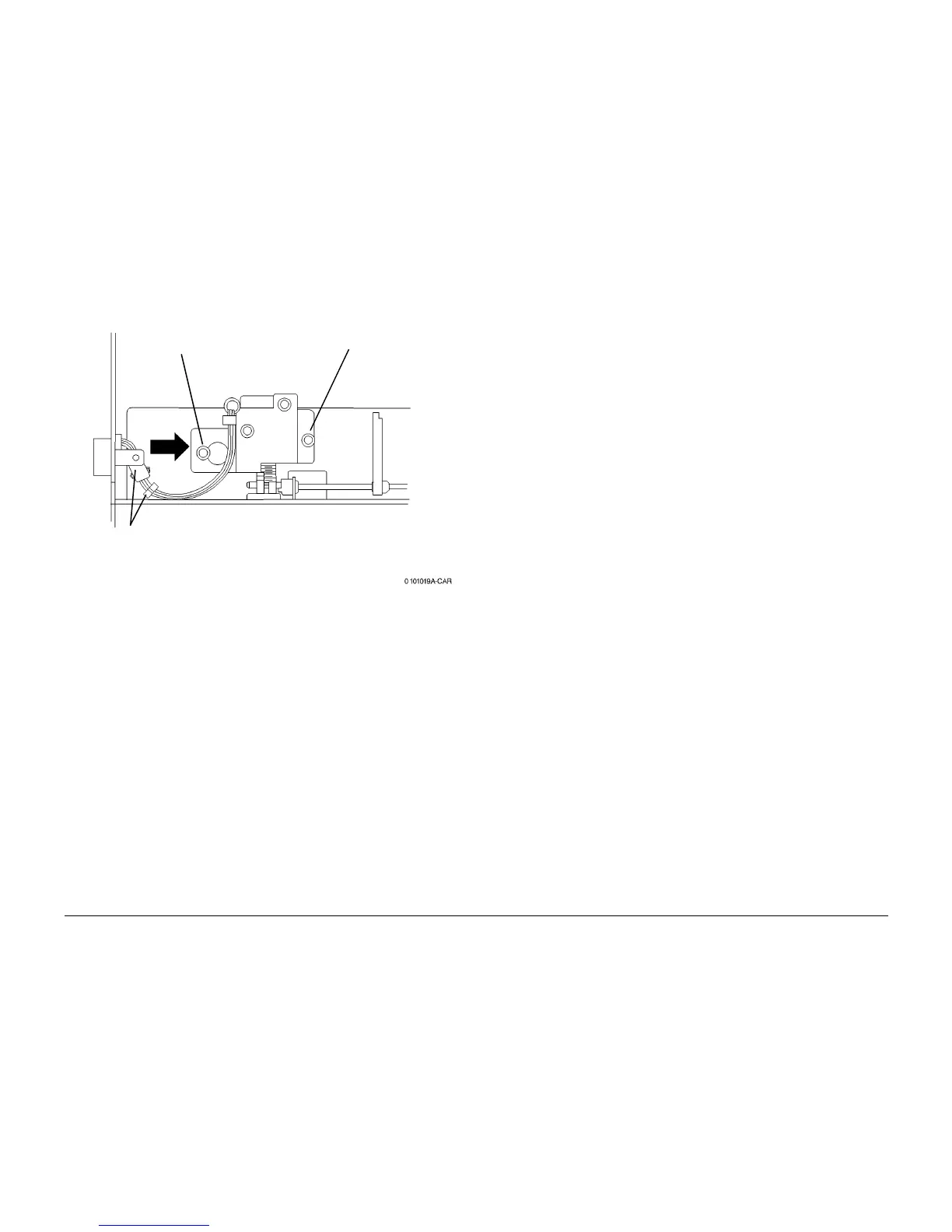

Figure 3 Installing Set Gate Solenoid Assembly
1
Position Solenoid
on Screws
2
Move Solenoid as
shown and tighten
Screws (2)
3
Connect and secure
harness in clip
