6. Remove Rear Rail Mounting Screws (2) (Figure 5).

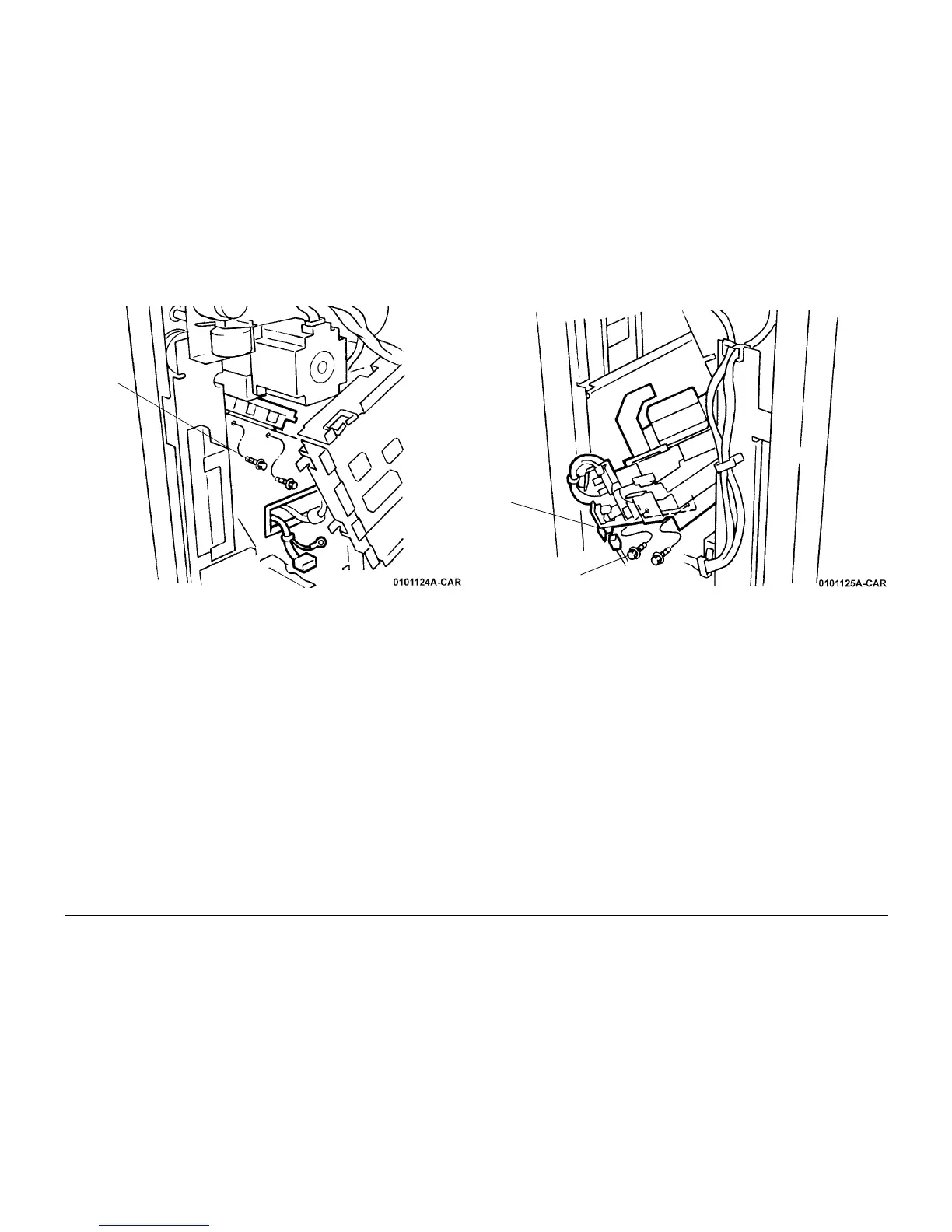

Figure 5 Removing Rear Rail Mounting Screws (2)
7. Remove Front Rail Mounting Screws (2) (Figure 6).
Figure 6 Removing Front Rail Mounting Screw
Remove
Screws (2)
2
Remove Screws (2)
1
Disconnect
P/J
