6/02
4-118
DC1632/2240
REP 12.10
Prelaunch Training/Review
Repairs and Adjustments

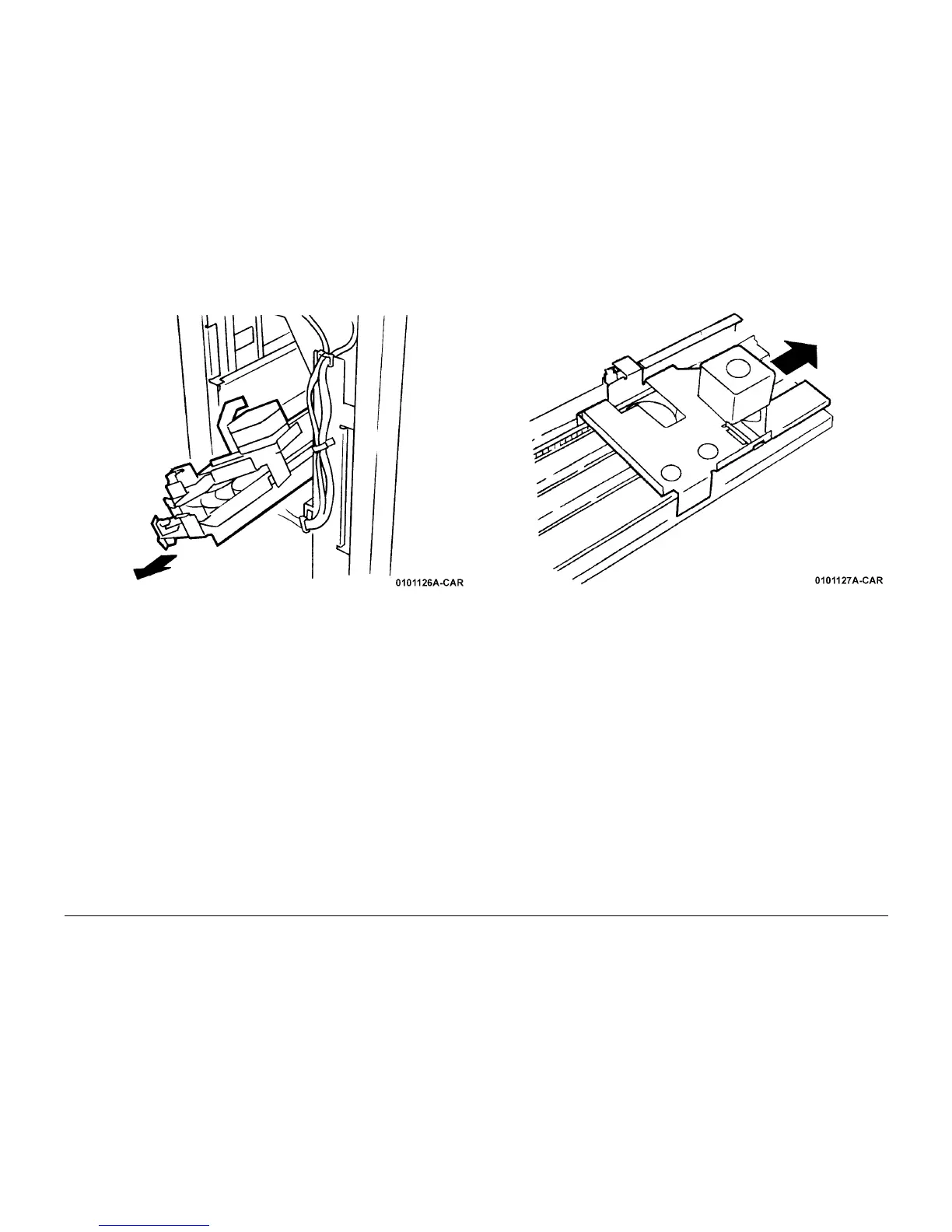

8. Remove the Rail Assembly (Figure 7).
Figure 7 Removing Rail Assembly
9. Remove the Carriage Assembly (Figure 8).
Figure 8 Removing the Carriage Assembly
