6/02
4-114
DC1632/2240
REP 12.9
Prelaunch Training/Review
Repairs and Adjustments
Replacement
NOTE: During assembly, refer to Figure 5.

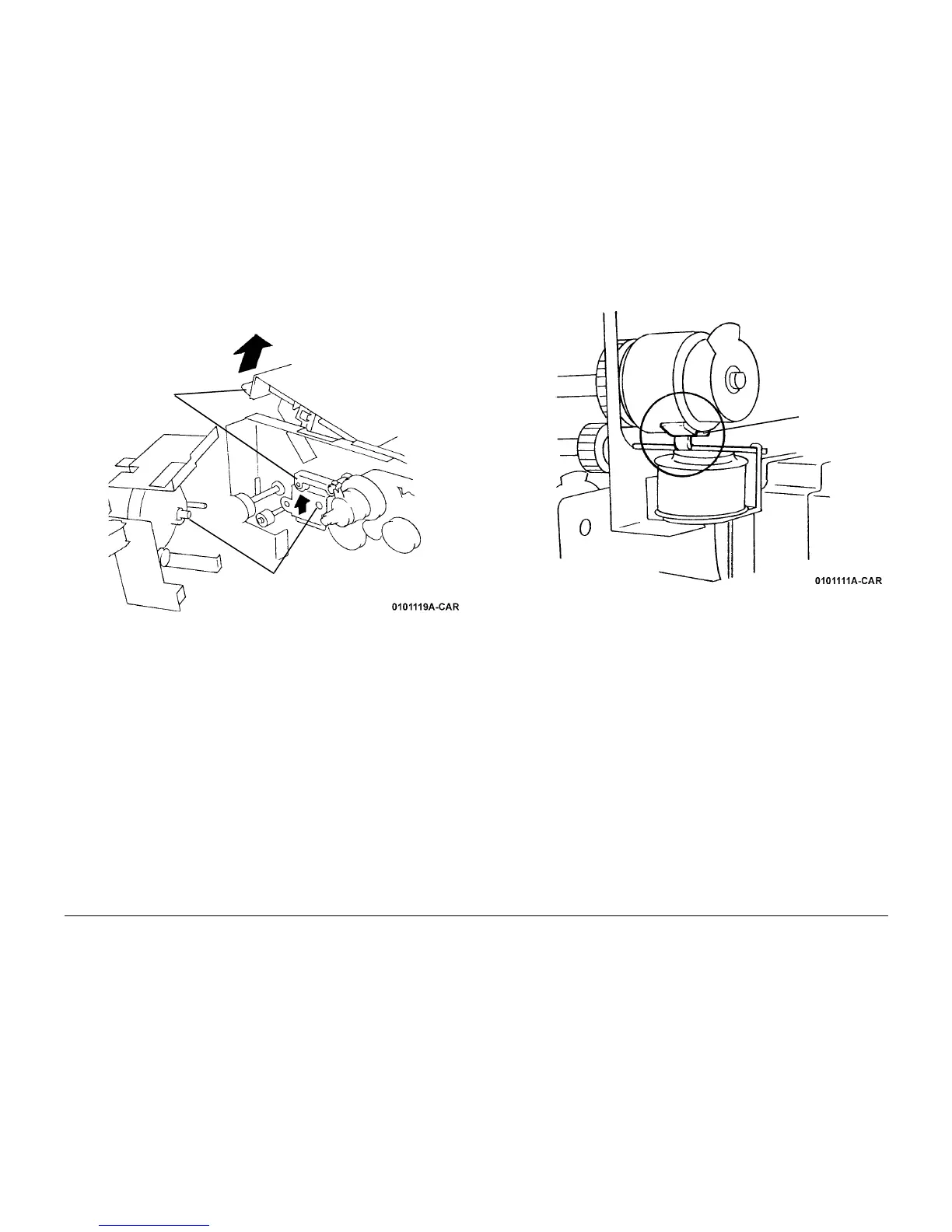

Figure 5 Inserting Axle of Cam Bracket Assembly into Hole
NOTE: During assembly, refer to Figure 6.
Figure 6 Engaging Pawl with Slot
2
Align Axle
with Hole
1
Raise Top
Cover to raise
Roller while
performing
step 2
Rotate Cam so
Pawl engages
Slot
To Next Page
