Xerox DocuColor 1632

6/02
4-89
DC1632/2240
REP 9.22
Repairs and Adjustments
Prelaunch Training/Review
3. If Transfer Belt is skewed or wrinkled, perform following steps: (Figure 12)
a. Relax tension of Belt.
b. Rotate Gear in arrow direction and move Transfer Belt.

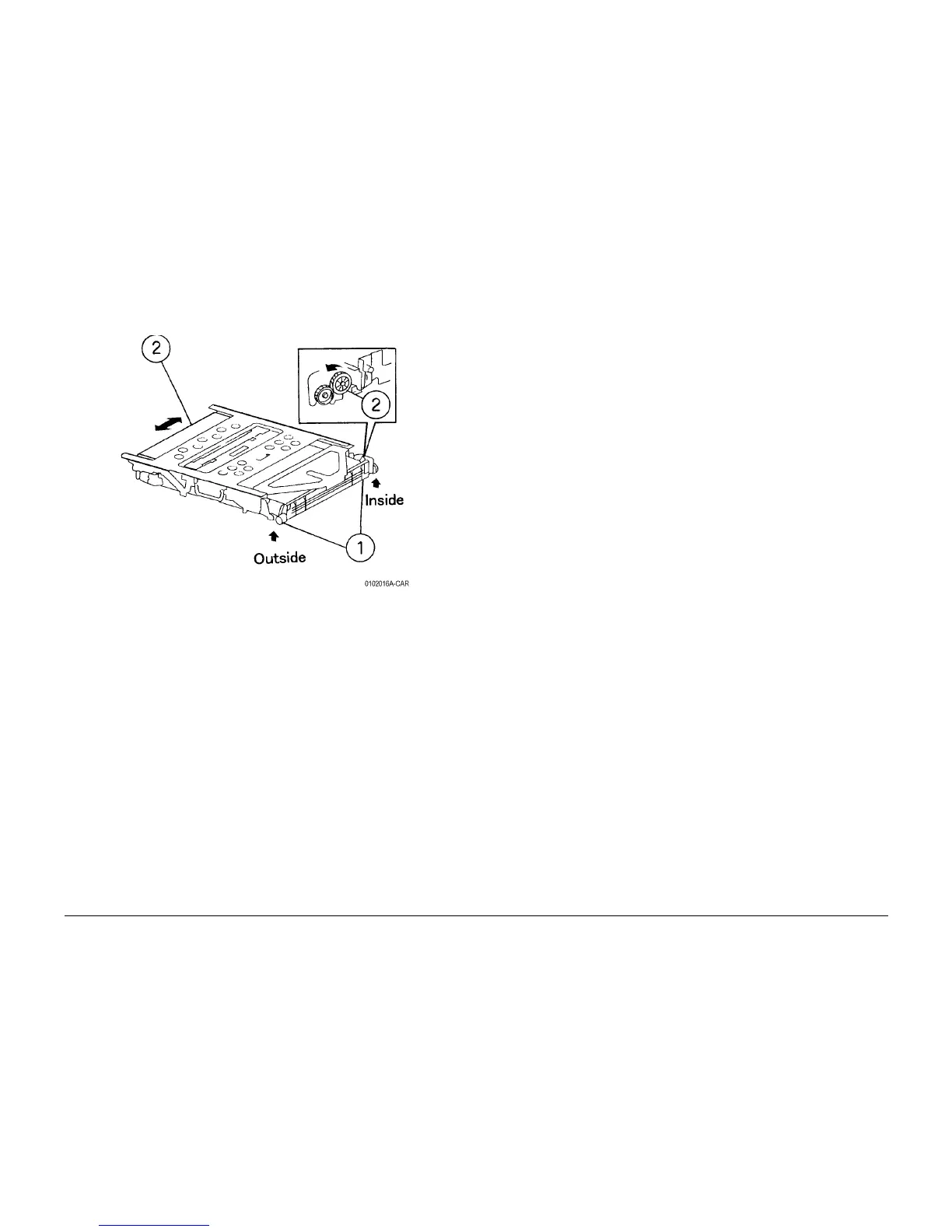

Figure 12 Re-positioning Transfer Belt
