Xerox DocuColor 1632

6/02
4-88
DC1632/2240
REP 9.22
Prelaunch Training/Review
Repairs and Adjustments
Replacement

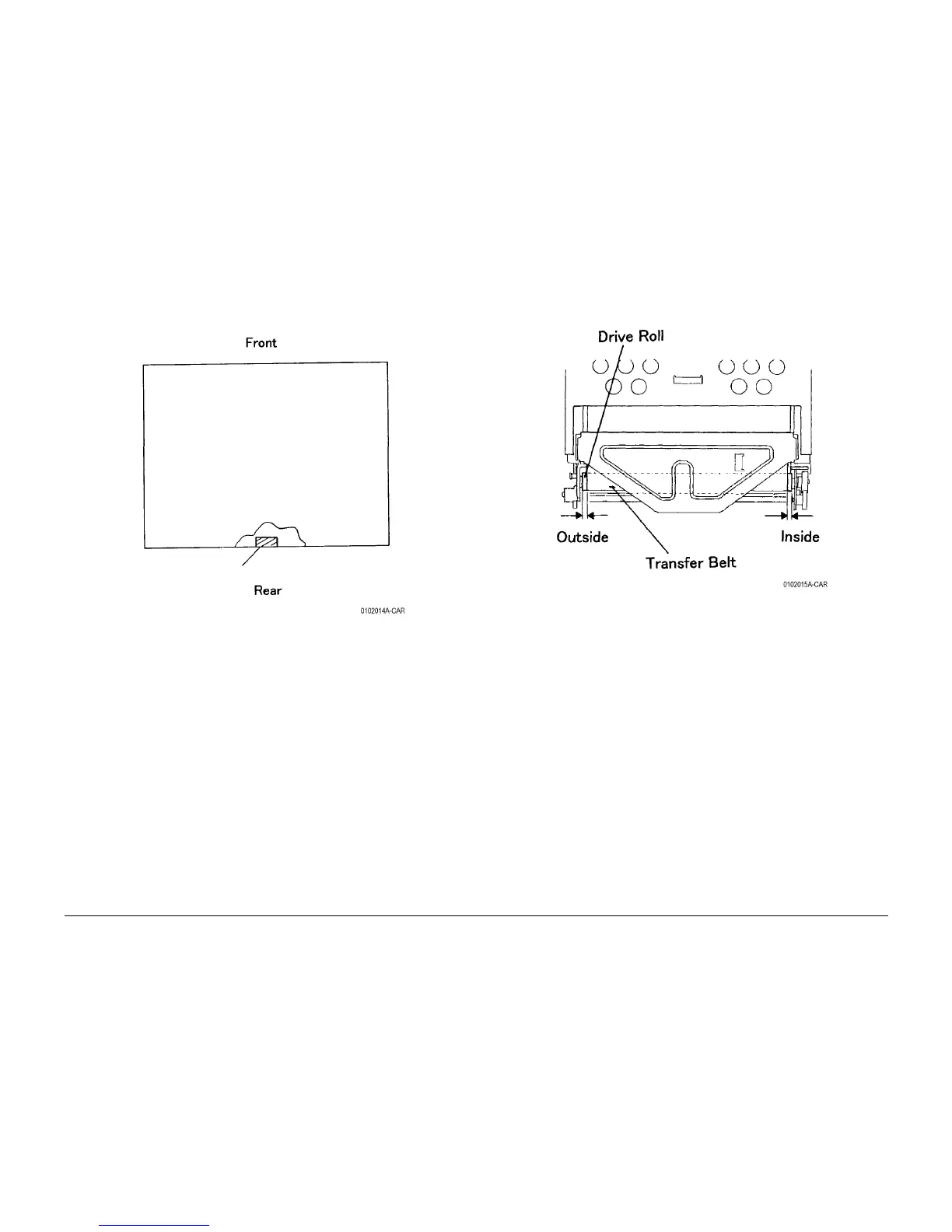

1. Install Transfer Belt with Reflector at rear (Figure 10).
Figure 10 Installing Transfer Belt
2. After installing Transfer Belt, move it to center of IBT Frame (exposed parts of IBT Drive
Roll are same at In and Out sides) (Figure 11).
Figure 11 Positioning Transfer Belt
Reflector
