Paper Sizes Detected by the IIT
Refer to Table 1. This table indicates the standard paper sizes which the IIT is capable of
detecting
NOTE: The NVM setting for 715-305 determines whether the machine will detect 13" or 14" in
the slow scan direction.
Scanner Initialization
The carriage position initializes after the machine is powered on or has recovered from power
save mode. Refer to Figure 10.

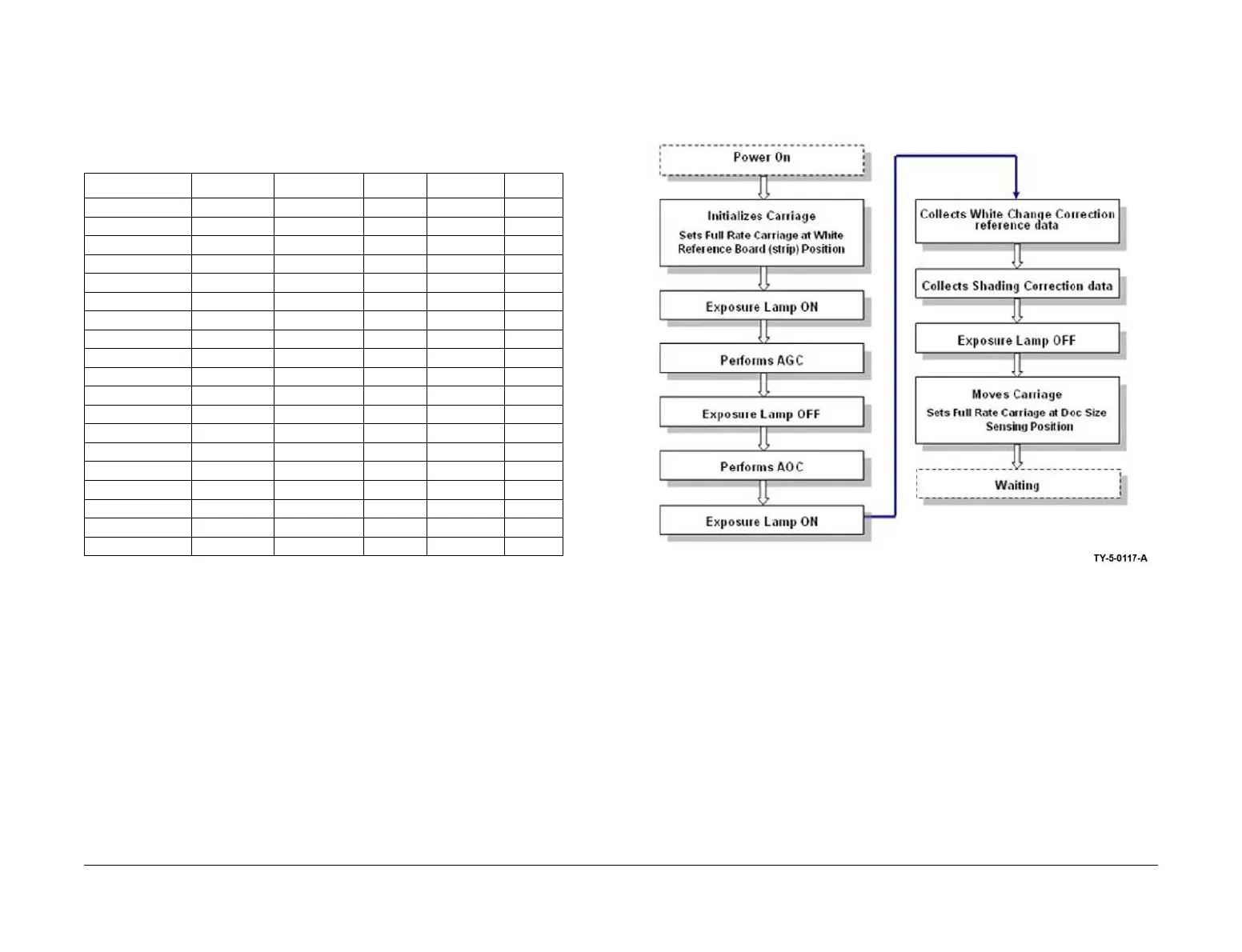

Figure 10 Scanner initialization
Table 1 Paper sizes
Document size Width (mm) Length (mm) DMO-W XE/DMO-E XC
A5 SEF 148 210 Y Y N
A5 LEF 210 148 Y Y N
5.5” x 8.5” LEF 215.9 139.7 Y N Y
5.5” x 8.5” SEF 139.7 215.9 N N Y
B5 SEF 182 257 Y N N
B5 LEF 257 182 Y N N
A4 SEF 210 297 Y Y N
A4 LEF 297 210 Y Y Y
8.5” x 11” SEF 215.9 279.4 Y N Y
8.5” x 11” LEF 279.4 215.9 Y Y Y
8.5” x 13” SEF 215.9 330.2 Y Y N
8.5” x 14” 215.9 355.9 Y N Y
B4 SEF 257 364 Y N N
A3 SEF 297 420 Y Y Y
11” x 17” SEF 279.4 431.8 Y Y Y
Executive LEF 266.7 184.2 N Y Y
A6 SEF 105 148 Y Y N
Post card LEF 152.4 101.6 Y Y Y
B6 SEF 128.5 182 Y Y N

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
