Xerox VersaLink B7030 Service Manual

April 2017
4-114
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.17
Launch Issue
Repairs and Adjustments

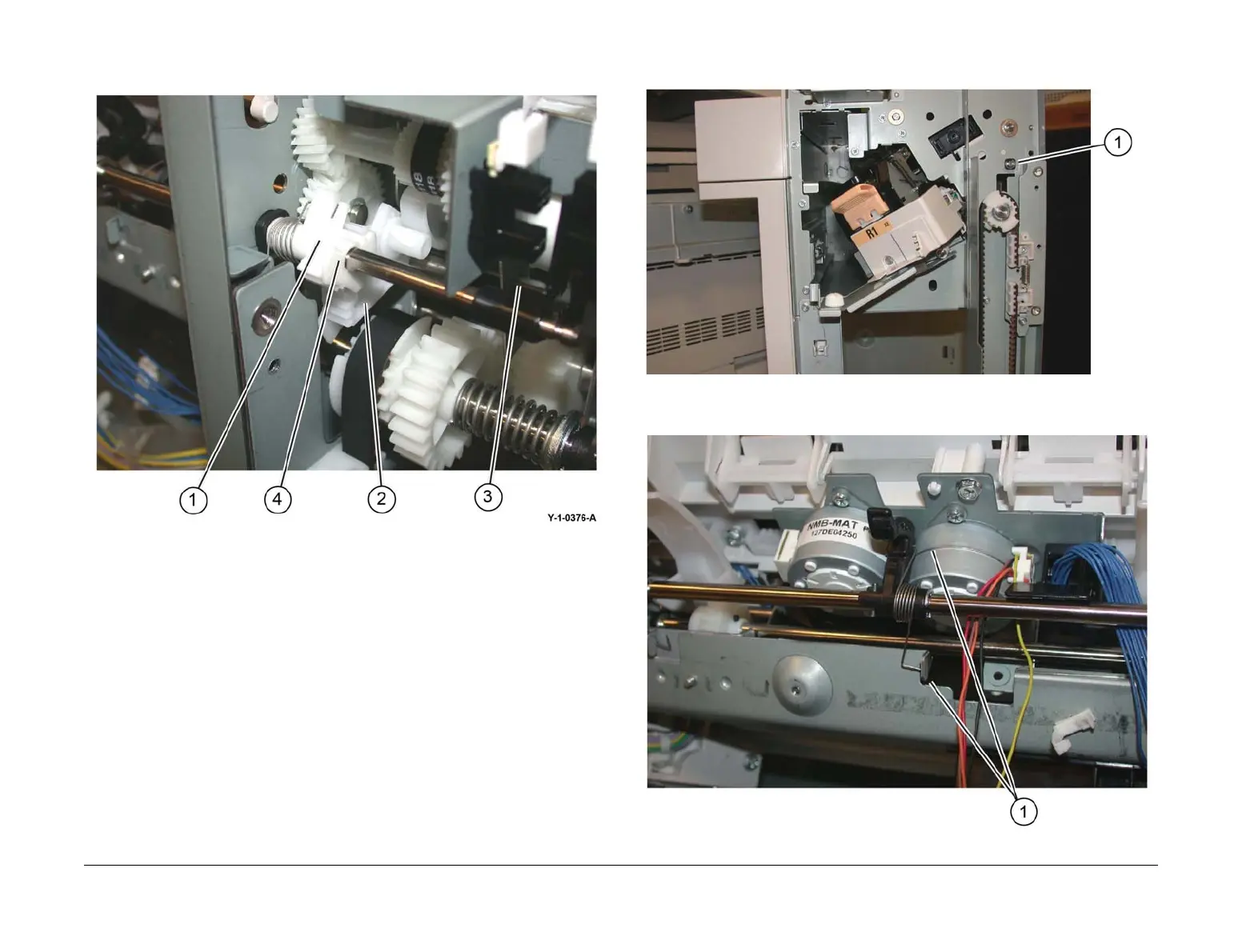

8. Ensure that the shaft gear (1), pinion gear (2) and the stack height sensor flag (3) are
position as shown in Figure 15, then install the E-ring (4).
Figure 15 Gears and stack height sensor flag
9. Install the bushing onto the front end of the set clamp shaft, then install the E-ring (1), Fig-
ure 16.
Figure 16 Bushing and E-ring
10. Ensure that the set clamp holder springs (1) are connected, Figure 17.
Figure 17 Set clamp holder springs

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
