3 Alarm Log Settings Dialog Box
13-20 WindO/I-NV4 User’s Manual

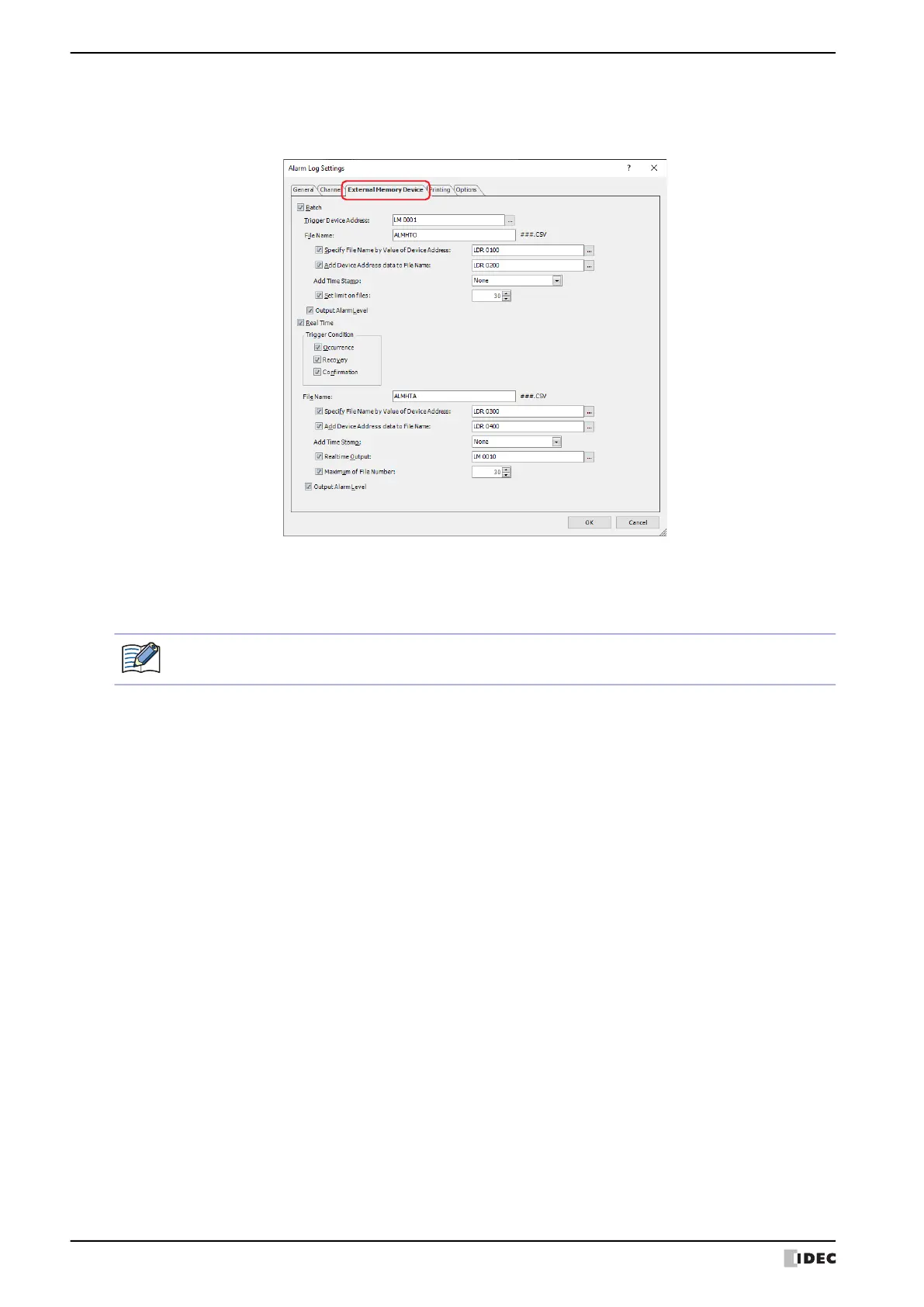

● External Memory Device Tab
The External Memory Device tab is used to configure whether or not to output saved data to the external memory
device
*1
.
The output data is stored in the "ALARMLOG" folder of the External Memory Device folder.
The default External Memory Device folder name is “HGDATA01”. For details, refer to Chapter 31 “1.4 File structure”
on page 31-3 and Chapter 31 “1.6 Setting the External Memory Device Folder” on page 31-12.
*1 USB flash drive inserted in USB1 for HG2J-7U, SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F,
USB flash drive for HG2G-5T and HG1G/1P
Sampled data after starting output to the external memory device is not included in the output data.
To Next Page
