● Data Tab

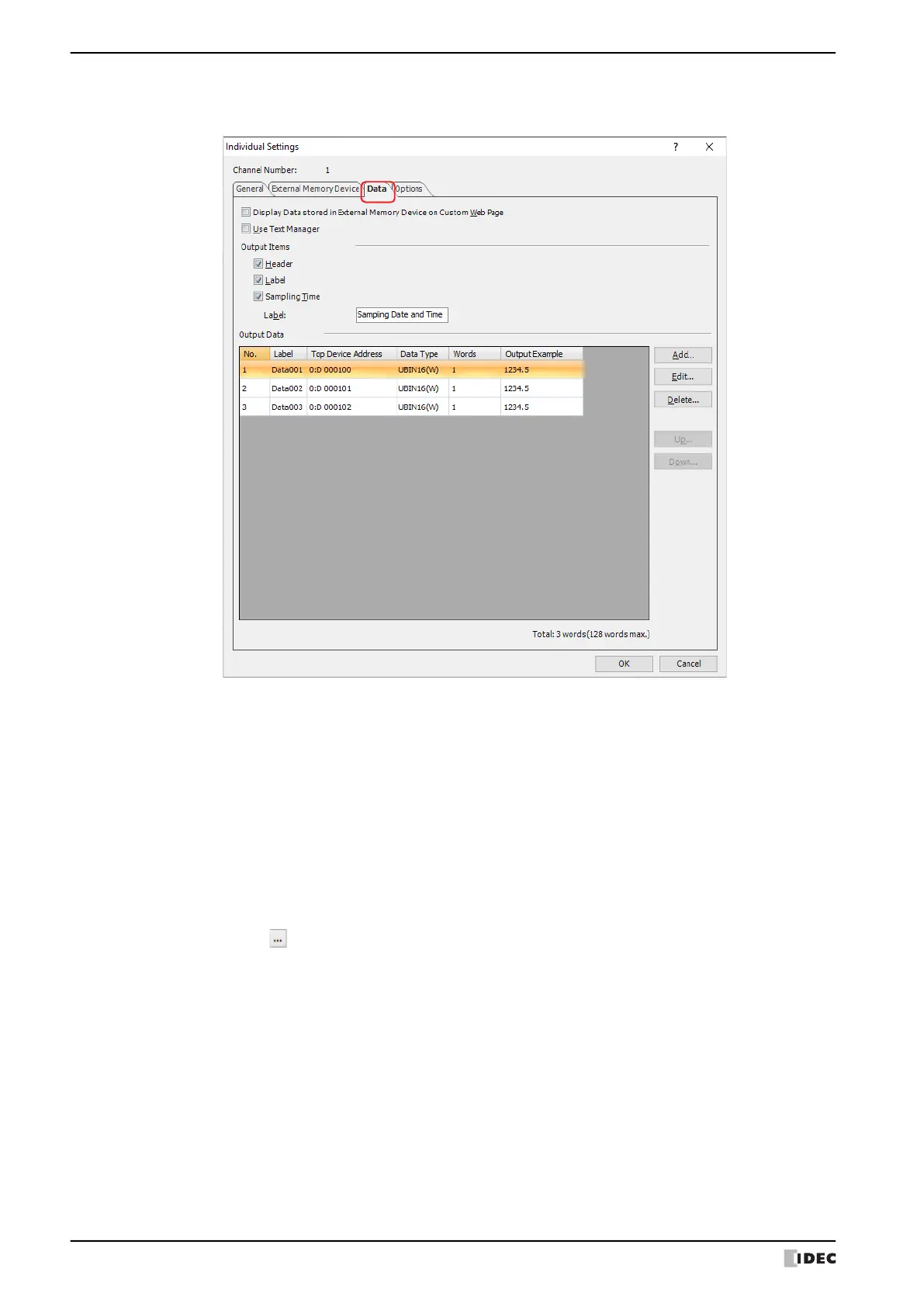

The Data tab is used to configure the data to sample.
■ Display Data stored in External Memory Device on Custom Web Page
Select this check box to display the data stored in external memory device on Custom Web Page.
■ Use Text Manager
Select this check box to use text registered in the Text Manager for labels when outputting data as CSV.
■ Output Items
Select the output items when data is output as CSV. Select the check boxes of the items to output.
Header, Label, Sampling Time
When Label is selected, specifies the label to display in the sampling time column when outputting data as CSV.
■ Output Data
Output Data is used to configure the details of the data to sample for each data number in the selected channel.
Label(Text ID): Specifies the Text Manager ID number (1 to 32000) when text registered in Text Manager are
used for labels.
Click to open Text Manager where you can edit the text.
This option is only enabled if you select the Use Text Manager check box.
Label: Enter the text to display in the label. The maximum number is 40 characters.
Text can only be entered when the Use Text Manager check box is cleared. The registered text
is displayed when a text ID is specified.
No.: Shows the data numbers for the registered data. Double clicking the cell displays the Edit Data
dialog box. The data number cannot be edited. For details, refer to “Add Data Dialog Box and
Edit Data Dialog Box” on page 14-28.
