WindO/I-NV4 User’s Manual 18-5
2 Recipe Function Configuration Procedure
18
Recipe Function

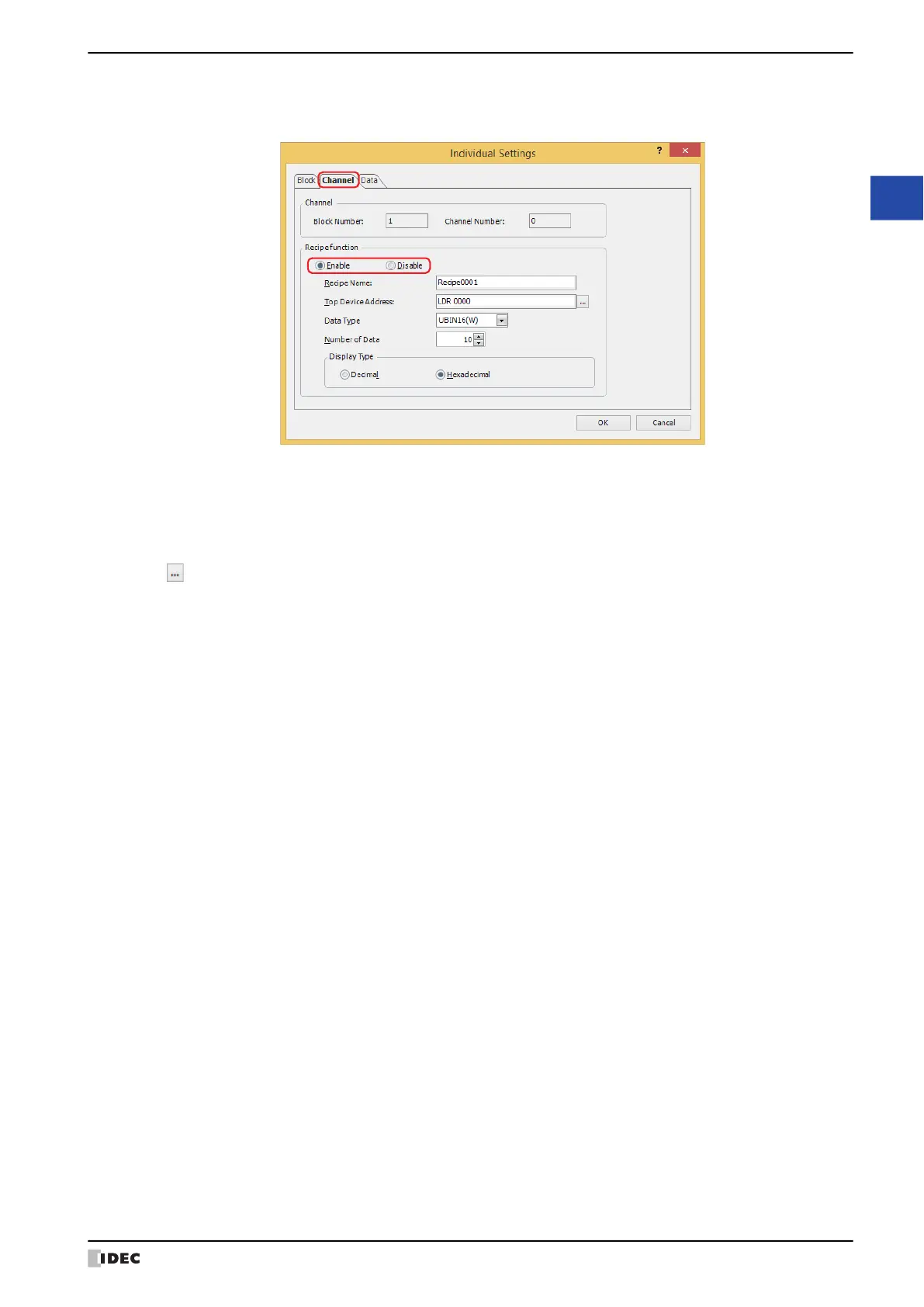

4 On the Channel tab, under Recipe function, select Enable.
The channel for the block number displayed in Channel is enabled.
5 Enter the name for the Recipe function in Recipe Name.
The maximum number is 40 characters.
6 Specify the destination device address for the Recipe values in Top Device Address.
To read values of device addresses and save them as a recipe file, specify the source device address of the values.
Click to display the Tag Editor.
For the device address configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-70.
The specified device addresses are configured sequentially from the number 1 in Data List on the Data tab.
7 Select the data type for the values to write with Data Type.
To read values of device addresses and save them as a recipe file, specify the type of data for the read values.
8 With Number of Data, specify the number of destination device addresses starting with the device address
configured by Top Device Address.
To read values of device addresses and save them as a recipe file, specify the number of source device addresses.
The sequential device addresses from the start address for the number of configured device addresses are displayed
in Settings on the Data tab.
The amount of data that can be set varies based on the data type. When UBIN16(W), BIN16(I), or BCD4(B) is
selected for Data Type, up to 8192 items of data can be configured. When UBIN32(D), BIN32(L), BCD8(EB), or
Float32(F) is selected, up to 4096 items of data can be configured.
9 With Display Type, select the display type for Data to configure in Data List on the Data tab.
To save data to a recipe file, the display type is decimal for all.
To Next Page
