2 Recipe Function Configuration Procedure
18-6 WindO/I-NV4 User’s Manual
10

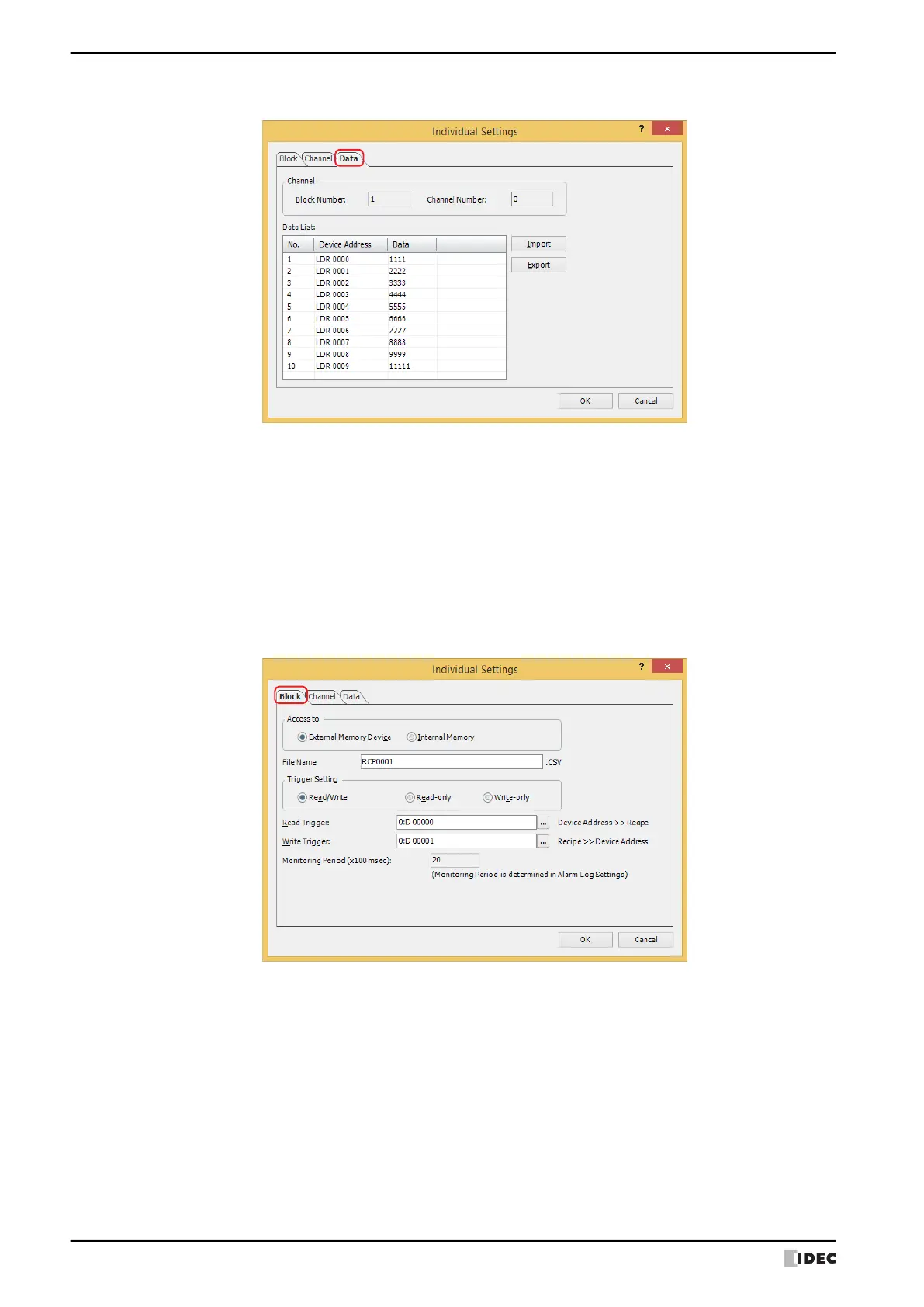

Click the Data tab.
The data for the recipe in the amount specified by Number of Data on the Channel tab is configured in Data List.
In Device Address, the devices are sequentially configured starting from the device address specified by Top
Device Address.
11
Double click the data cell for each number in Data List to enter the value to write to the device address.
The value for the device address that can be configured varies based on Data Type and Display Type configured on
the Channel tab.
When Read-only is selected under Trigger Setting on the Block tab, entering values of device addresses is
unnecessary.
12
Click the Block tab.
13
Select the destination to save recipe data to under Access to.
This option is set by block.
â– External Memory Device
*1
Use a recipe file saved to the external memory device.
â– Internal Memory
Use recipe data saved to internal memory.
If you selected Internal Memory, proceed to step
17
.
*1 USB flash drive inserted in USB1 for HG2J-7U, SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F,
USB flash drive for HG2G-5T and HG1G/1P
To Next Page
