● Channel Tab

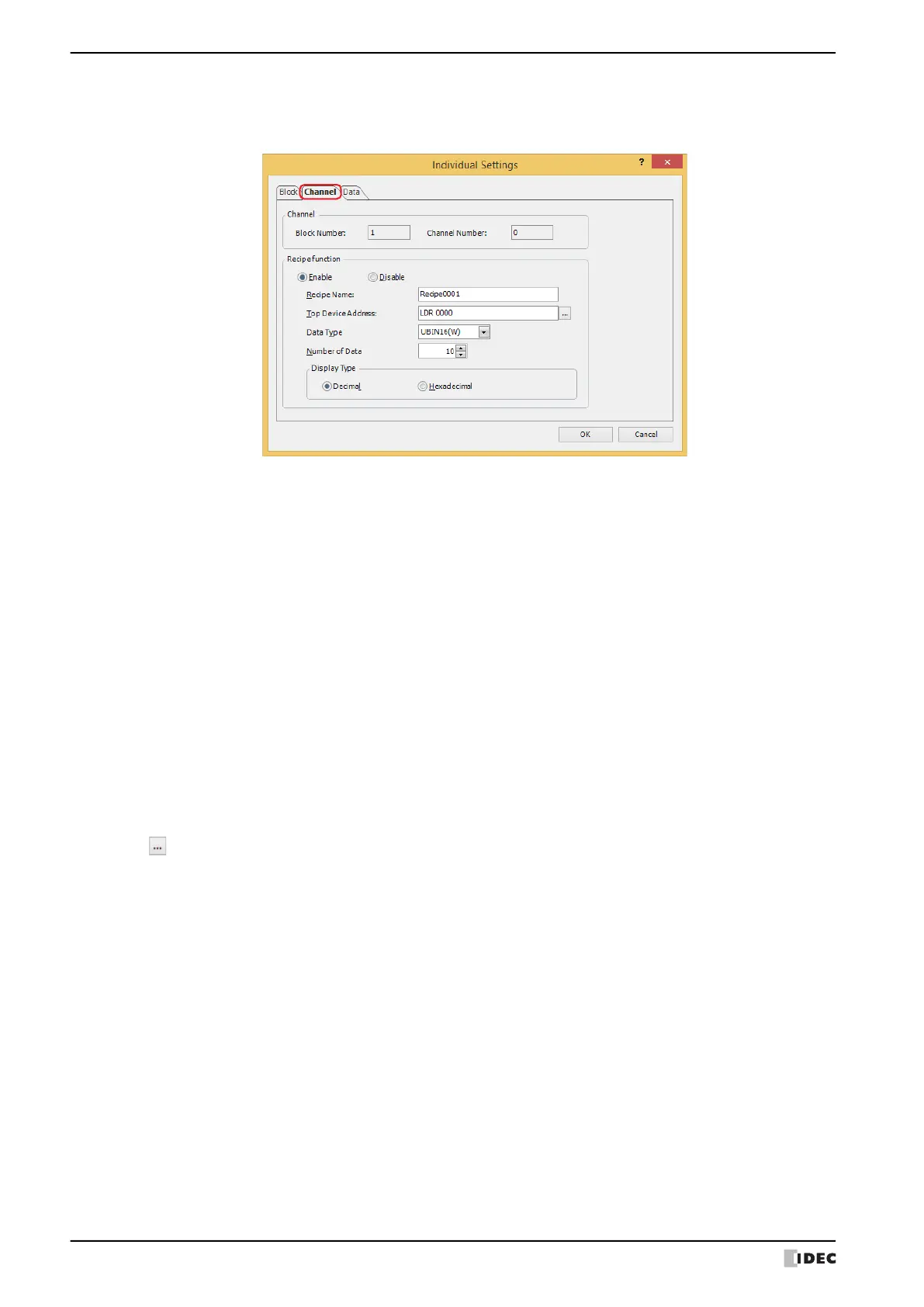

The Channel tab is used to configure the recipe name for the selected channel and the device addresses to read and
write values to.
■ Channel
Shows the block number and the channel number for the selected channel.
■ Recipe function
Selects whether or not to use the Recipe function.
■ Recipe Name
Enter the name for the Recipe function to differentiate the channel. The maximum number is 40 characters. The
default is “Recipen”. (n: 4 digit sequential number)
■ Top Device Address
Specifies the start device address of the destination device addresses for recipe values and the source device
addresses for values of device addresses.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
The specified device addresses are configured sequentially from the number 1 in Data List on the Data tab.
■ Data Type
Selects the type of data for recipe values to write and values of device addresses that are read. For details, refer to
Chapter 2 “1.1 Available Data” on page 2-1.
■ Number of Data
Specifies the number of source or destination device addresses starting with the device address configured by Top
Device Address.
The sequential device addresses from the start address for the number of configured device addresses is displayed in
Settings on the Data tab.
The amount of data that can be set varies based on the data type. When UBIN16(W), BIN16(I), or BCD4(B) is
selected for Data Type, up to 8192 items of data can be configured. When UBIN32(D), BIN32(L), BCD8(EB), or
Float32(F) is selected, up to 4096 items of data can be configured.
■ Display Type
Selects the display type for Data in Data List configured on the Data tab as Decimal or Hexadecimal.
Values when saving data to a recipe file are decimal.
Block Number: Shows the block number for the channel selected in Settings.
Channel Number: Shows the channel number for the channel selected in Settings.
Enable: Writes recipe values to device addresses, reads values of device addresses and saves them to
the external memory device as a recipe file.
Disable: The Recipe function is not used.
