5 User Communication

3-18 WindO/I-NV4 User’s Manual

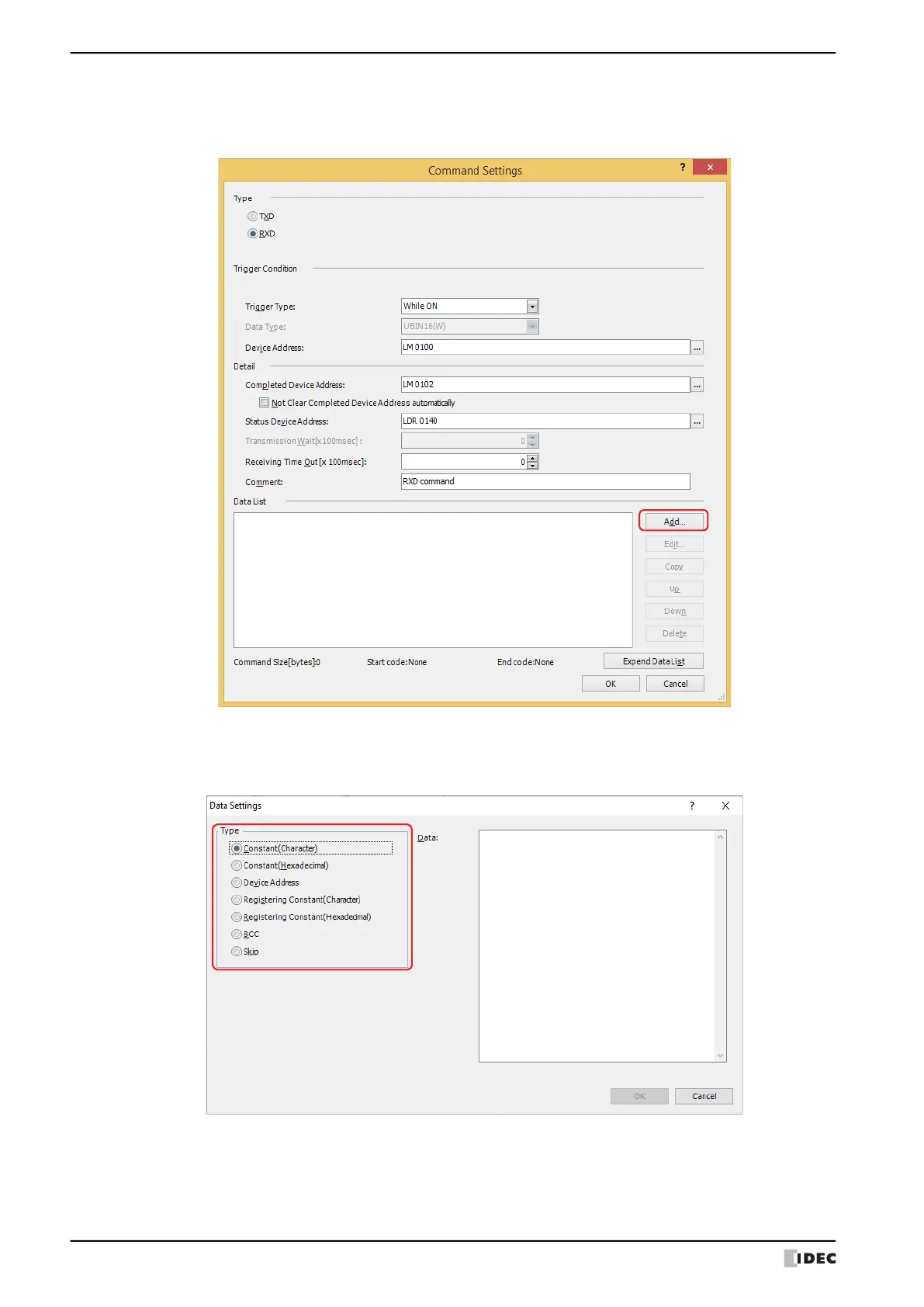

Set data for receive command.

Click Add under Data List.

The

Data Settings

ialog box is displayed.

Select data type in Type.

Data setting items are displayed.

For details on receive command, refer to “Receive (RXD) Command” on page 3-62.

Specify the data, and then click OK.

The data configured in Data List on the Command Settings dialog box is displayed.
