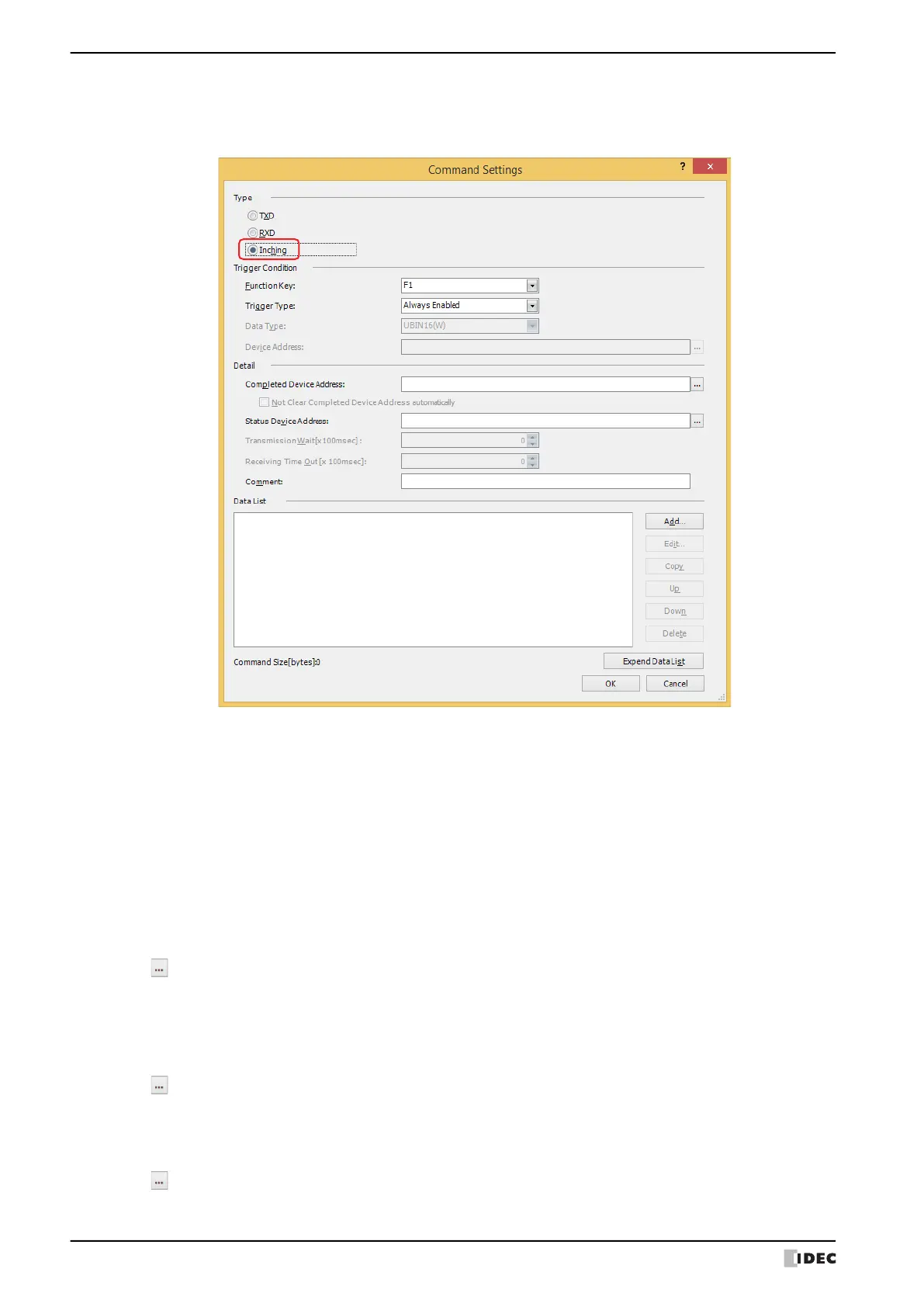

Select Inching in Type.
Specify the transmitted data for the inching function to the external device connected to the MICRO/I and the
conditions for transmitting data.
12
With Function Key under Trigger Condition, select the function key (F1 to F12) to which the command will be
assigned.
The function key is the switch on both sides of the screen of the HG1P.
13
Select the condition to transmit data in Trigger Type under Trigger Condition from the following.
■ Always Enabled
Data is always transmitted at the specified execution interval while a function key is pressed.
■ While satisfying the condition
Data is transmitted at the specified execution interval while a condition is satisfied.
Specify the conditional expression in Condition and select the data type handled by the conditional expression in
Data Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expressions configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.
For details on data types, refer to Chapter 2 “1.1 Available Data” on page 2-1.
14
Specify the bit device or the bit number of the word device for reporting that data transmission was successfully
completed in Completed Device Address under Detail.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
15
Specify the destination word device for the transmitted data size and error information in Status Device Address
under Detail.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
