Enter a comment of the command for the inching function in Comment under Detail.

The maximum number is 40 characters.

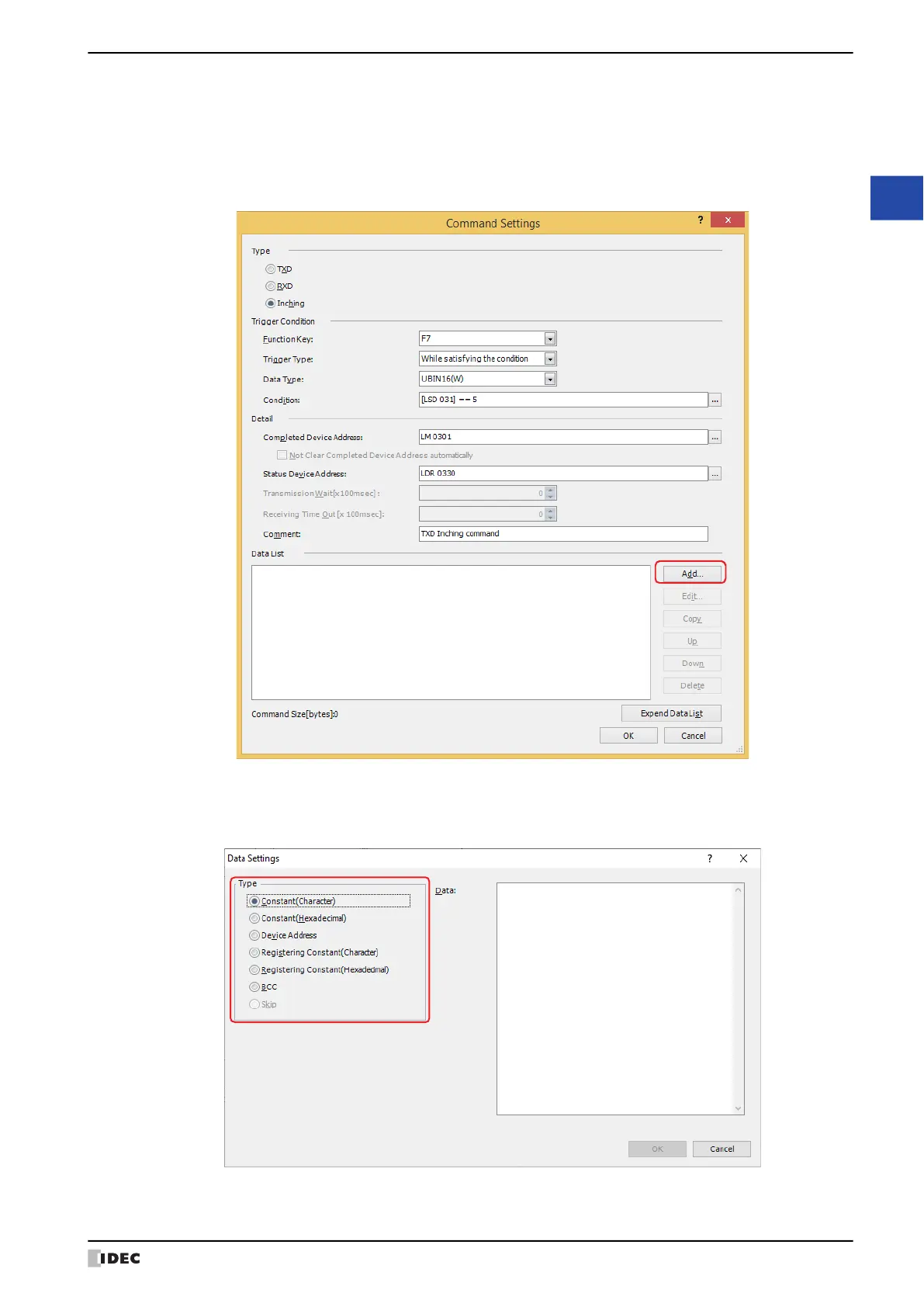

Set the command data for the inching function.

Click Add under Data List.

The Data Settings dialog box is displayed.

Select data type in Type.

Data setting items are displayed.

For details on transmission command, refer to “Transmission (TXD) Command” on page 3-49.
