5 User Communication
3-26 WindO/I-NV4 User’s Manual
19

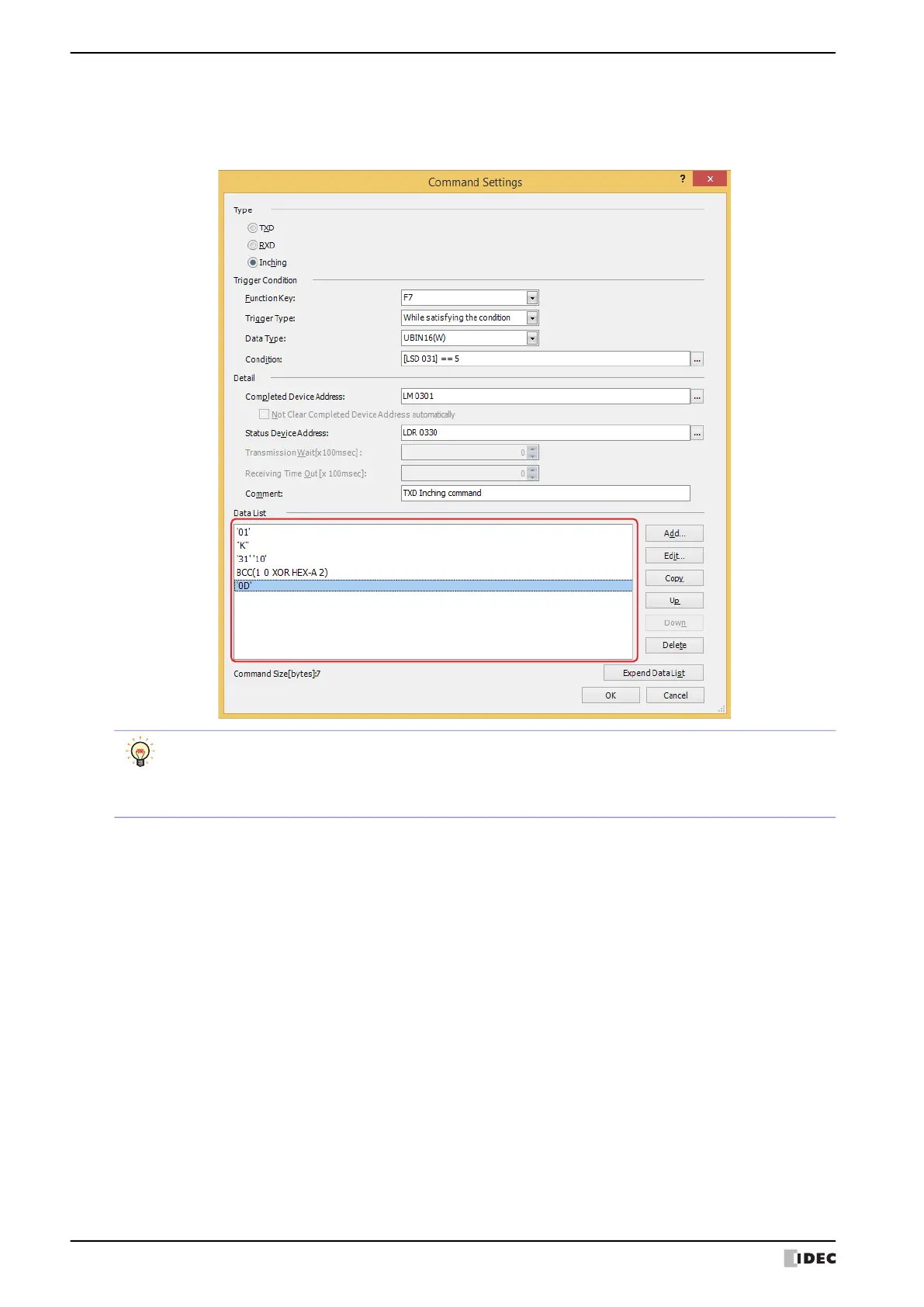

Set the data, and then click OK.
The data configured in Data List on the Command Settings dialog box is displayed.
20
Repeat steps
17
through
19
to set all the command data for the inching function.
21
Click OK.
The command for the inching function configured in Command List and Data List on Project Settings dialog box is
displayed.
To add a command for inching function, repeat steps
10
through
20
.
To add a transmission command, repeat steps
8 through
19
of “Using Transmission Command and Receive
Command”.
To add a receive command, repeat steps
20
through
29
of “Using Transmission Command and Receive Command”.
• The data are displayed in Data List in the order they were set. To change the order of data, select data,
and then click Up or Down to shift it.
• Click Expand Data List to hide Type, Trigger Condition and Detail, the number of the data displayed
in Data List will increase.
To Next Page
