3 FTP Client Function
28-32 WindO/I-NV4 User’s Manual

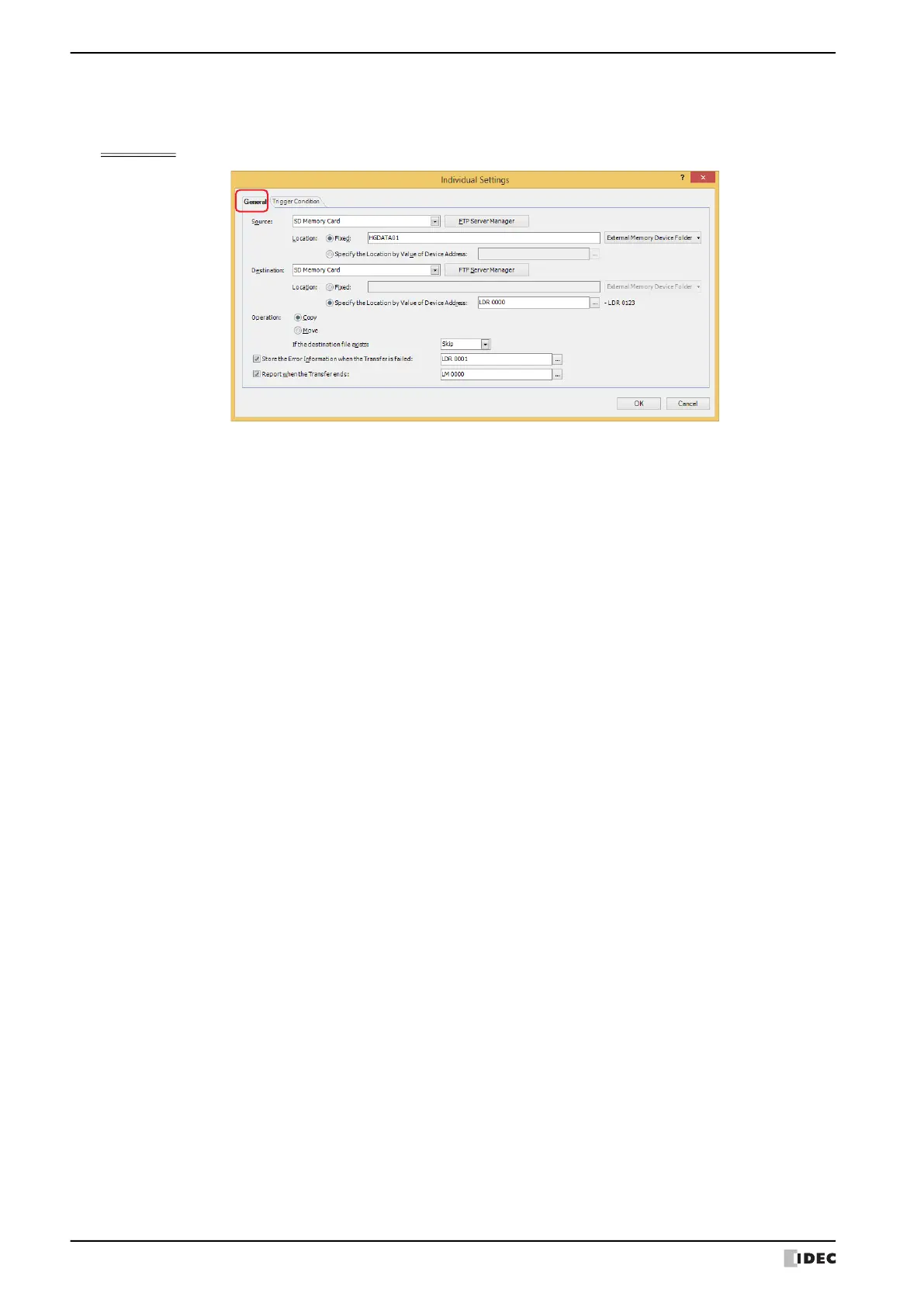

● Individual Settings Dialog Box
Registers or changes the settings for the selected number.
General Tab
■ Source
Select the source external memory device or the FTP server where the files to be copied or moved are stored from the
following items.
SD Memory Card
*1
, USB Flash Drive
*2
, USB1
*3
, USB2
*3
, (FTP server)
The No.+.(period)+Server Name of the FTP server specified in the FTP Server Manager is displayed.
Example: No. is 1 and Server Name is TestServer1
1.TestServer1
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F only
*2 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
*3 HG2J-7U only
FTP Server Manager: The settings of FTP server can be added or changed. Click this button to display the FTP
Server Manager. For details, refer to “FTP Server Manager” on page 28-27.
Location: Selects the method to specify the save location of source files to copy or move.
Fixed: Specify the save location of the target folder or file path as a string. The maximum number is 247
characters. Only alphanumeric characters and symbols can be used. Path delimiters vary based on
the model.
Example: Copy or move files to the “ALARMLOG” folder under “HGDATA01” folder on the external
memory device
HG2J-7U: HGDATA01/ALARMLOG
HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P: HGDATA01\ALARMLOG
External Memory Device Folder: Click this button to enter the configured content of the External
Memory Device Folder in the External Memory Device tab
on the Project Settings dialog box.
Click on ▼ to the right on the External Memory Device
Folder button, and then select the item on the list to enter the
subfolder.
To Next Page
