● Installation

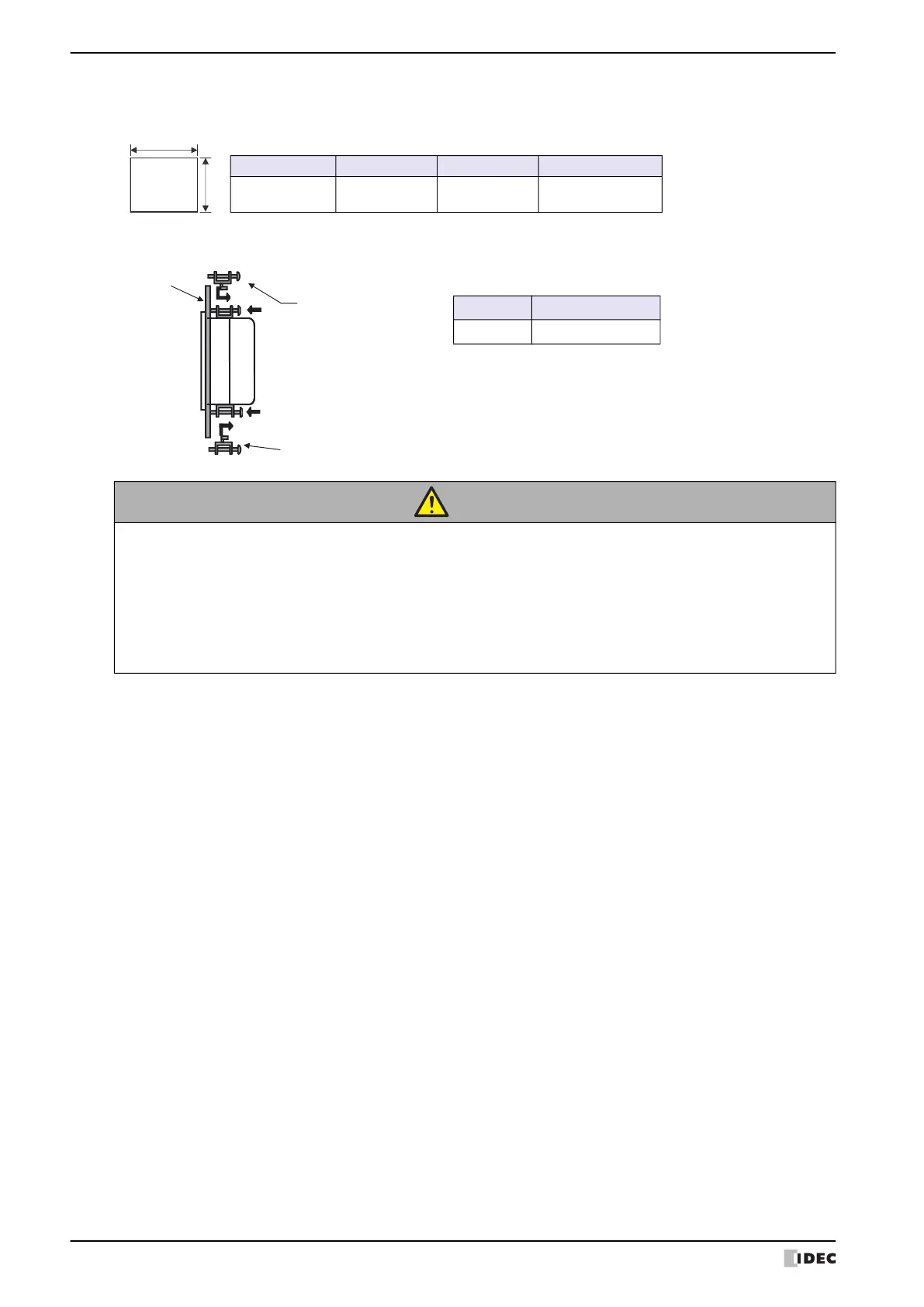

• Make a panel cut-out on the panel with the dimensions shown below.
• Use the attached mounting clips to tighten the screws evenly to mount panel: screws must be applied on total of
four places with the specified torque.
CAUTION
• Mount the HG2J-7U on a rigid panel.
• Do not tighten with excessive force, otherwise the HG2J-7U may warp the display, or impair the
waterproof characteristics.
• If the mounting clips are tightened obliquely to the panel, the HG2J-7U may fall off the panel.
• When installing the HG2J-7U into a panel cut-out, make sure that the gasket is not twisted.
Especially when re-installing, take special care because any twists in the gasket will impair the
waterproof characteristics.
B
A
Unit: mm
Type No. A B Panel Thickness
HG2J-7U 118.6
+1.0
0
176.6
+1.0
0
1.0 to 5.0
Unit : N∙m
Type Specified Torque
HG2J-7U 0.5 to 0.6
Panel
Mounting Clip
Mounting Clip
