MICRO/I Specifications

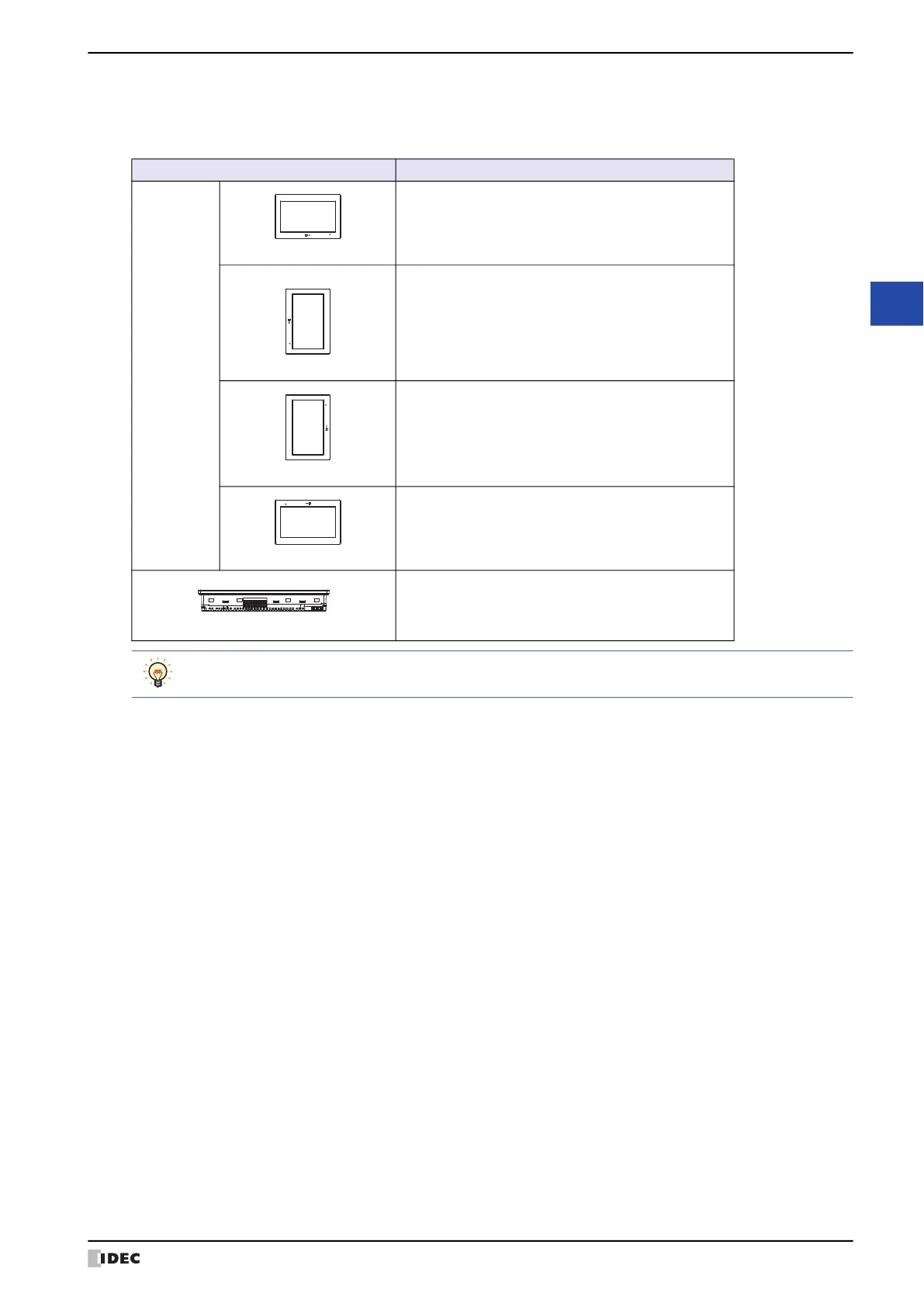

● HG2J-7U Orientation
The HG2J-7U is designed to install on a vertical landscape. The operating ambient temperature and the output
current of the USB interface (total of USB1 and USB2) are limited as shown in the table below.
Orientation Operating Temperature: Output current
Vertical
Landscape
-20
+45
+55
to
to
to
+45 ℃
+55 ℃
+60 ℃
:
:
:
1000mA
500mA
150mA
Portrait (Clockwise)
-20
+40
+55
to
to
to
+40 ℃
+55 ℃
+60 ℃
:
:
:
1000mA
500mA
150mA
Portrait (Counter Clockwise)
-20
+40
+55
to
to
to
+40 ℃
+55 ℃
+60 ℃
:
:
:
1000mA
500mA
150mA
Landscape (Rotate 180°)
-20
+55
to
to
+55 ℃
+60 ℃
:
:
500mA
150mA
Horizontal
-20
+40
+55
to
to
to
+40 ℃
+55 ℃
+60 ℃
:
:
:
1000mA
500mA
150mA
• When installing the HG2J-7U in a diagonal, the limitations are same as a horizontal.
• Confirm the visibility of the display in a final installation.
