WindO/I-NV4 User’s Manual 35-37
3 HG4G/3G, HG2G-5F
35
MICRO/I Specifications

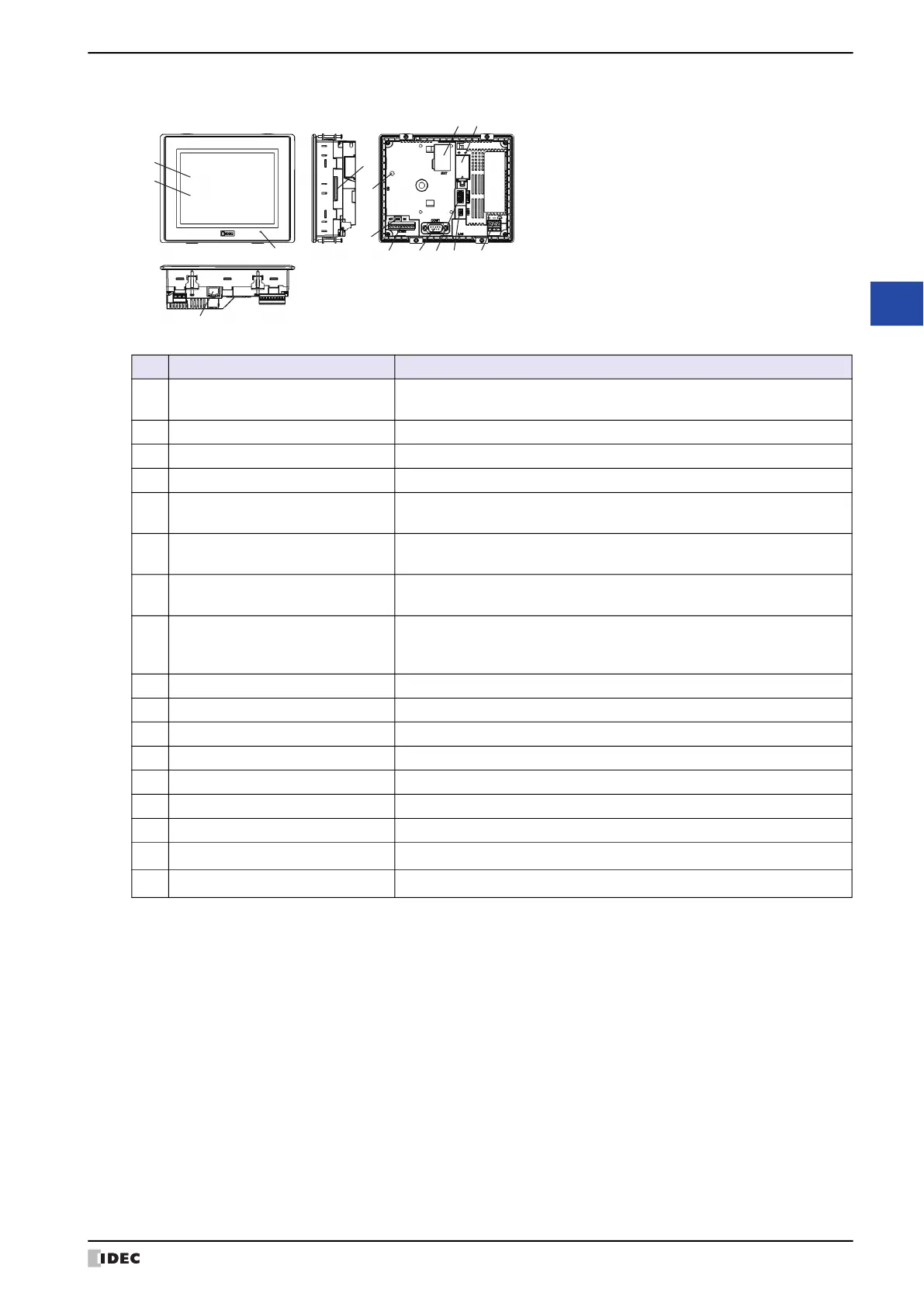

■ HG2G-5F (5.7inch)
*1 This is applicable for HG4G/3G with a video interface only.
No. Name Description
(1) POWER LED
Green (lit) : Normal Operation (Power is ON.)
Not lit : Power is off.
(2) Display
(3) Touch Panel
(4) Power Supply Terminal Connector : Terminal Block 3-pin (Screw fastened type)
(5) Serial Interface (COM2)
RS232C, RS422/485 Connector : Terminal Block 9-pin (Screw fastened type)
Maximum cable length: 15m (RS232C), 1,200m (RS422/RS485)
(6) Serial Interface (COM1)
RS232C, RS422/485 Connector : D-sub 9-pin
Maximum cable length: 15m (RS232C), 1,200m (RS422/RS485)
(7)
Audio Interface (AUDIO OUT)
*1
LINE OUT (Stereo) Recommended minimum load: 10kΩ
Connector : Mini Jack (φ3.5mm)
(8) Ethernet Interface (LAN)
IEEE802.3u 10BASE-T/100BASE-TX Connector : RJ-45
(With Auto MDI/MDI-X function)
Maximum cable length: 100m
(9) USB Interface (USB1) USB2.0 (Device) Connector : Mini-B
(10) USB Interface (USB2) USB2.0 (Host) Connector : Type A Output current : 5V 500mA
(11) Memory Card Interface (SD) For SD memory card
(12) SD Memory Card Access Lamp
(13) Expansion Module Interface (EXT) For IDEC MICROSmart Expansion Modules
(14) Battery Cover
(15) Terminating Resistor Selector Switch For COM2 RS422/485 interface
(16)
Audio Interface (AUDIO IN)
*1
LINE IN (Stereo) Connector : Mini Jack (φ3.5mm)
(17)
Video Interface (VIDEO IN)
*1
NTSC/PAL Connector : Pin Jack
(2)
(3)
(1)
(11)
(8)
(12)
(13)(14)
(15)
(5) (6) (10) (9) (4)
