WindO/I-NV4 User’s Manual 35-53
3 HG4G/3G, HG2G-5F
35
MICRO/I Specifications

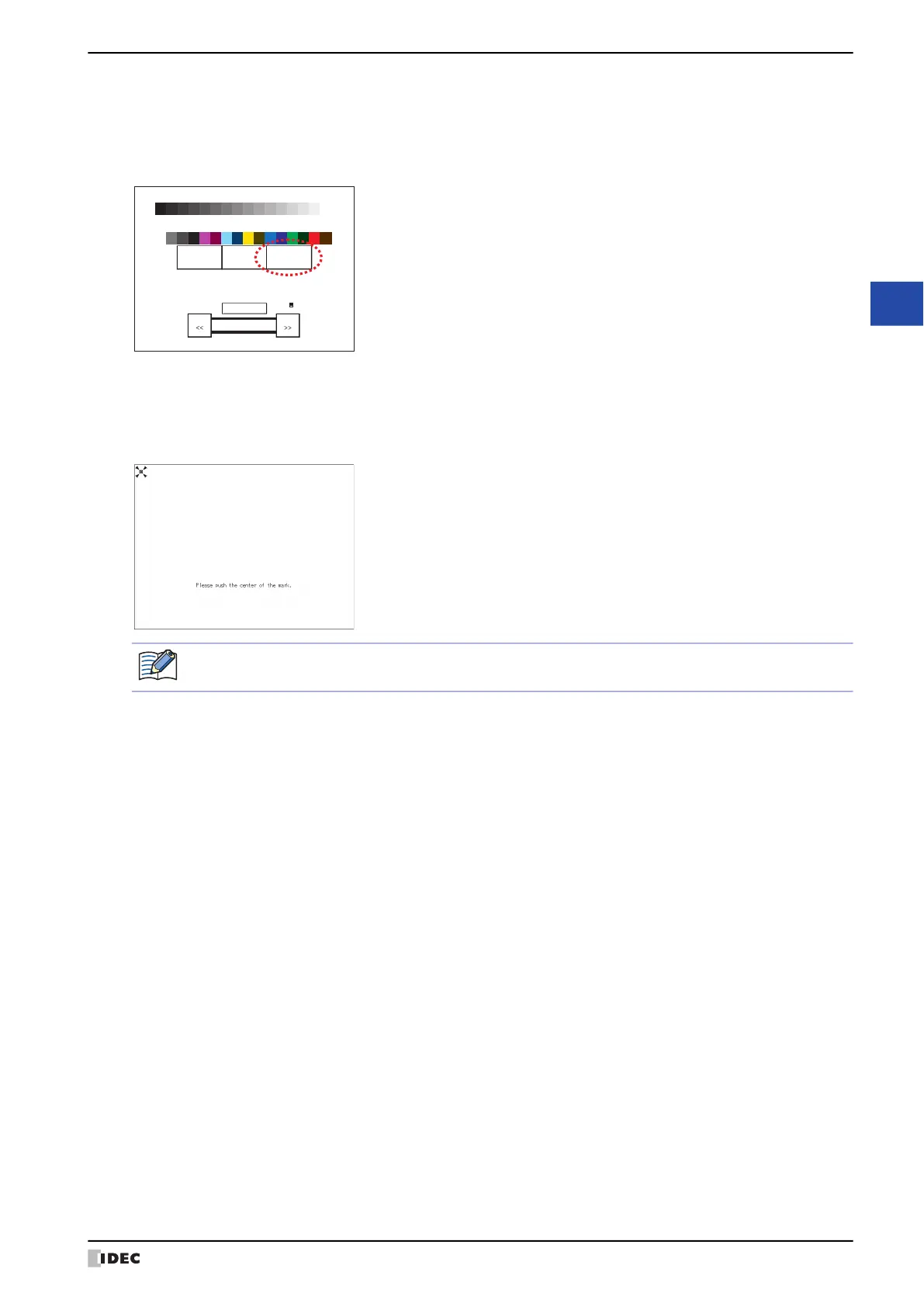

● Adjusting the Touch Panel
A gap may be caused in the operation accuracy of the touch panel by the secular distortion, etc. Adjust the touch
panel according to the following procedure when there is a gap in the operation of the touch panel.
1 Press the Main Menu on the Top Page in System Mode. The Main Menu Screen appears.
2 Press in order of Initial Setting, Initialize, Touch Panel Adjust. The confirmation screen appears and asks
“Adjust Touch Panel setting?”. Press Yes, then the Touch Panel Adjust screen appears.
3 Press the center of the X mark, then the position of the mark changes one after another. Press five marks
sequentially.
4 When normally recognized, the confirmation screen of 2 is restored.
At procedure
3, when pressing a point away from the center of the X mark, a recognition error will result. Then the X
mark returns to the initial position, then repeat the procedure of
3 again.
MAC Address 00:03:7B:F0:12:A8
IP Address 192.168.0.1(DHCP)
2010/OCT/14/THU 14:56:44
IDEC HG G SERIES
SYSTEM MODE TOP PAGE
ENG/JPN
Run Offline Main Menu
Press the center of the X mark.
This will ensure the accuracy of the touch panel operation.
To Next Page
