WindO/I-NV4 User’s Manual 3-91

6 Sub Host Communication

Communication

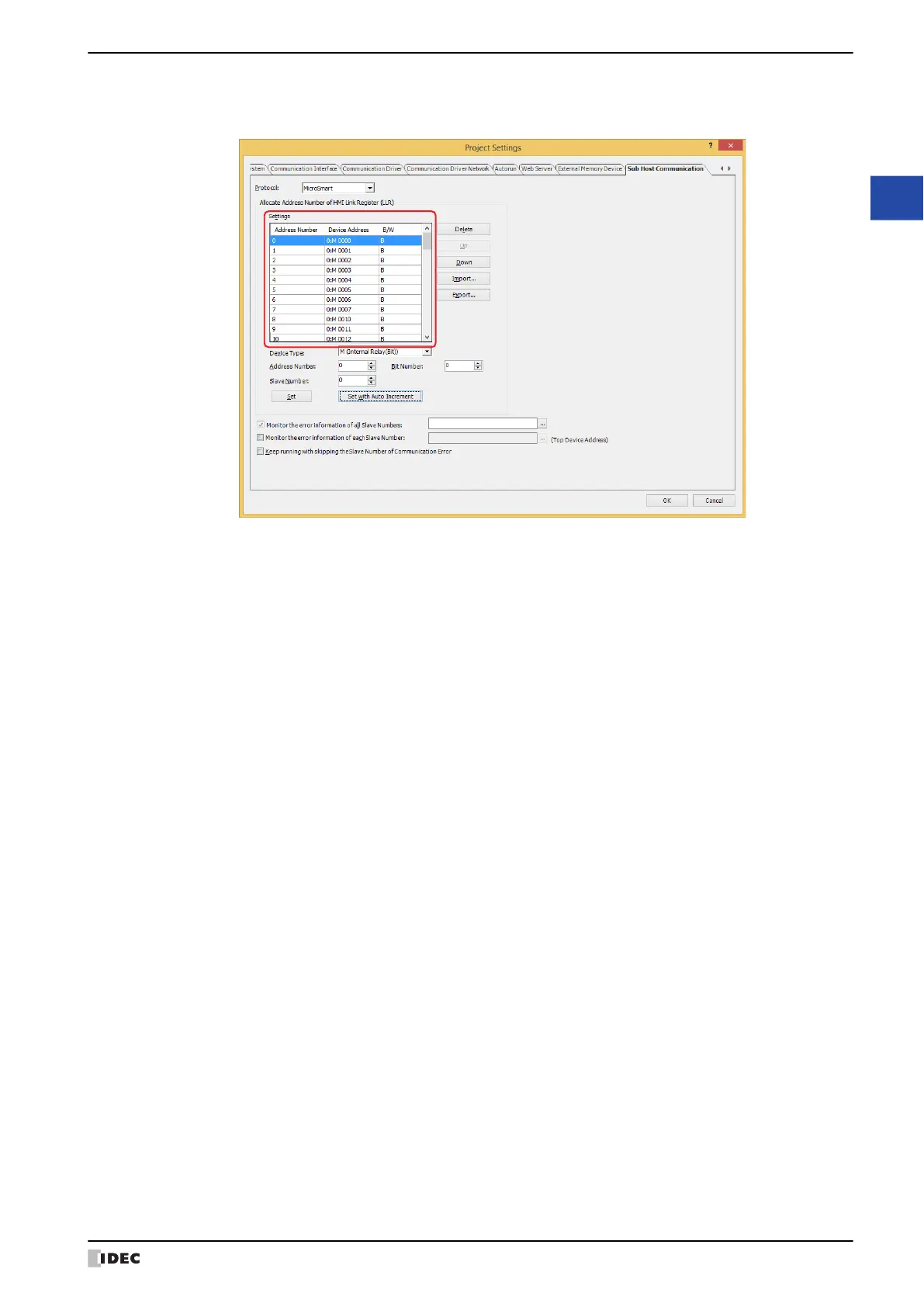

7 Allocate the external device addresses to the HMI Link Registers (LLR) used with Address Number in Settings.

For details, refer to Chapter 4 “3.7 Sub Host Communication Tab” on page 4-60.

8 Click OK.

This concludes configuring Sub Host Communication for communication interfaces.
