6 Sub Host Communication

3-90 WindO/I-NV4 User’s Manual

4 Configure the Interface Settings.

■ HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F

For details, refer to Chapter 4 “When COM1, COM2, COM2(RS232C), or COM2(RS422/485) is selected under Interface

Configuration” on page 4-39.

■ HG2G-5T, HG1G/1P

For details, refer to Chapter 4 “When SERIAL1(RS232C), SERIAL1(RS422/485), COM(RS232C), or COM(RS422/485) is

selected under Interface Configuration” on page 4-40.

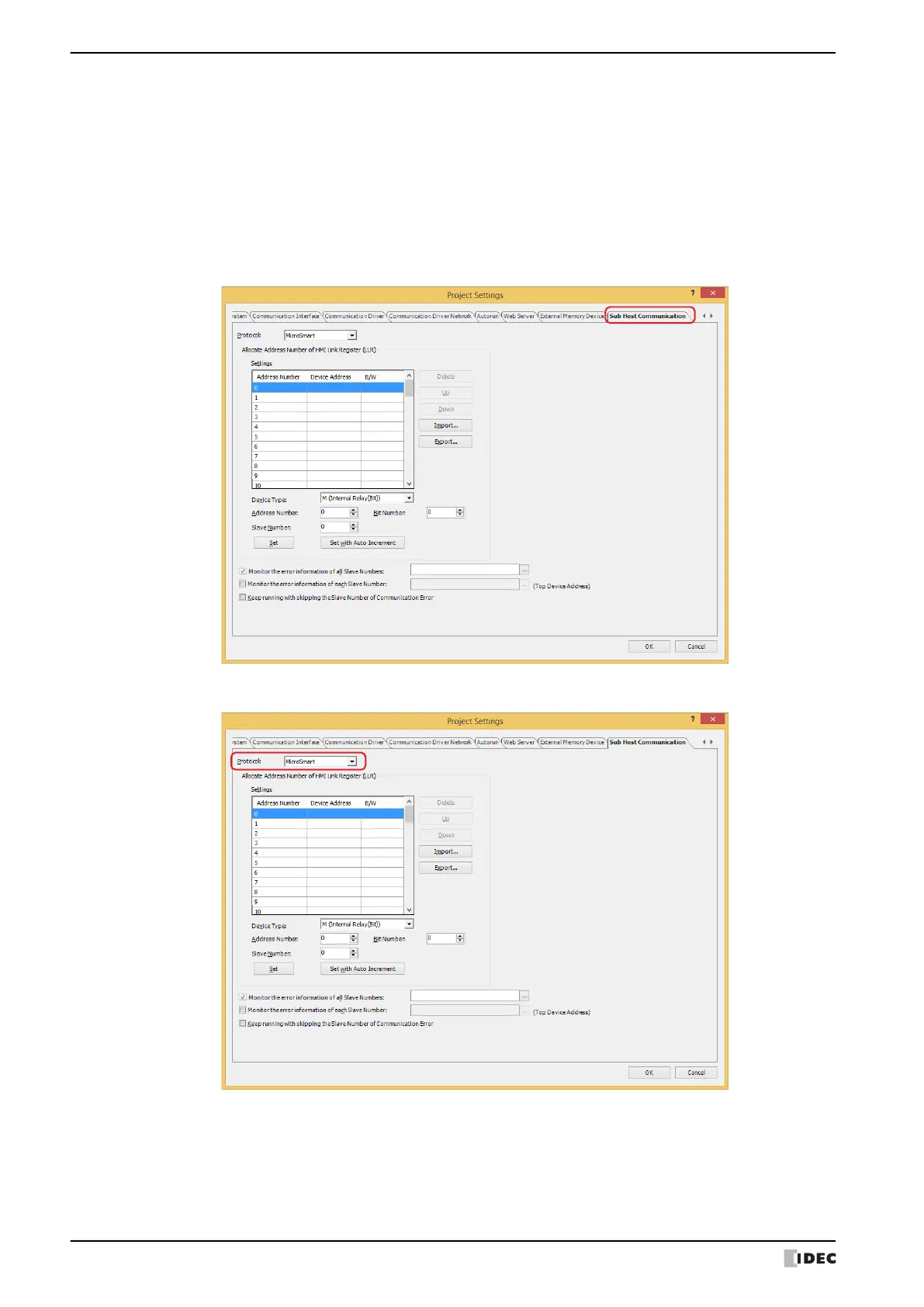

5 Click the Sub Host Communication tab.

6 Selects the protocol as MICROSmart or Modbus RTU Master in the Protocol.

*1 This is applicable for models with a serial interface (RS422/485) only.
