1 Bit Button
8-6 WindO/I-NV4 User’s Manual
■ Write
*1
Specify the number of bit devices (1 to 64) at the destination.
This setting is enabled only if Action Mode is set to Set or Reset.
Example: This fills a contiguous block of bit devices with the same value.
If the bit number in a word device is specified, the same value is written to same bit number of contiguous
word devices.
■ Source Data
Specifies the device address that stores the data to be written.
This setting is enabled only if Action Mode is set to Move.
Example: This button writes the values in a contiguous block of bit devices to a contiguous block of device addresses
at the destination.
*1 Advanced mode only
1M0
1M1
1M2
1M3
1M4

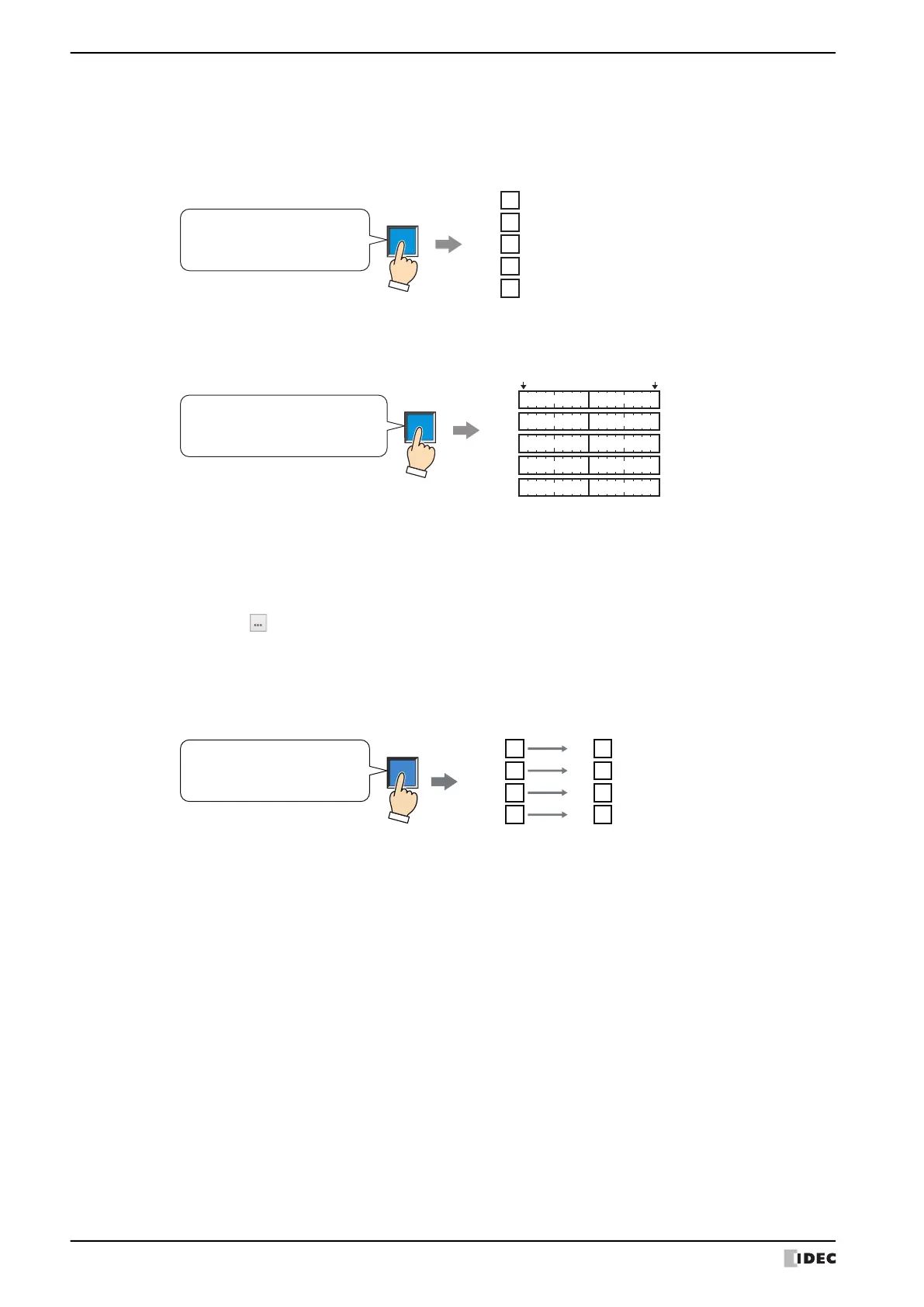

Action Mode: Set
Write: 5
Destination Device Address: M0
bit bit
15 0
1D0
D1
D2
D3
D4
1
1
1
1
Action Mode: Set
Write: 5
Destination Device Address: D0-15
Device Address: Specify the source bit device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-70.
Transfer: Specify the number of bit devices (1 to 64) to transfer.
Device Address: LM0
Transfer: 4
1LM0
0LM1
0LM2
1LM3
Destination Device Address: M0
1M0
0M1
0M2
1M3
