5 Key Button
8
Buttons

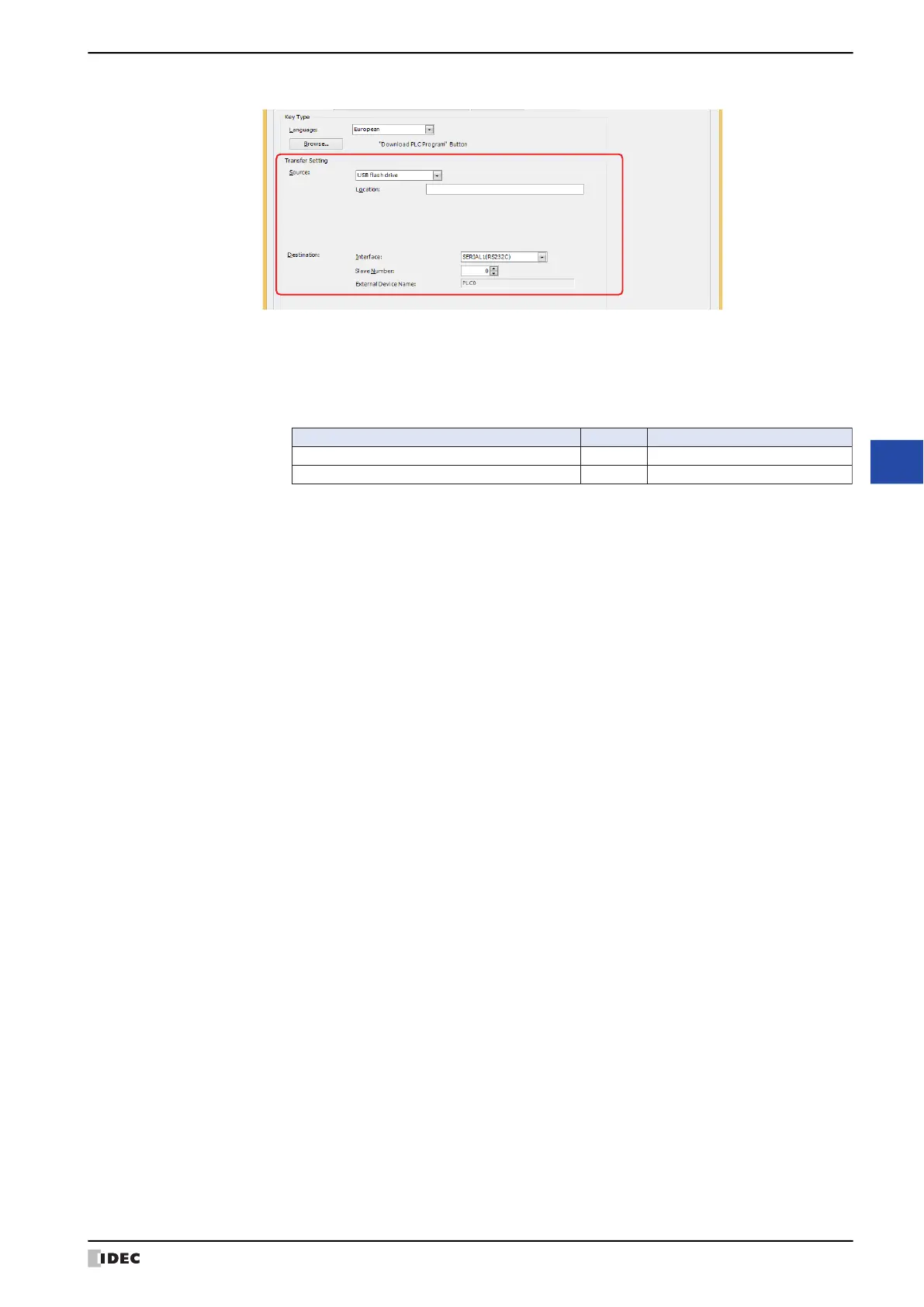

Download PLC Program is selected.
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F only
*2 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
*3 HG2J-7U only
Source: Select the external memory where the PLC program (ZLD Project File) to be transferred is stored:
SD Memory Card
*1
, USB Flash Drive
*2
, USB1
*3
or USB2
*3
.
Location: Specify the location of the ZLD Project File(.zld). The maximum number is 247 characters.
Only alphanumeric characters and symbols can be used. Path delimiters and characters that
cannot be used vary based on the model.
Example: To set “LDR_PROGRAM.ZLD”, a ZLD Project File, to be saved in folder “LDRDATA”
of an external memory device:
HG2J-7U: LDRDATA/LDR_PROGRAM.ZLD
HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P: LDRDATA\LDR_PROGRAM.ZLD
Destination: Specify the destination PLC connected to the MICRO/I. The PLC type is configured in the Project
Settings dialog box, on the Communication Driver Network tab. For details, refer to Chapter 4
“3.4 Communication Driver Network Tab” on page 4-52.
Interface: Select the communication interface in which the MICRO/I is connecting to the
download destination PLC from serial interface or Ethernet. For details, refer to
Chapter 4 “Interface Configuration” on page 4-35.
If serial interface is selected for Interface.
Slave Number: Specify the slave number of the download destination PLC (0 to 31).
External Device Name: The name of the specified PLC is displayed here.
If Ethernet is selected for Interface.
Select from the following method:
Specify External Device ID:
Specify the External Device ID (0 to 31) of the destination PLC. This is the
External Device ID number set in the Project Settings dialog box, on
the Communication Driver Network tab.
External Device Name: The name of the specified PLC is displayed here.
Specify IP Address: Specify the IP address and port number of the destination PLC.
Model
HG2J-7U
HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P
Delimiter Characters that cannot be used
" # $ & ' ( ) * : ; < > ? \ ` | ~
" * : ; < > ? |
/
\
