5 Key Button

8-104 WindO/I-NV4 User’s Manual

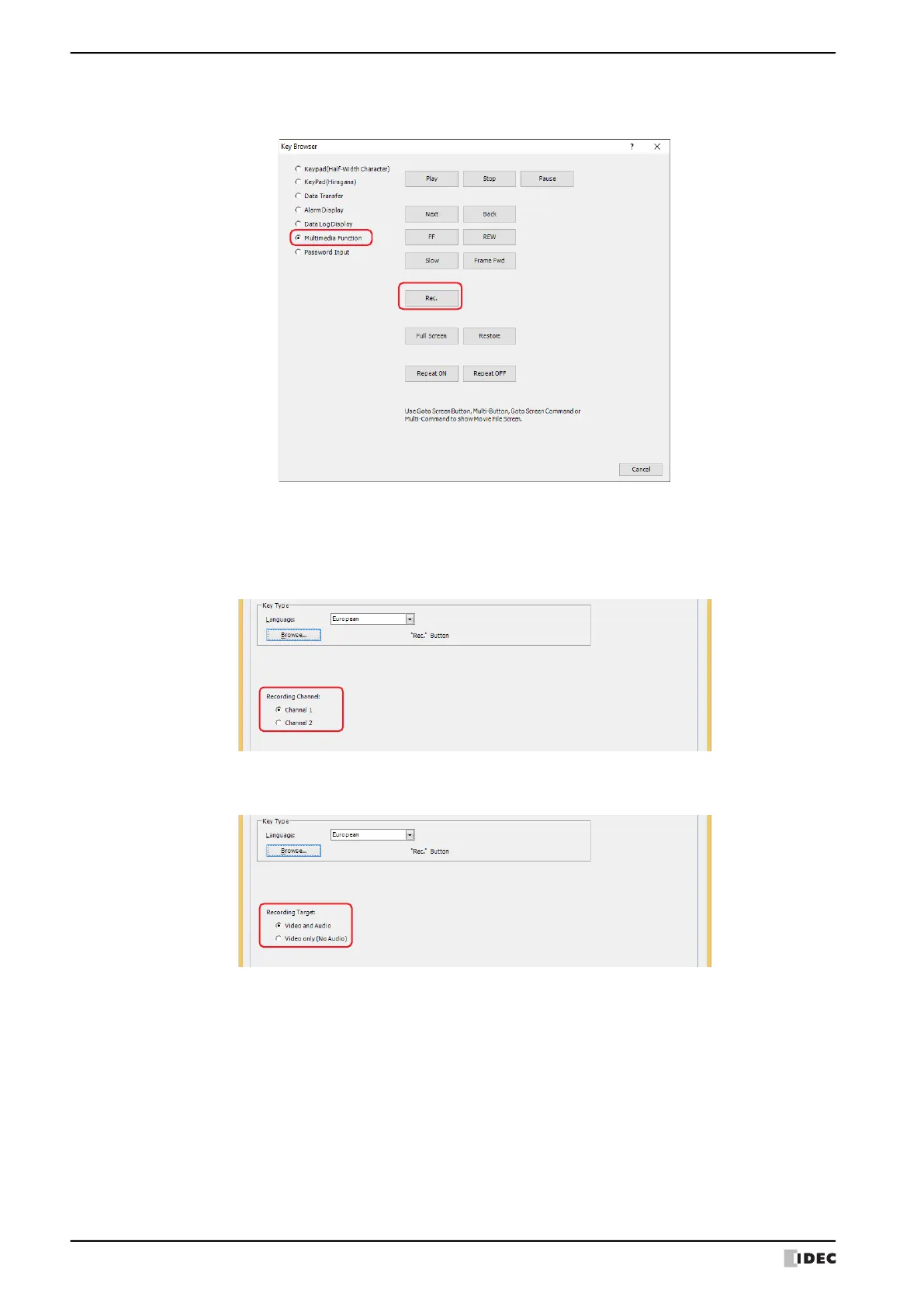

5 Select Multimedia Function and click Rec.

You are returned to the Properties of Key Button dialog box.

6 Select a recording channel

or a recording target

■ Recording Channel

Selects Channel 1 or Channel 2 to record a video only (no audio) out of the signals input from the device. This

setting is enabled only if Rec. was selected using the Key Browser.

■ Recording Target

In the signals input from the device, select Video and Audio or Video only (No Audio) as the recording target.

7 Click OK.

Close the Properties of Key Button dialog box.

8 Repeat steps 1 through 4.

*2 HG5G/4G/3G-V only

*3 This is applicable for HG4G/3G with a video interface only.
