● Picture Manager
Pictures used in pictures of part diagrams and drawings are managed using Picture Manager.
■ (Rename picture)
Renames the picture selected in the picture list. The maximum number is 256 characters.
■ (Delete)
Deletes the picture selected in the picture list. Pictures that are used in project or parts cannot be deleted.
■ (Reduce)
Deletes all the pictures not used in the project from the pictures saved in the picture list.
■ (Check All)
Selects all of the check boxes for the pictures registered to the picture list.
■ (Reset)
Clears all of the check boxes for the pictures registered to the picture list.
■ (Save Picture Files in External Memory Device)
Saves the image files for the pictures selected with the check boxes to external memory device.
Click this button to display the Select Drive dialog box.
■ (Category)
The name of the category is displayed.
Selects a category to save to when saving pictures.
When selecting a picture, select the category in which the arranged picture is saved.
The only default category is "Pic_Lib." To add a category, click Configure, and then click (New Category) in the
Category dialog box.
■ Configure
Opens the Category dialog box. You can add or change the category to save. For details, refer to “Category Dialog
Box” on page 2-31.

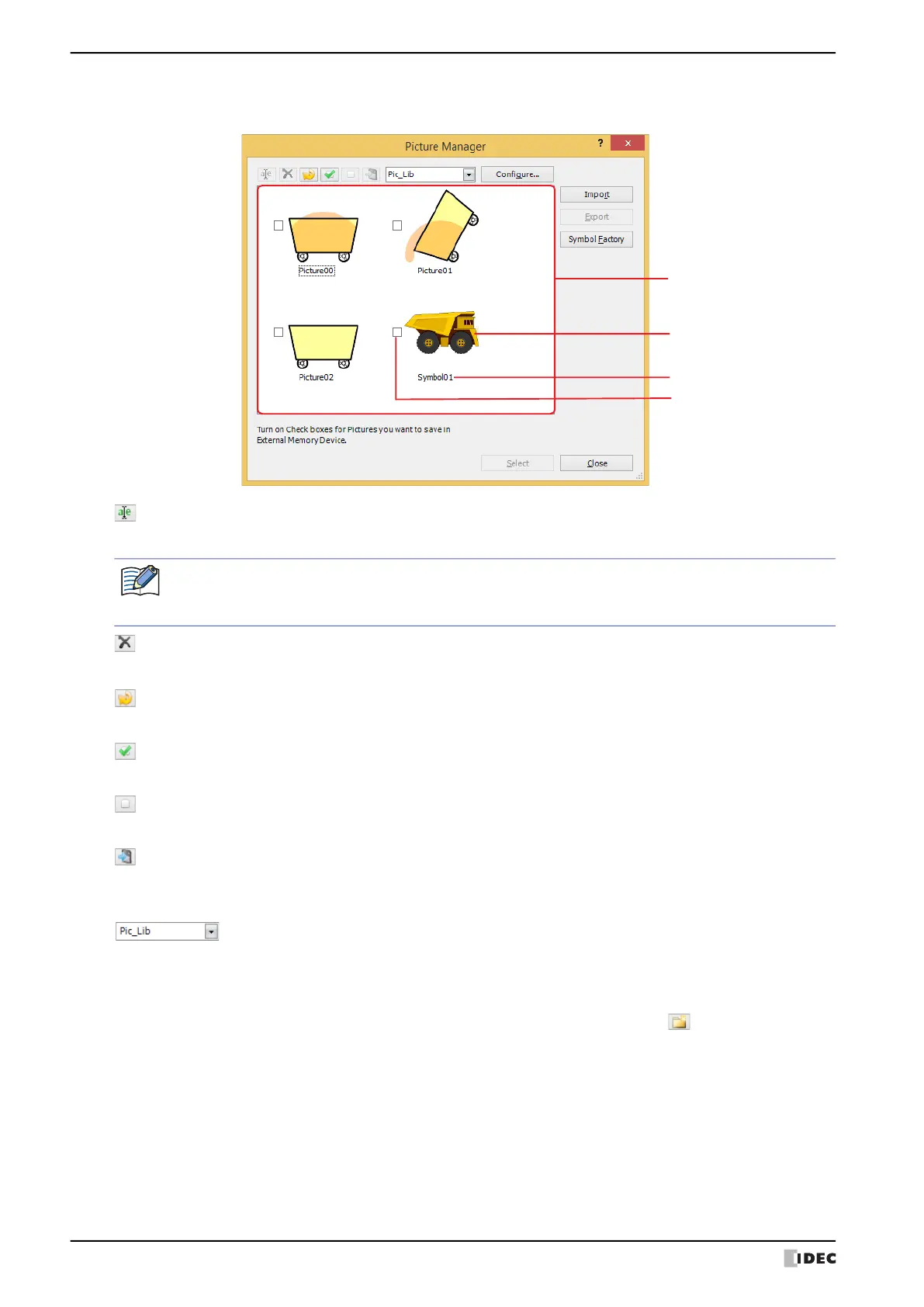

(Picture List)
(Image)
(Picture Name)
(Check box)
You cannot use the following characters in the picture name.
HG2J-7U: " # $ & ' ( ) * / : ; < > ? \ ` | ~
HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P: " * / : < > ? \ |
