WindO/I-NV4 User’s Manual 10-109
5 Message Display
10
Data Displays

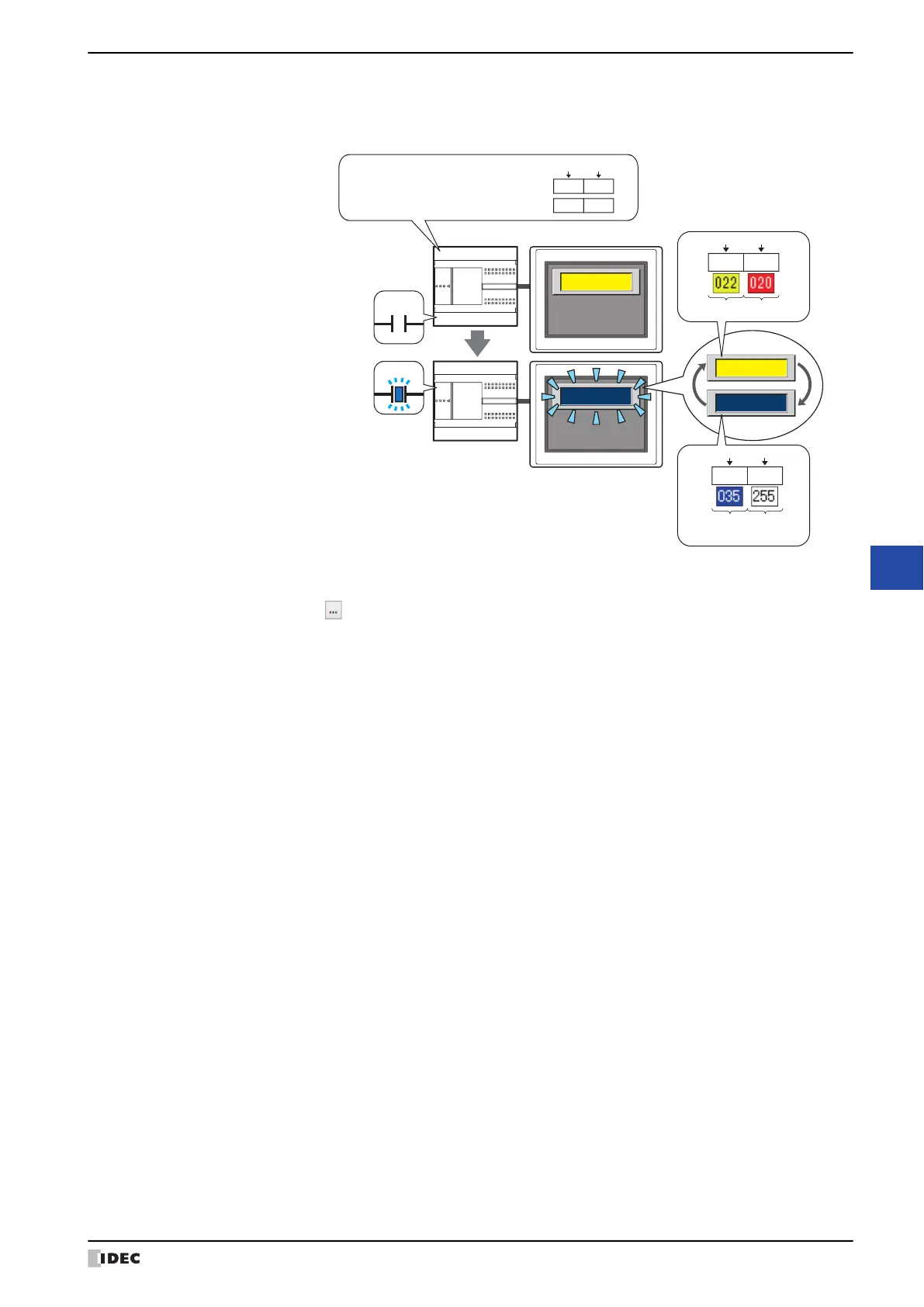

• The Change Display Colors check box is selected, Specify Color by Device Address is selected, then the
colors that correspond to the values stored in the device addresses for Specify Color by Device Address and
this device address number+1 are alternately displayed.
Trigger Device Address: Specifies the bit device or the bit number of the word device that will be used to trigger
flash.
Click to display the Tag Editor. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-70.
Flash intervals are set in the Flashing Cycle on the System tab in the Project Settings
dialog box.
Text Color: Selects the color (color: 256 colors, monochrome: 16 shades) of text when flashing.
Click this button to display the Color Palette. Select a color from the Color Palette.
This option can only be configured when the Change Display Colors check box is cleared
or selected and Specify Color is selected.
Plate Color: Selects the plate color (color: 256 colors, monochrome: 16 shades) when flashing.
Click this button to display the Color Palette. Select a color from the Color Palette.
This option can only be configured when the Change Display Colors check box is cleared,
or the check box and Specify Color are selected, and Standard is selected for Image
Type on the View tab.
HGSERIES
HGSERIES
Flashing
MICRO/I
External device
HGSERIES
HGSERIES
Lower byteUpper byte
D0
0x14
0x16
Lower byteUpper byte
D1
0xF7
0x23
Text colorPlate color
Text color
when flashing
Plate color
when flashing
0
1
D0=
Lower byteUpper byte
0x140x16
D1=
0xF70x23
Trigger device
Device Address for
Specify Color by Device Address
Trigger device address
under Flash
Trigger device address
under Flash
Device Address+1
