WindO/I-NV4 User’s Manual 10-111
5 Message Display
10
Data Displays
■ Data Type
Selects the data type to be handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Device Address
Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.
■ Comment
Used for entering comments about trigger conditions. Maximum number is 80 characters.
■ While not satisfying the condition
Selects the operation of the part when the condition is not satisfied.

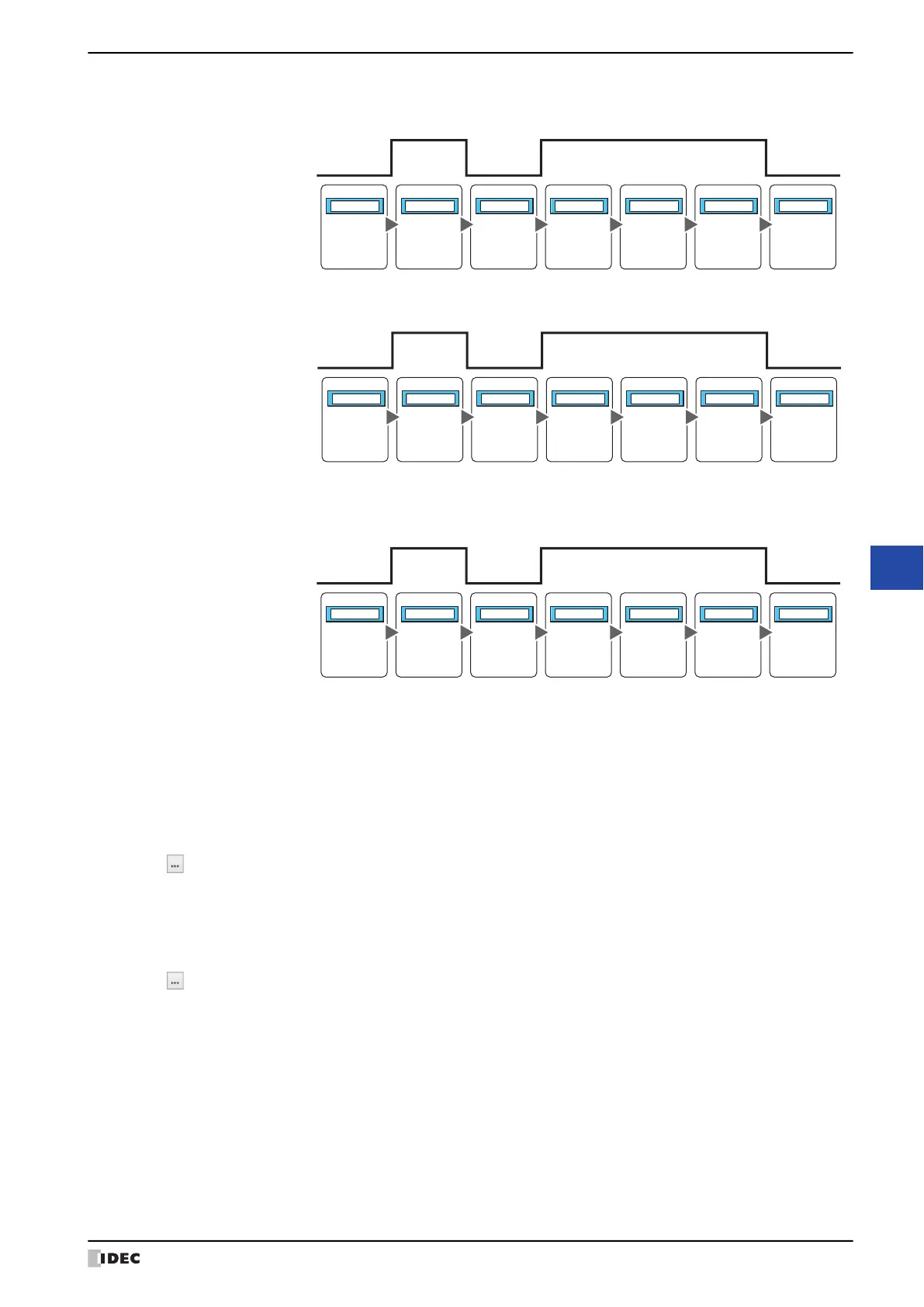

While ON: Enables the Message Display when the value of device address is 1.
Example: When While not satisfying the condition is Not display message.
While OFF: Enables the Message Display when the value of device address is 0.
Example: When While not satisfying the condition is Not display message.
While satisfying the condition:
Enables the Message Display when the condition is satisfied.
Example: When While not satisfying the condition is Not display message.
1
0
Show
message
Hide
message
Hide
message
Hide
message
HG SERIES
Show
message
HG SERIES
Show
message
HG SERIES
Show
message
HG SERIES
Value of
Device Address
Message Display
state
Value of
Device Address
1
0
Show
message
Hide
message
HG SERIES
Show
message
HG SERIES
Show
message
HG SERIES
Hide
message
Hide
message
Hide
message
Message
Switching Display
state
Show
message
Hide
message
Hide
message
Hide
message
HG SERIES
Show
message
HG SERIES
Show
message
HG SERIES
Show
message
HG SERIES
Message Display
state
Satisfied
Not satisfied
Condition
Not display message: The plate and flange are displayed, but the message is not displayed.
Not show Message Display: Hides the Message Display.
