WindO/I-NV4 User’s Manual 10-139
7 Alarm List Display
10
Data Displays
The messages are displayed according to the state of the bits.
■ Display Type
Selects whether or not to simultaneously display multiple messages.
■ Monitor Number of Displayed messages
Select this check box to count the number of displayed messages.
This option can only be configured when the New Message List check box is selected.

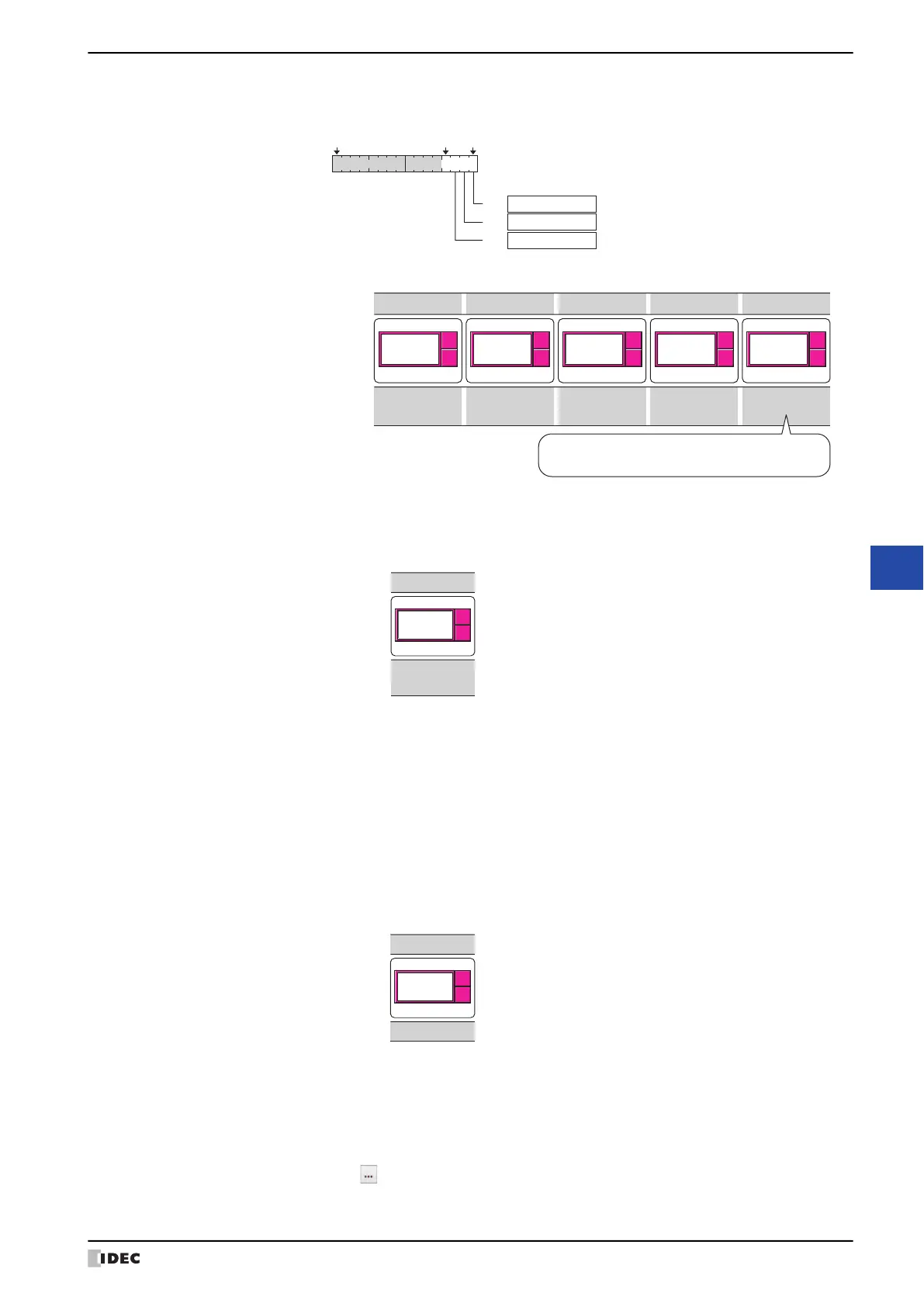

Example: When New Message List is selected and the bits of trigger device address D0 are allocated to the
following messages.
Trigger device address D0
bit15 bit0
bit3
ID1
Setting 1 : 100
ID2
ID3
Setting 2 : 200
Setting 3 : 300
Message
0001
Message to display
0110 0101
0111
0000
Display ID1 Display ID2, ID3 Display ID1, ID3 No message
Action
Display ID1, ID2,
ID3
Bit state of Trigger device address D0
Setting 1 : 100
Pg. Up
Pg. Dwn
Pg. Up
Pg. Dwn
Setting 2 : 200
Setting 3 : 300
Pg. Up
Pg. Dwn
Setting 1 : 100
Setting 3 : 300
Pg. Up
Pg. Dwn
Setting 1 : 100
Setting 2 : 200
Setting 3 : 300
Pg. Up
Pg. Dwn
If all bits in the device address are 0 or if a bit with no
associated message becomes 1, display nothing.
List: Simultaneously displays multiple messages.
Sort: Selects the display order when displaying multiple messages.
Old and New can only be configured when the Use Alarm Log Settings check box is selected.
Ascending: Sort from the smallest block number to the largest block number, and then from
the smallest channel number or message number to the largest number.
Descending: Sort from the smallest block number to the largest block number, and then from
the largest channel number or message number to the smallest number.
Old: Sorts the list in order from oldest to newest.
New: Sorts the list in order from newest to oldest.
One Line: Displays only a single message.
When multiple bits are 1, the message for the lowest order bit is displayed.
Message to display
0111
Action
Display ID1, ID2,
ID3
Bit state of Trigger device address D0
Setting 1 : 100
Setting 2 : 200
Setting 3 : 300
Pg. Up
Pg. Dwn
0111
Message to display
Display ID1
Action
Setting 1 : 100
Pg. Up
Pg. Dwn
Bit state of Trigger device address D0
(Destination Device Address): Specifies the word device to write the number of displayed messages to.
Click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-70.
