WindO/I-NV4 User’s Manual 10-149
7 Alarm List Display
10
Data Displays
■ Screen Number Setting Method
Selects the setting method for the screen numbers on the reference screen list.
■ (Reference Screen List)
Displays a list reference screen numbers and screen titles that have been set to messages.
■ Place on the Top Layer
Select this check box to display the parts on the top layer. The parts will have precedence when other drawings and
parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.

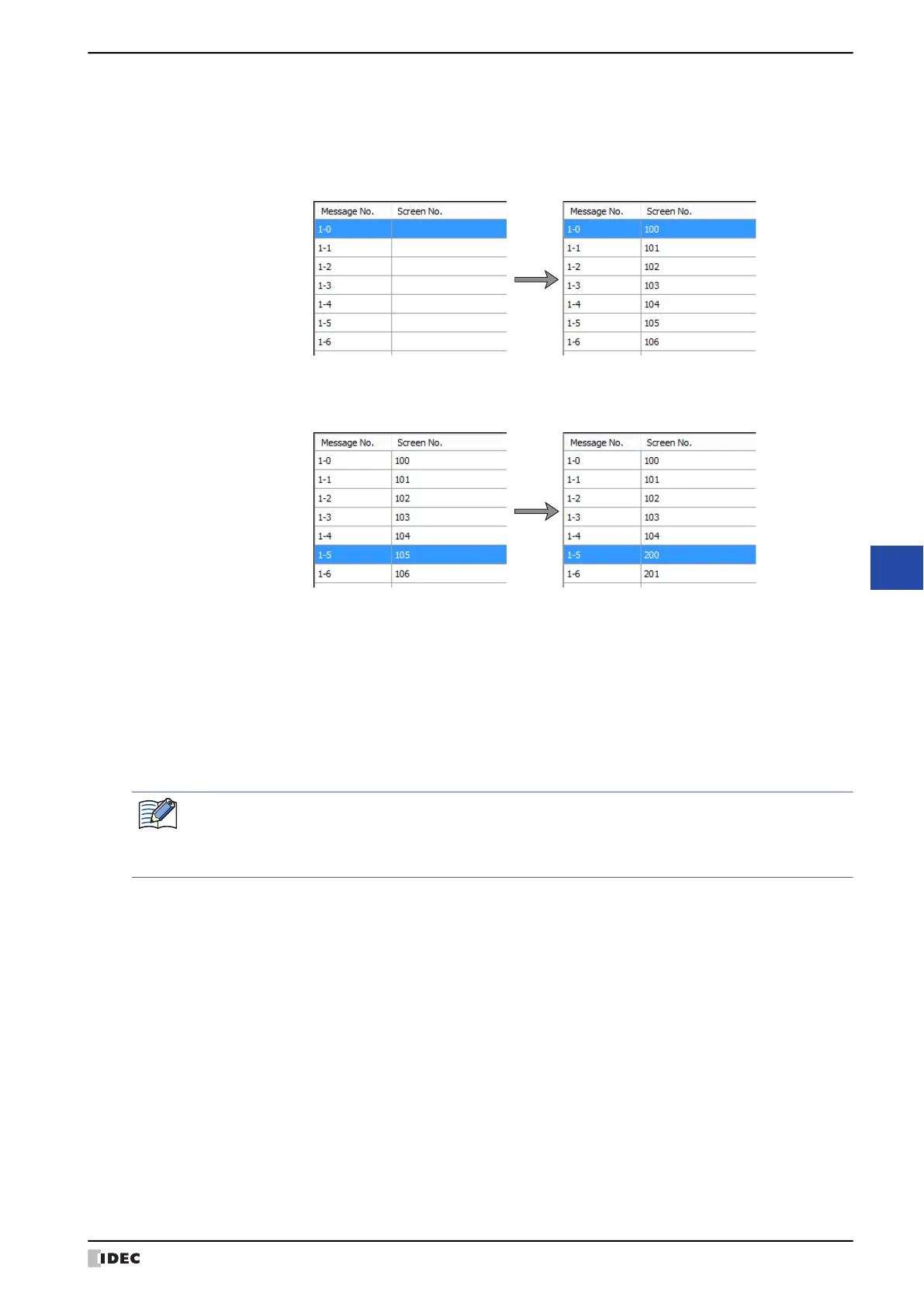

Serial: Continuously and automatically specifies screen numbers (1 to 3000) that are at or below the
selected message number.
Example 1: When screen number “100” has been entered for message number 1-0.
Screen numbers “100”, “101”, “102”....are automatically specified in order from message
number 1-0.
Example 2: When screen number “200” has been entered for message number 1-5.
Message numbers 1-0 to 1-4 are left unchanged and screen numbers “200”, “201”,
“202”....are automatically specified in order from message number 1-5.
Random: Specifies a reference screen number (1 to 3000) for each message number.
Message No.: Displays the message number.
Screen No.: Displays the reference screen number.
Double clicking the cell allows you to change the screen number (1 to 3000).
When there is not screen for the specified screen number a message confirming the creation of a new
screen will appear.
If Yes is clicked, a screen will be created but if No is clicked, you will be returned to the Options screen
without creating a screen.
Title: Displays the title of a reference screen.
Double clicking the cell allows you to edit the title. The maximum number is 40 characters.
To Next Page
