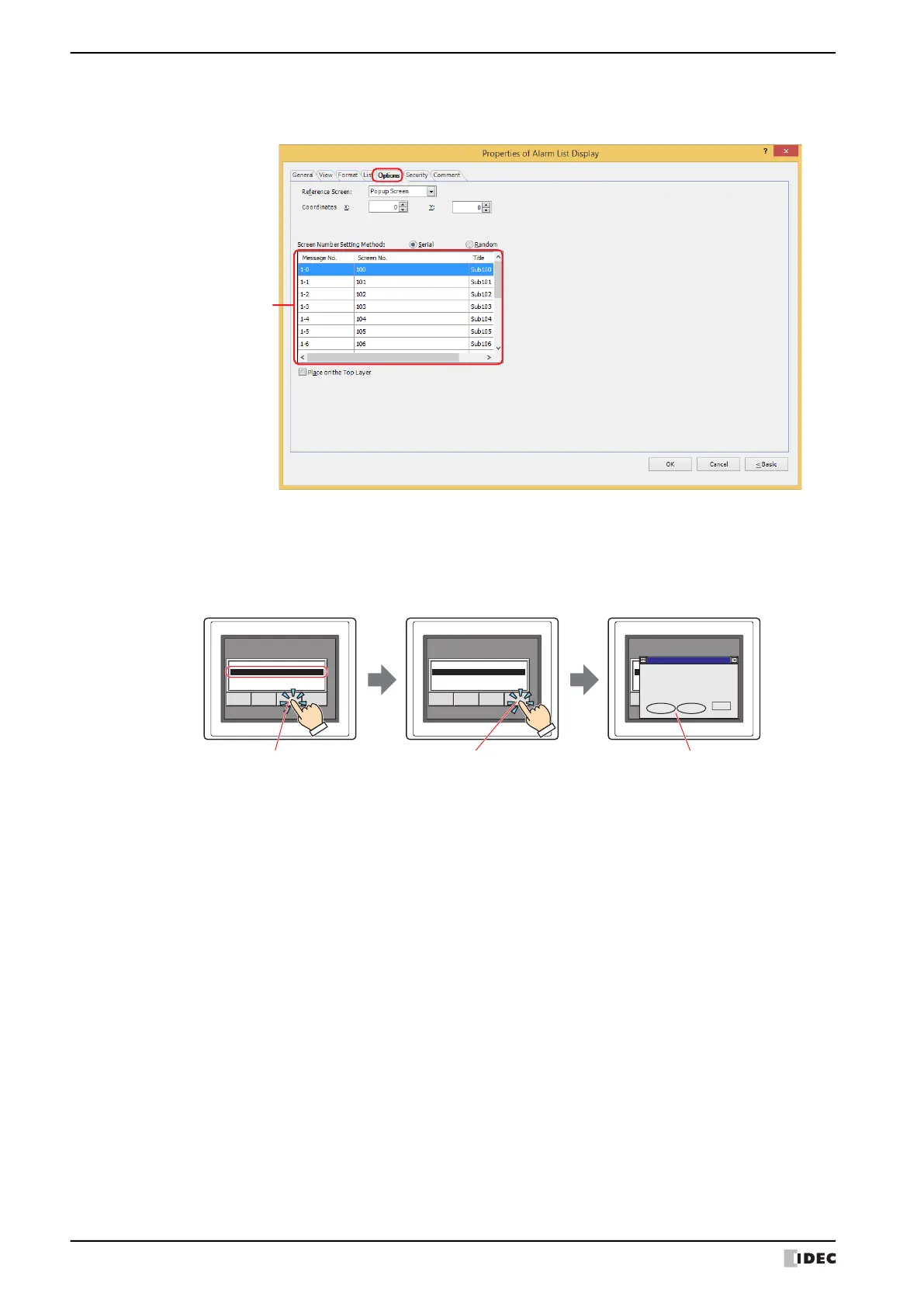

● Options Tab
The Options tab is displayed in Advanced mode.
■ Reference Screen
The Options tab is used to configure the reference screen. The reference screen is a base screen or popup screen
associated with each individual message. The reference screen is displayed when the key button Ref. is pressed.
When displaying a reference screen, select either Base Screen or Popup Screen as the reference screen type.
When not displaying a reference, select Not Use.
This can only be set when New Message List has been selected in Message Settings on the General tab. When
Use Alarm Log Settings has been selected, the screen type will become the one selected in Reference Screen on
the Channel tab in the Alarm Log Settings dialog box.
■ Coordinates
(Reference screen list)
Reference screen
1. Select a message displayed
on the Alarm List Display
2. Press the key button Ref. Reference screen opens
Motor fault
Pump1 fault
High pressure
Pump1 fault
Reference
Down
Select
Up
Motor fault
Pump1 fault
High pressure
Pump1 fault
Reference
Down
Select
Up
Motor fault
Pump1 fault
High pressure
Pump1 fault
Reference
Down
Select
Up
Pump 1 fault
Pump 1 output low
Stop Start
Press Stop, check the air,
then press Start.
Air Press.
kg/m
2
0000
Key button Ref.Key buttons Up and Dwn
X, Y: Specifies the coordinates to display the reference screen.
With the upper-left corner of the screen as the origin, the X and Y coordinates are the upper-left corner of the
reference screen.
This option can only be configured when Base Screen or Popup Screen is selected for Reference Screen.
Specify the coordinates in 1 dot units.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
