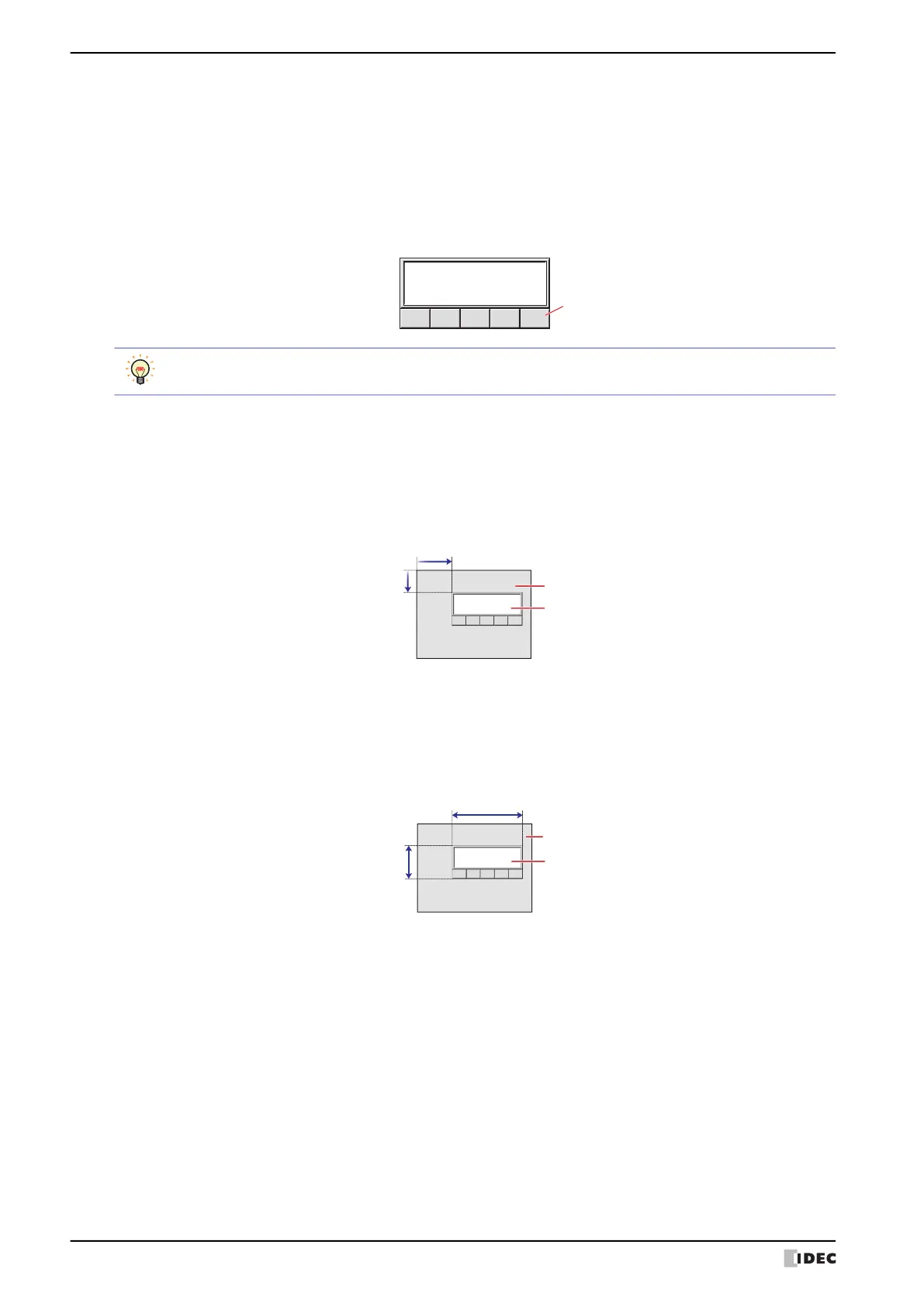

8 Alarm Log Display
10-160 WindO/I-NV4 User’s Manual
â– Buttons
â– Coordinates
â– Size
Foreground Color, Background Color: Selects the foreground and background colors of the buttons (color: 256
colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern or tonal gradation for the button.
Click Pattern to display the Pattern Palette. Select a pattern or tonal gradation
from the Pattern Palette.
Up Down
CheckSelect Delete
Occurrence Message Recovered Confirmed
12/01 12 : 00 Current fault 12 : 53 12 : 54
Buttons
Can be set only when there are grouped Key Buttons.
X, Y: Sets the display position of parts using coordinates.
The X and Y coordinates of parts is defined relative to an origin at the top-left corner of the screen.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
Up Down CheckSelect Delete
Occurrence Message Recovered Confirmed
12/01 12 : 00 Current fault 12 : 53 12 : 54
(0, 0)
Y
X
Screen
Parts
W, H: Sets width and height to define the size of parts.
W: 20 to (base screen horizontal size)
H: 20 to (base screen vertical size)
Up Down CheckSelect Delete
Occurrence Message Recovered Confirmed
12/01 12 : 00 Current fault 12 : 53 12 : 54
Width
Height
Screen
Parts
