WindO/I-NV4 User’s Manual 10-161
8 Alarm Log Display
10
Data Displays

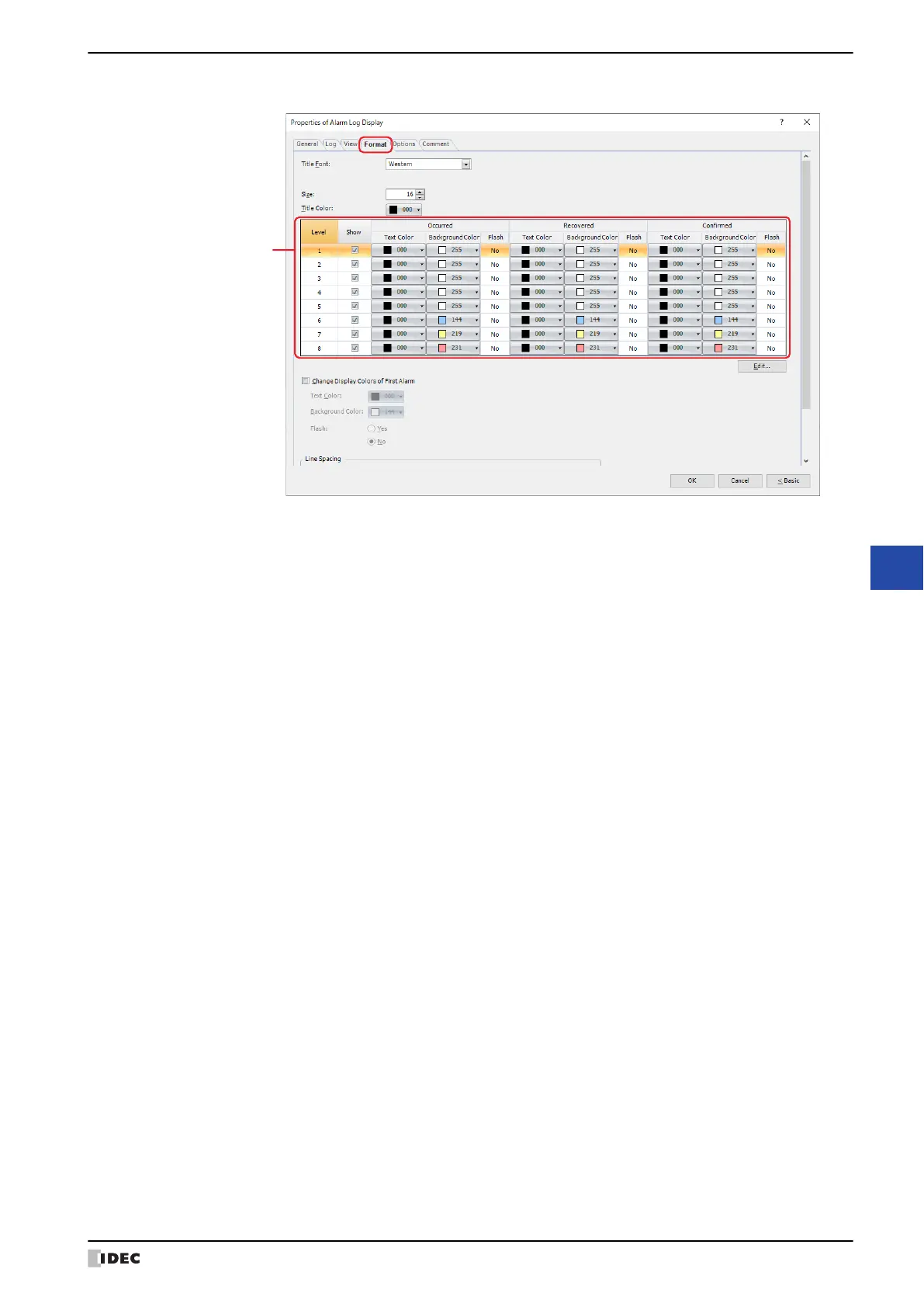

● Format Tab
■ Title Font
Select the font that will be used for the title from the following options.
Western, Japanese, Simplified Chinese, Traditional Chinese, Hangul, Central European, Baltic, Cyrillic
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.2 Available Text” on page 2-6.
■ Style
*1
Selects Regular or Bold for text style.
■ Size
*2
Specifies the character size (8 to 512).
■ Magnification
*1
■ Title Color
Select the color (color: 256 colors, monochrome: 16 shades) of the text for titles.
Click this button to display the Color Palette. Select a color from the Color Palette.
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
*2 HG2J-7U only
(Color setting list
by level and status)
W, H: Selects text magnification (0.5, 1 to 8).
To Next Page
