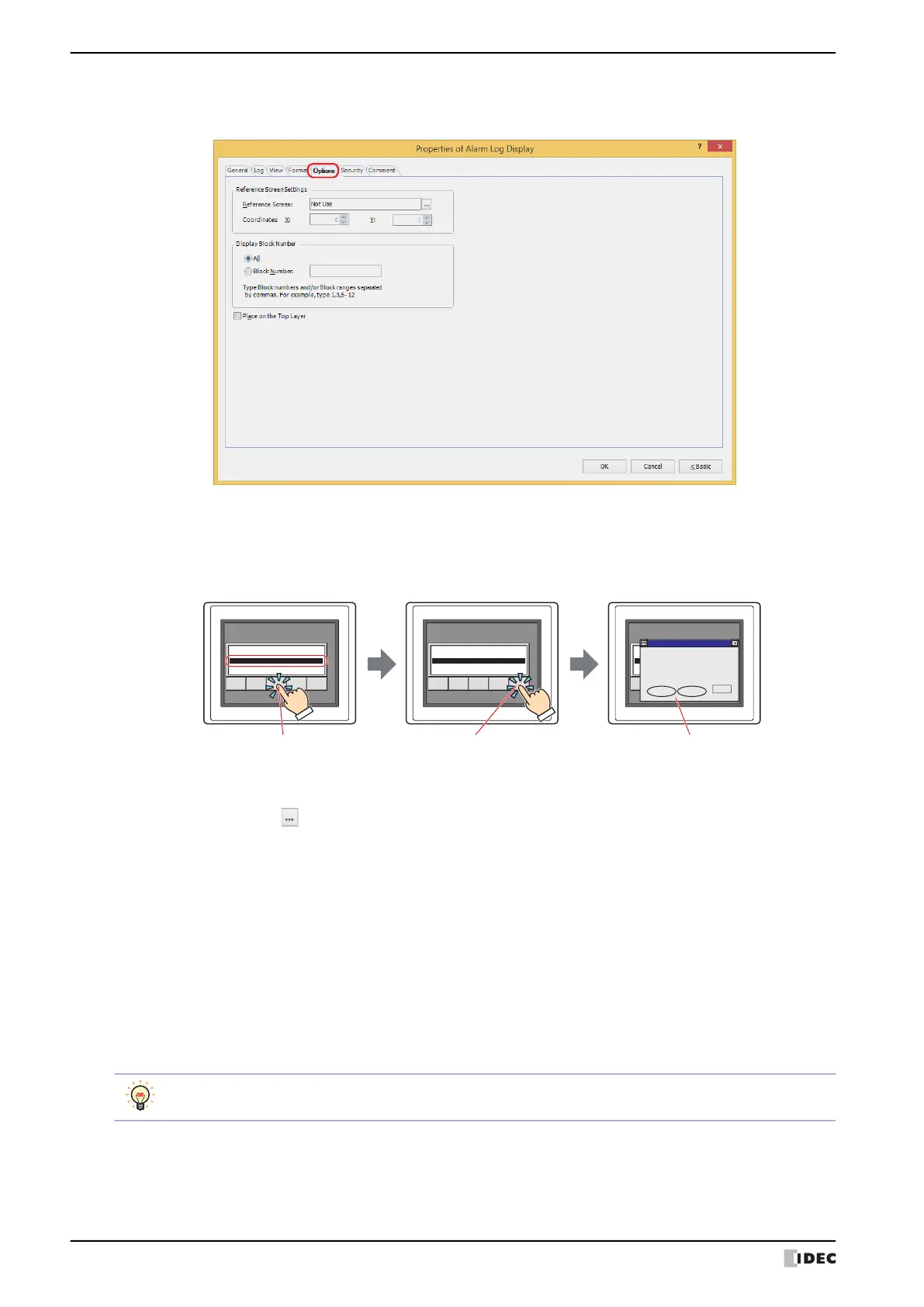

● Options Tab
The Options tab is displayed in Advanced mode.
■ Reference Screen Settings
The Options tab is used to configure the reference screen. The reference screen is a base screen or popup screen
associated with each individual message. The reference screen is displayed when the key button Ref. is pressed.
Reference Screen: Displays the type of screen selected in Reference Screen on the Channel tab in the Alarm
Log Settings dialog box.
Click to display the Alarm Log Settings dialog box.
When displaying a reference screen, select either Base Screen or Popup Screen as the
reference screen type.
When not displaying a reference, select Not Use.
Coordinates X, Y: Specifies the coordinates to display the reference screen.
With the upper-left corner of the screen as the origin, the X and Y coordinates are the upper-left
corner of the reference screen.
This option can only be configured when Base Screen or Popup Screen is selected for
Reference Screen.
Specify the coordinates in 1 dot units.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
Reference screen
1. Select a message displayed
on the Alarm Log Display
2. Press the key button Ref. Reference screen opens
Up Down
DeleteSelect
Reference
Occurrence Message Recovered Confirmed
12/01 09
:
15 Motor fault
12/01 10
:
02 Pump1 fault 12
:
50
12/01 10
:
28 High pressure 12
:
54
12/01 13
:
02 Pump1 fault
Up Down
DeleteSelect
Reference
Occurrence Message Recovered Confirmed
12/01 09
:
15 Motor fault
12/01 10
:
02 Pump1 fault 12
:
50
12/01 10
:
28 High pressure 12
:
54
12/01 13
:
02 Pump1 fault
Up Down
DeleteSelect
Reference
Occurrence Message Recovered Confirmed
12/01 09
:
15 Motor fault
12/01 10
:
02 Pump1 fault 12
:
50
12/01 10
:
28 High pressure 12
:
54
12/01 13
:
02 Pump1 fault
Pump 1 fault
Pump 1 output low
Stop Start
Press Stop, check the air,
then press Start.
Air Press.
kg/m
2
0000
Key button Ref.Key buttons Up and Dwn
If you overlap the reference screen key button and the move focus key buttons, the reference screen can be
switched and checked while moving the focus.
