WindO/I-NV4 User’s Manual 10-177
9 Data Log Display
10
Data Displays

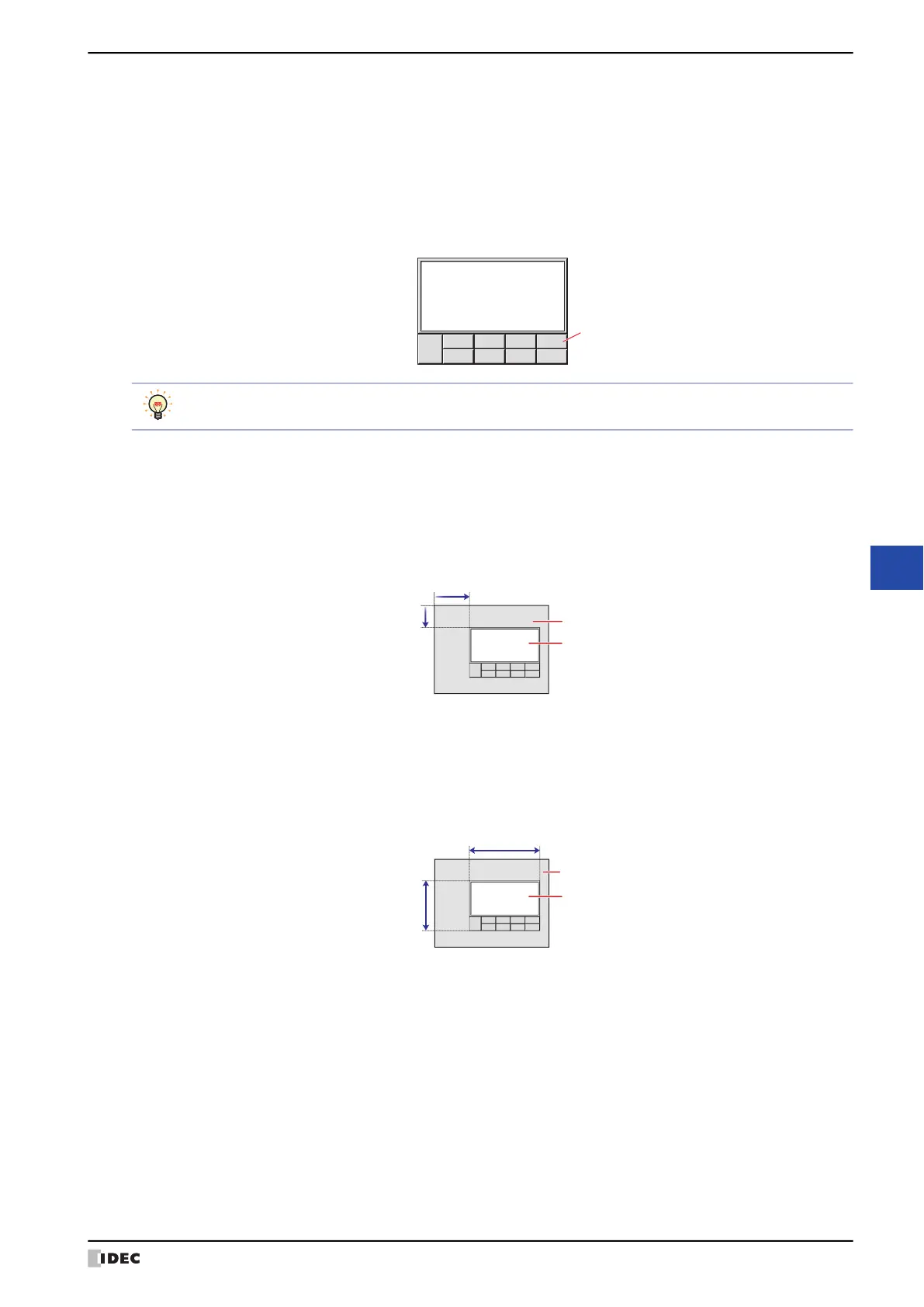

■ Buttons
■ Coordinates
■ Size
Foreground Color, Background Color: Selects the foreground and background colors of the buttons (color: 256
colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern or tonal gradation for the button.
Click Pattern to display the Pattern Palette. Select a pattern or tonal gradation
from the Pattern Palette.
Buttons
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
Can be set only when there are grouped Key Buttons.
X, Y: Sets the display position of parts using coordinates.
The X and Y coordinates of parts is defined relative to an origin at the top-left corner of the screen.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
(0, 0)
Y
X
Screen
Parts
W, H: Sets width and height to define the size of parts.
W: 20 to (base screen horizontal size)
H: 20 to (base screen vertical size)
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
Width
Height
Screen
Parts
