9 Data Log Display
10-178 WindO/I-NV4 User’s Manual

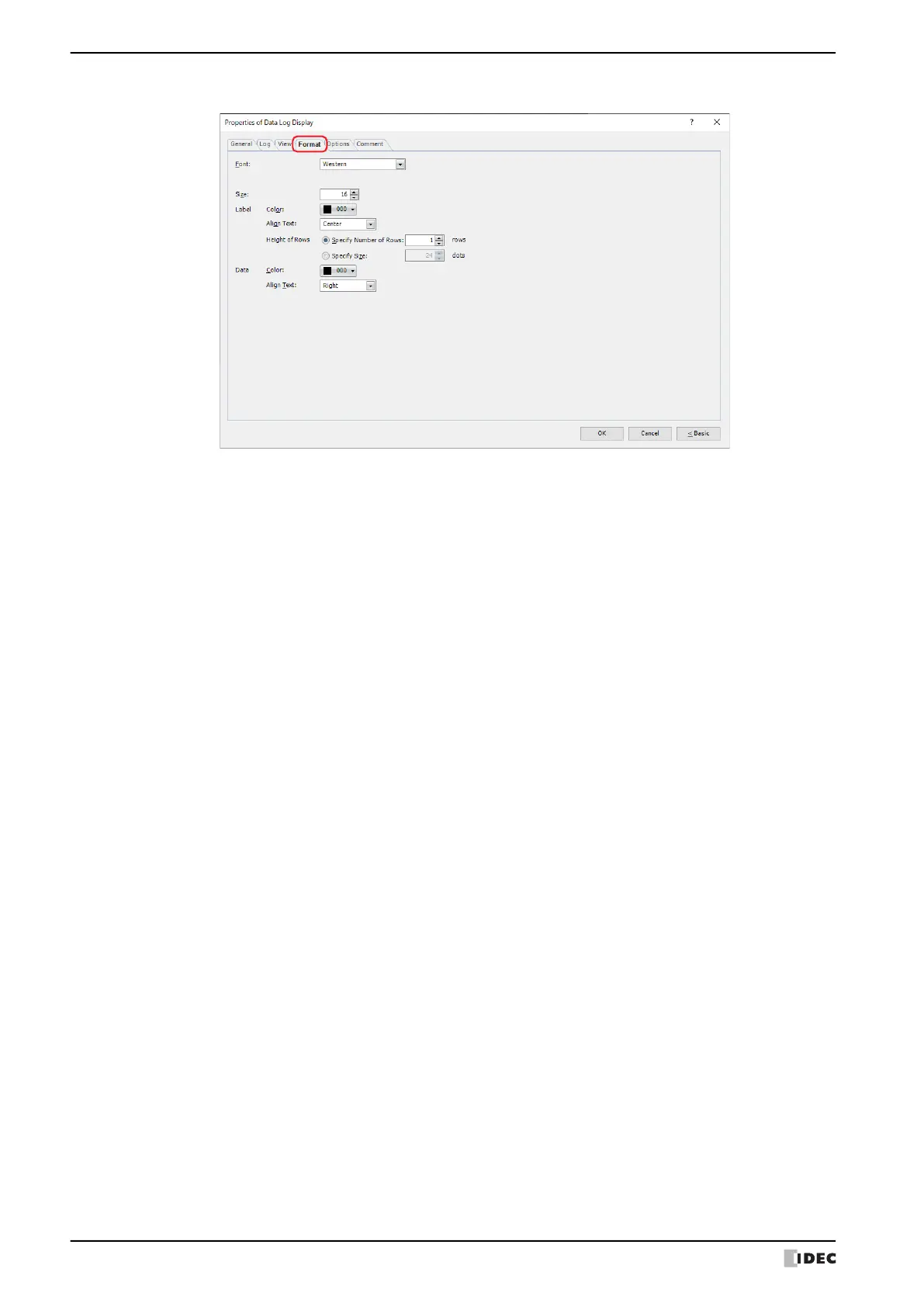

● Format Tab
■ Font
Select the font to use for displaying the label row and the Data Log data from the following items:
Western, Japanese, Simplified Chinese, Traditional Chinese, Hangul, Central European, Baltic, Cyrillic
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.2 Available Text” on page
2-6.
■ Style
*1
Selects Regular or Bold for text style.
■ Size
*2
Specifies the character size (8 to 512).
■ Magnification
*1
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
*2 HG2J-7U only
W, H: Selects text magnification (0.5, 1 to 8).
