1 Bar Chart
11-14 WindO/I-NV4 User’s Manual

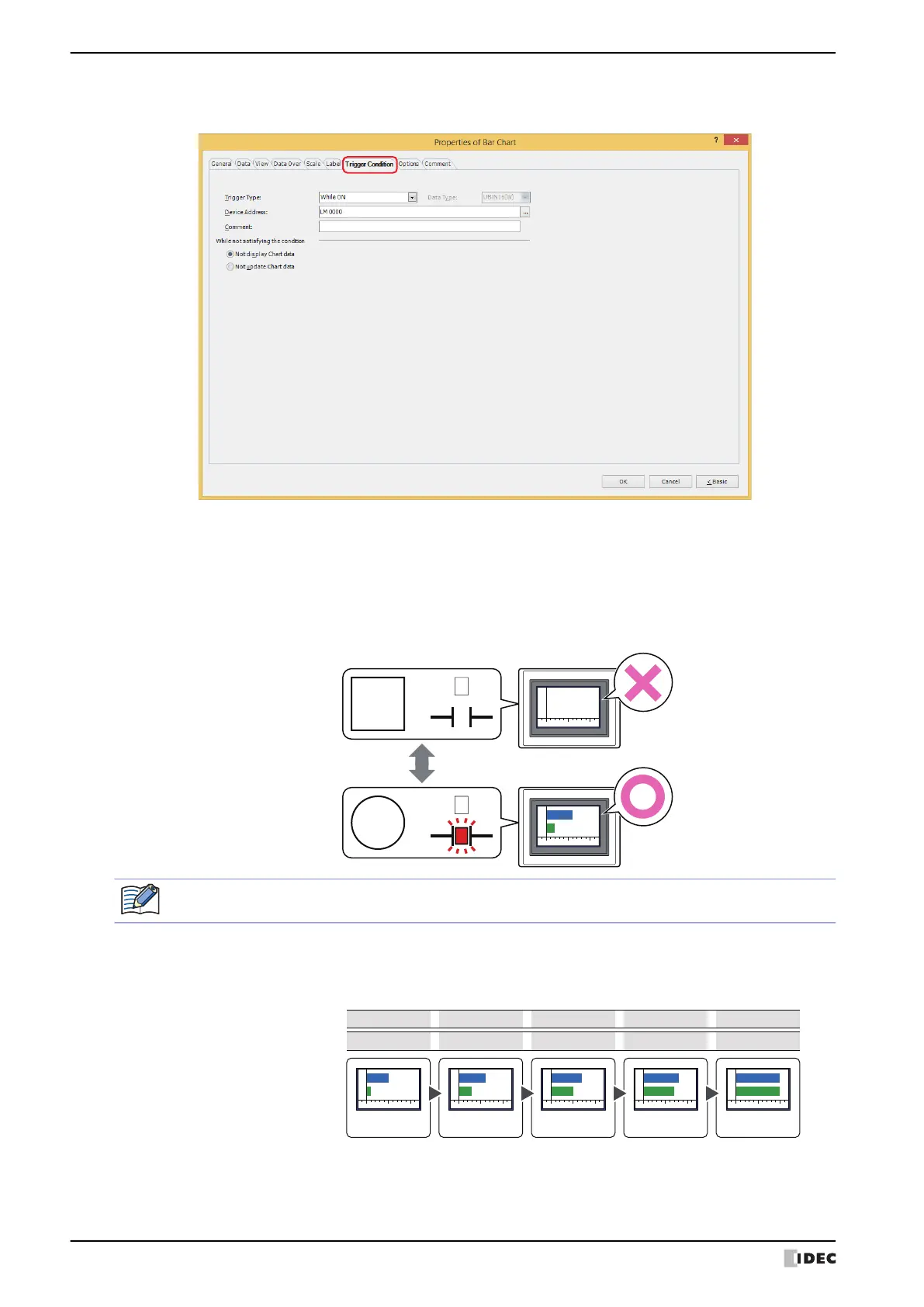

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
The bar chart is enabled while the condition is satisfied, and it is disabled while the condition is not satisfied. Select
the operation when the condition is not satisfied as Not display Chart data or Not update Chart data under
While not satisfying the condition.
Example: When Trigger Type is While ON, Device Address is LM0, and While not satisfying the condition is Not
display Chart data
While LM0 is 0, the condition is not satisfied and the bar chart is not displayed.
While LM0 is 1, the condition is satisfied and the bar chart is displayed.
■ Trigger Type
Selects the condition to enable the bar chart from the following.
LM0
:
MICRO/I
Condion
Not
sasfied
0
LM0
:
Condion
Sasfied
1
Show chart
Hide chart
100500
100500
Data over does not operate for hidden bar charts. Data over is reported if the minimum or maximum is
exceeded when the bar chart changes from hidden to displayed.
Always visible: The bar chart is always enabled.
Ch1 data
50
Ch2 data
Display
10
60
30
70
50
80
70
90
90
Update Update Update Update Update
100500 100500 100500 100500 100500
