WindO/I-NV4 User’s Manual 11-15
1 Bar Chart
11
Charts
■ Data Type
Selects the data type to be handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Device Address
Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.

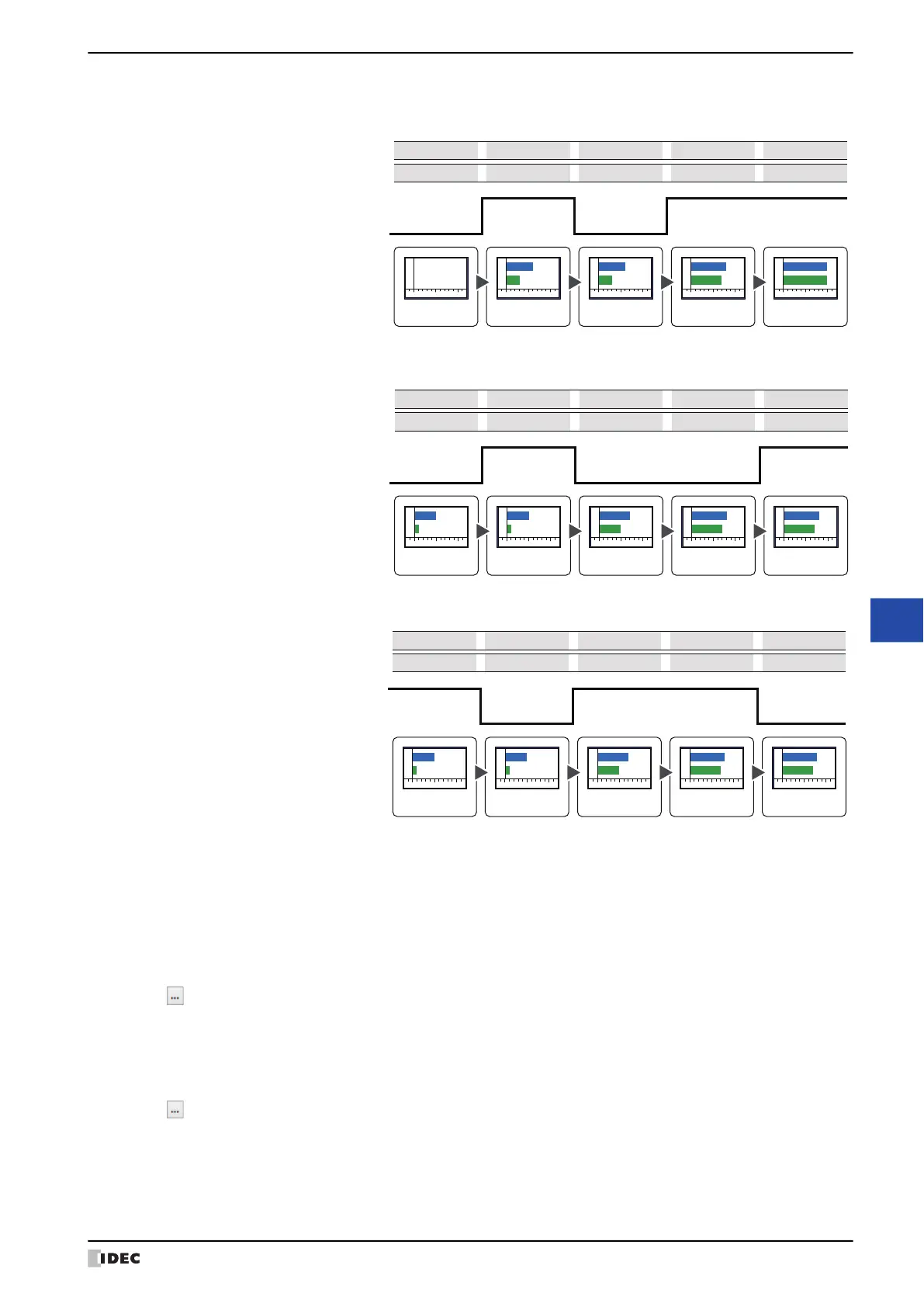

While ON: Enables the bar chart when the value of device address is 1.
Example: When While not satisfying the condition is Not update Chart data
While OFF: Enables the bar chart when the value of device address is 0.
Example: When While not satisfying the condition is Not update Chart data
While satisfying the condition: Enables the bar chart when the condition is satisfied.
Example: When While not satisfying the condition is Not update Chart data
Value of
device address
1
0
Ch1 data
50
Ch2 data
Display
10
Update
60
30
70
50
Update
80
70
Update
90
90
Do not update Do not update
100500 100500 100500 100500 100500
Value of
device address
1
0
Update
Ch1 data
50
Ch2 data
Display
10
60
30
Update
70
50
Update
80
70
90
90
Do not update Do not update
100500 100500 100500 100500 100500
Update Do not update Do not update
Ch1 data
50
Ch2 data
Display
10
60
30
Update
70
50
Update
80
70
90
90
Condion
Sasfied
Not sasfied
100500 100500 100500 100500 100500
