WindO/I-NV4 User’s Manual 12-5
1 Bit Write Command
12
Commands
■ Destination Device Address
Specify the destination bit device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Write
*1
Specify the number of bit devices (1 to 64) at the destination.
This setting is enabled only if Action Mode is set to Set or Reset.
Example: This fills a contiguous block of bit devices with the same value.
If the bit number in a word device is specified, the same value is written to same bit of contiguous word devices.
■ Source Data
Specifies the device address where the data to be written is stored.
This setting is enabled only if Action Mode is set to Move.
Example: This button writes the values in a contiguous block of bit devices to a contiguous block of device
addresses at the destination.
*1 Advanced mode only

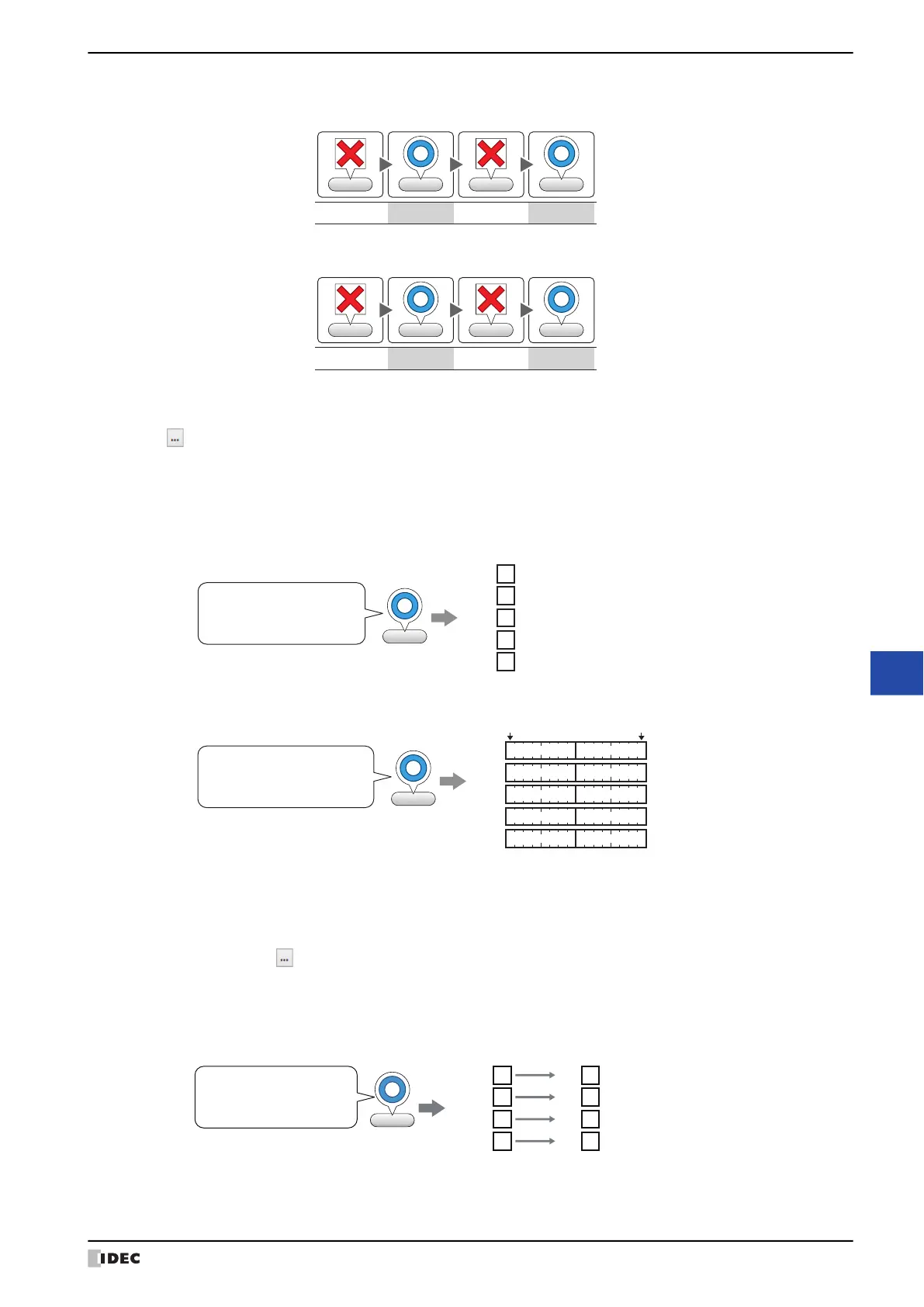

Toggle: Toggles the value of the specified bit device when the trigger condition is satisfied.
If the value of the bit device is 0 it changes to 1, and vice versa.
Move: This function writes the value in the source bit device to the value in the destination bit device when
the trigger condition is satisfied.
State of condition
Action
Toggle
Toggle
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied
State of condition
Action
Move
Move
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied
1M0
1M1
1M2
1M3
1M4
Action Mode: Set
Write: 5
Destination Device Address: M0
Condition
SatisfiedSatisfiedSatisfied
Condition
bit bit
15 0
Satisfied
Satisfied
Satisfied
1D0
D1
D2
D3
D4
1
1
1
1
Action Mode: Set
Write: 5
Destination Device Address: D0-15
Device Address: Specify the source bit device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter
2 “5.1 Device Address Settings” on page 2-70.
Transfer: Specify the number of bit devices (1 to 64) to move.
1LM0
0LM1
0LM2
1LM3
Device Address: LM0
Transfer: 4
Destination Device Address: M0
1M0
0M1
0M2
1M3
Condition
SatisfiedSatisfiedSatisfied
