Measurement modes 209

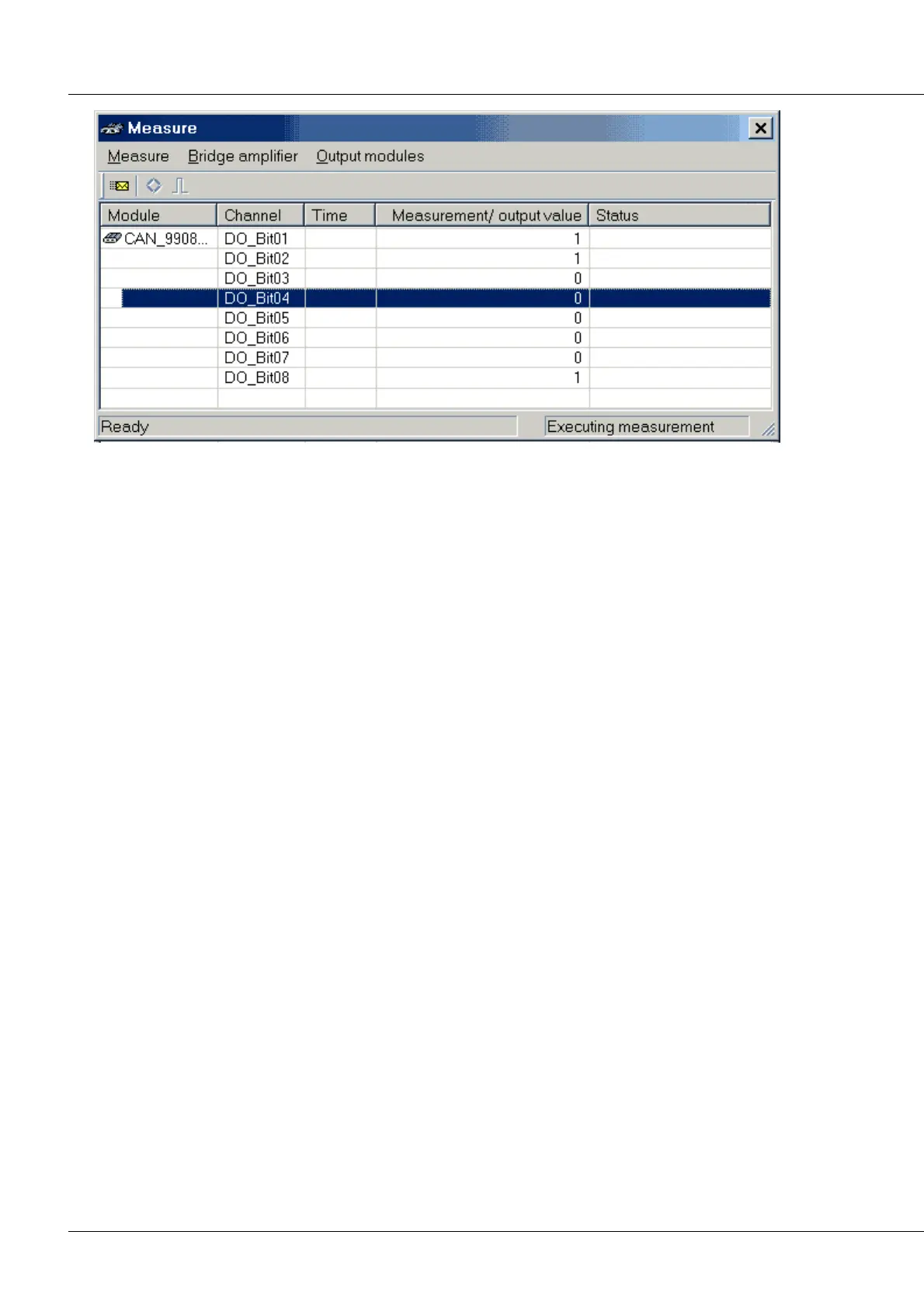

Measure" dialog with DO8R or DO 16 modules"

For output modules, the items Transfer all values and Transfer value after editing under the Output

modules menu are available.

Transfer value after editing

This function can be toggled on and off. If it is active, then any editing performed on the entry is

immediately sent to the module. If the function is off, the new value becomes valid but is not

transferred. This way, it is possible to set multiple bits and then transfer them as a unit by using the

function Transfer all values.

Transfer all values

This function transfers the output values of all output modules shown in the window to the modules.
