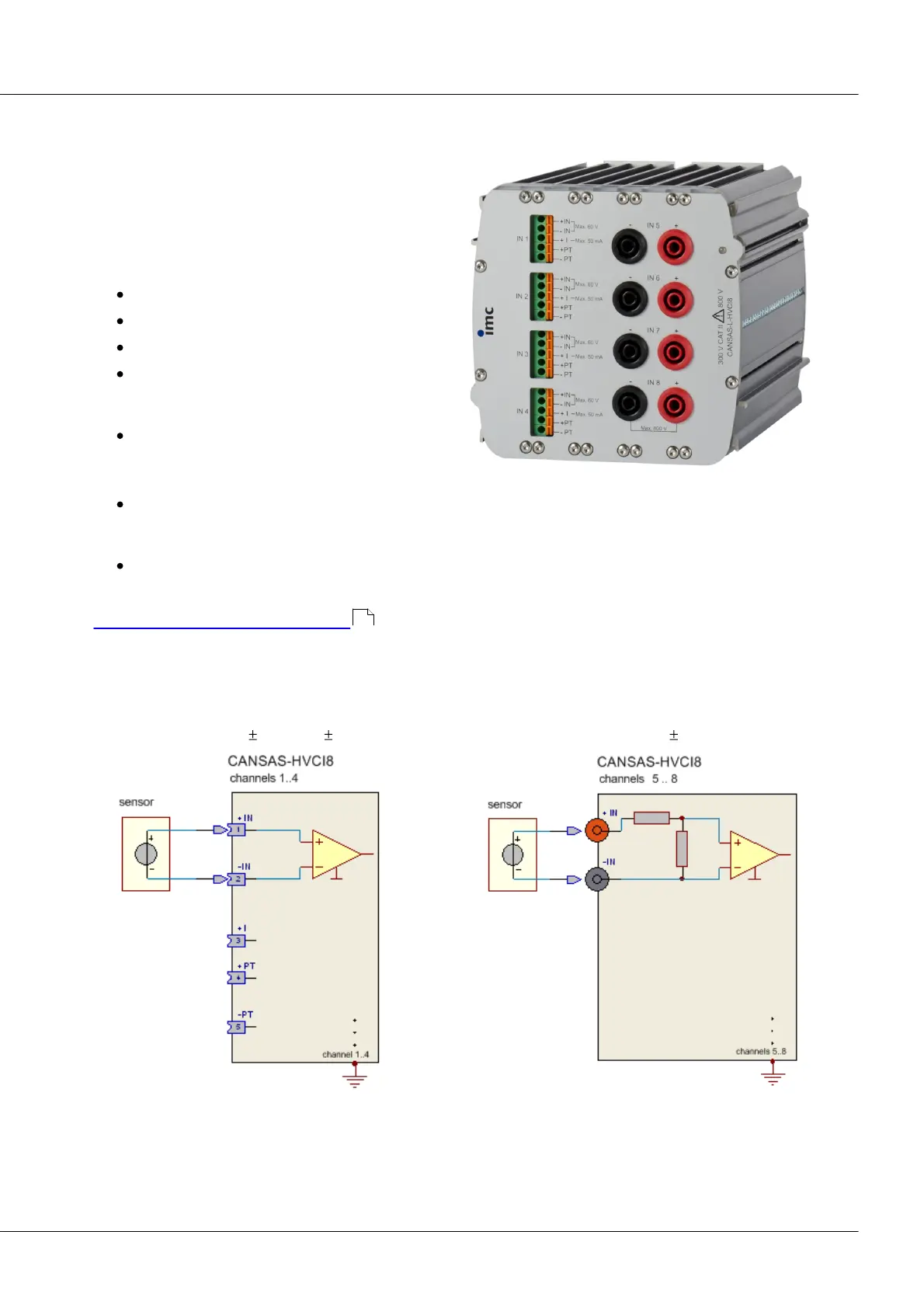

6.15 HVCI8
The CANSAS-L-HVCI8 enables measurement of low
voltage signals riding on a high or indeterminate
common mode level of up to 800 V. Additionally
direct measurement of differential high level
voltages up to ±800 V is supported on 4 out of 8
channels via banana jacks.
Voltage (±50 mV to ±60 V)
Voltage up to ±800 V (on 4 out of 8 channels)
Temperature (thermocouple and Pt100)
Current (10 mA to 20 mA)
Highlights:
Each channel galvanically isolated,
channel-to-channel and
channel-to-ground
High signal bandwidth
imc CANSAS-L-HVCI8
Typical applications:
Temperature measurements on high voltage battery or fuel cell terminals, e.g. Hybrid or Electric
vehicles.
Technical details: imc CANSAS-HVCI8
6.15.1 Voltage measurement
Voltage ( 50 mV to 60 V)
Voltage up to 800 V
