8.3.7.8 µ-CANSAS Phoenix strip terminal

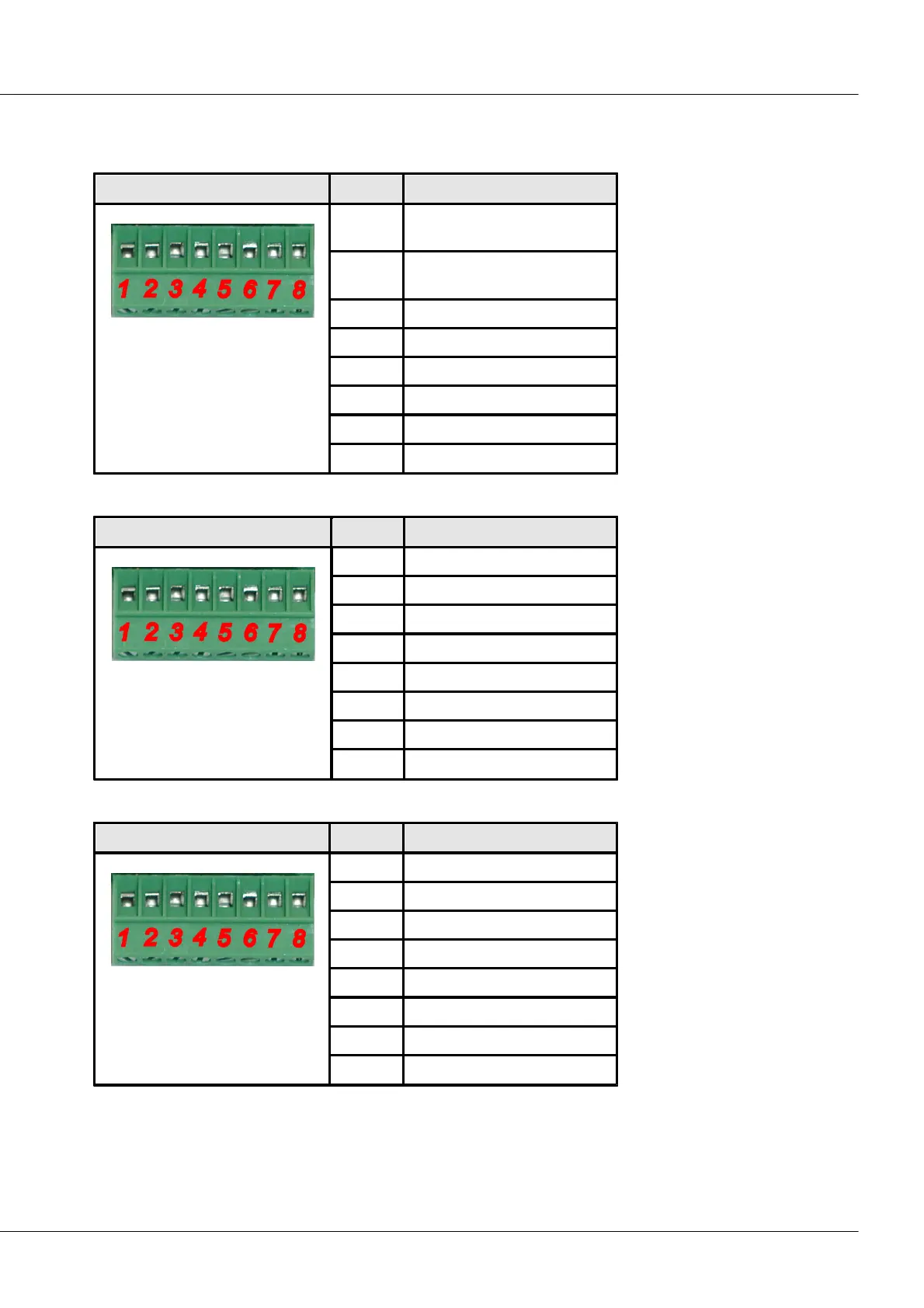

Pin configuration of the Phoenix strip terminal for imc µ-CANSAS-V1-AS
Phoenix MPT0,5/8
Pin
Signal
8-pin Phoenix strip terminal
8-Pin Phoenix MPT0,5/8
Contact inserts
with screw connections
8
+IN with divider
(MR 2..60V)
7
+IN without divider
(MR 0,1..1V)
6
-IN_COM
5
reserved
4
-SUPPLY
3
+SUPPLY
2
reserved
1
reserved
Pin configuration of the Phoenix strip terminal for imc µ-CANSAS-B1-AS
Phoenix MPT0,5/8
Pin
Signal
8-pin Phoenix strip terminal
8-Pin Phoenix MPT0,5/8
Contact inserts
with screw connections
8
reserved
7
+IN
6
-IN_COM
5
HB
4
-SUPPLY
3
+SUPPLY
2
-Sense
1
+Sense
Pin configuration of the Phoenix strip terminal for imc µ-CANSAS-T1-AS
Phoenix MPT0,5/8
Pin
Signal
8-pin Phoenix strip terminal
8-Pin Phoenix MPT0,5/8
Contact inserts
with screw connections
8
reserved
7
+IN
6
-IN_COM
5
reserved
4
reserved
3
reserved
2
reserved
1
reserved
