2.6.11.2 Power supply from busDAQ unit

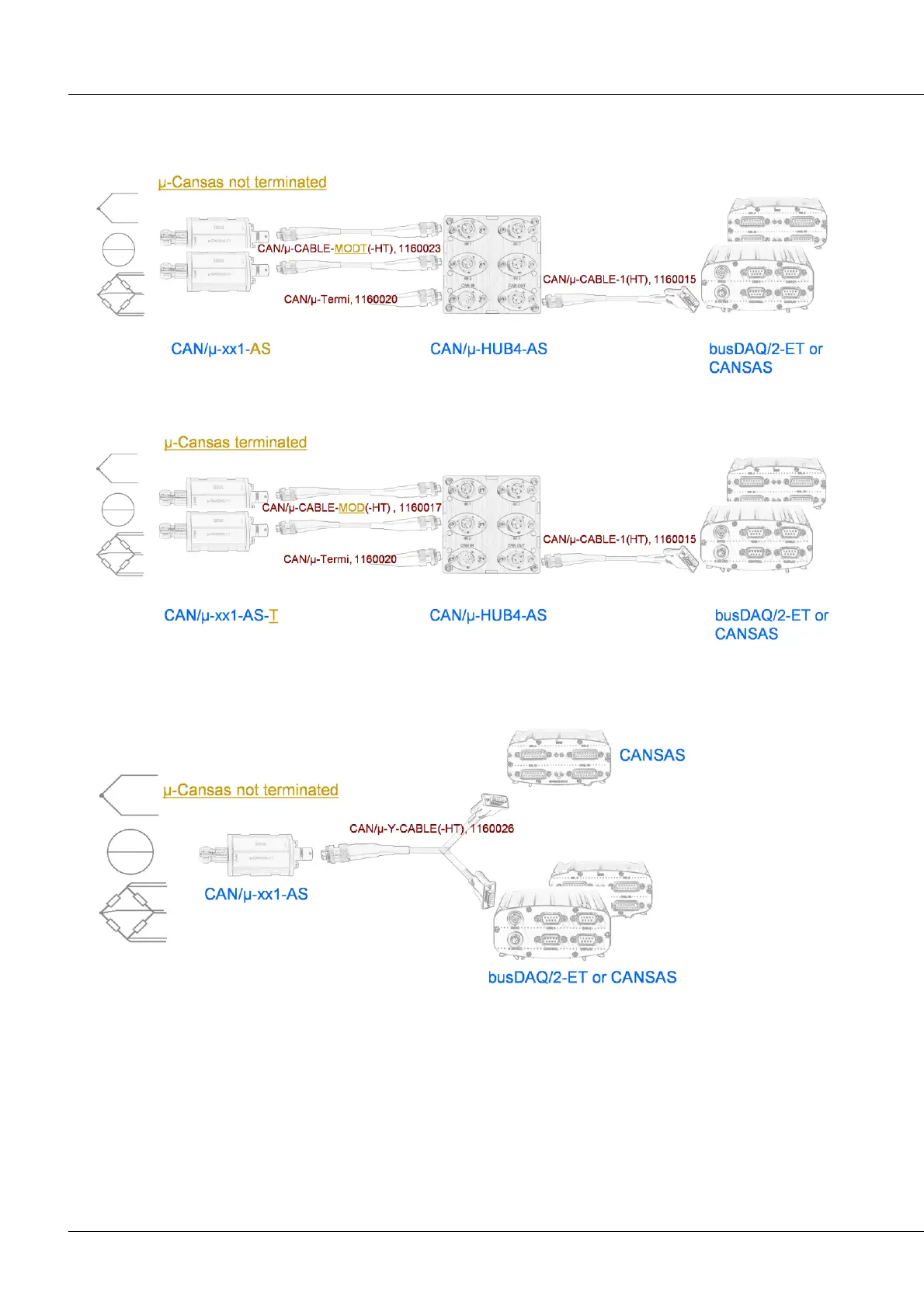

Configuration 5: imc µ-CANSAS via HUB. Termination inside of the cable
µ-CANSAS terminatedinside of the cable. busDAQ supplies µ-CANSAS and HUB
Configuration 6: imc µ-CANSAS via HUB. Termination inside of the cable
µ-CANSAS are terminated internally. busDAQ supplies µ-CANSAS and CANSAS
Configuration 7: imc µ-CANSAS and imc CANSAS. Termination inside of the imc BUSDAQ unit and at the
imc CANSAS
µ-CANSAS units are not termated. busDAQ supplies µ-CANSAS and CANSAS with power
