2.6.4.1 Termination in data logger
Current imc devices equipped with CAN-bus interface CAN2 can have a terminator resistor switched on
internally via software. If the device is connected at one end of the CAN line, an external Y-cable with
terminator is not needed. The terminator is activated as follows in the imc DEVICES software's CAN-
Assistant:

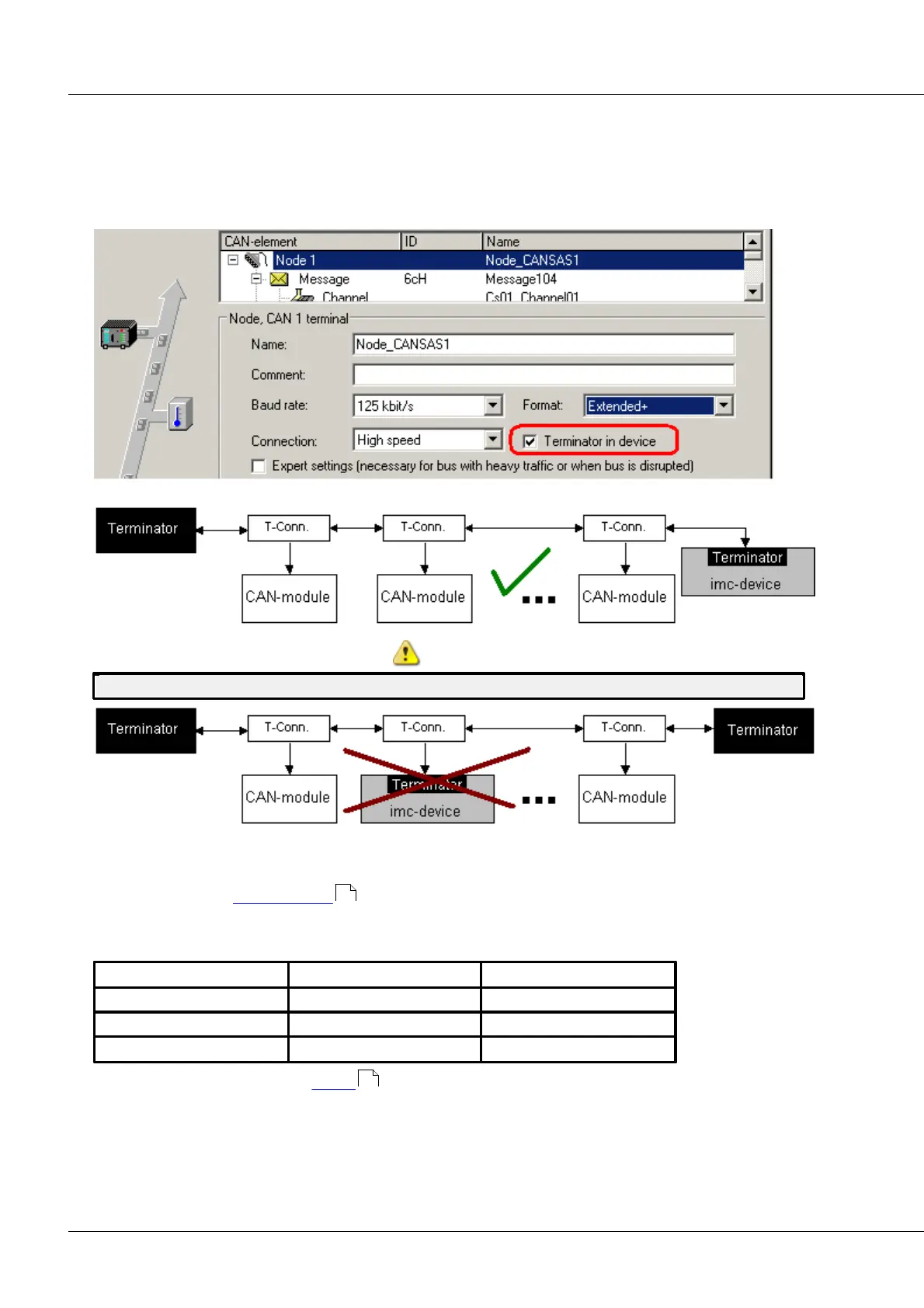

Terminator in imc datalogger set with imc DEVICES
Caution!
If the CAN-bus is already terminated correctly, that option cannot be used!
2.6.4.2 Termination with µ-CANSAS
Note that there are imc µ-CANSAS modules both with and without internal termination. The
termination is already determined at the purchase order, and cannot be modified subsequently.
Terminated imc µ-CANSAS modules are distinguished by a "T":
Code
Name
Order code
1160030
imc µ-CANSAS-T1-AST
µ-CAN/µ-T1-AST
1160031
imc µ-CANSAS-V1-AST
µ-CAN/µ-V1-AST
1160032
imc µ-CANSAS-B1-AST
µ-CAN/µ-B1-AST
See further below for notes on wiring .
