5.8.3.1 Assembly of the ITT-VEAM plug (UNI8)

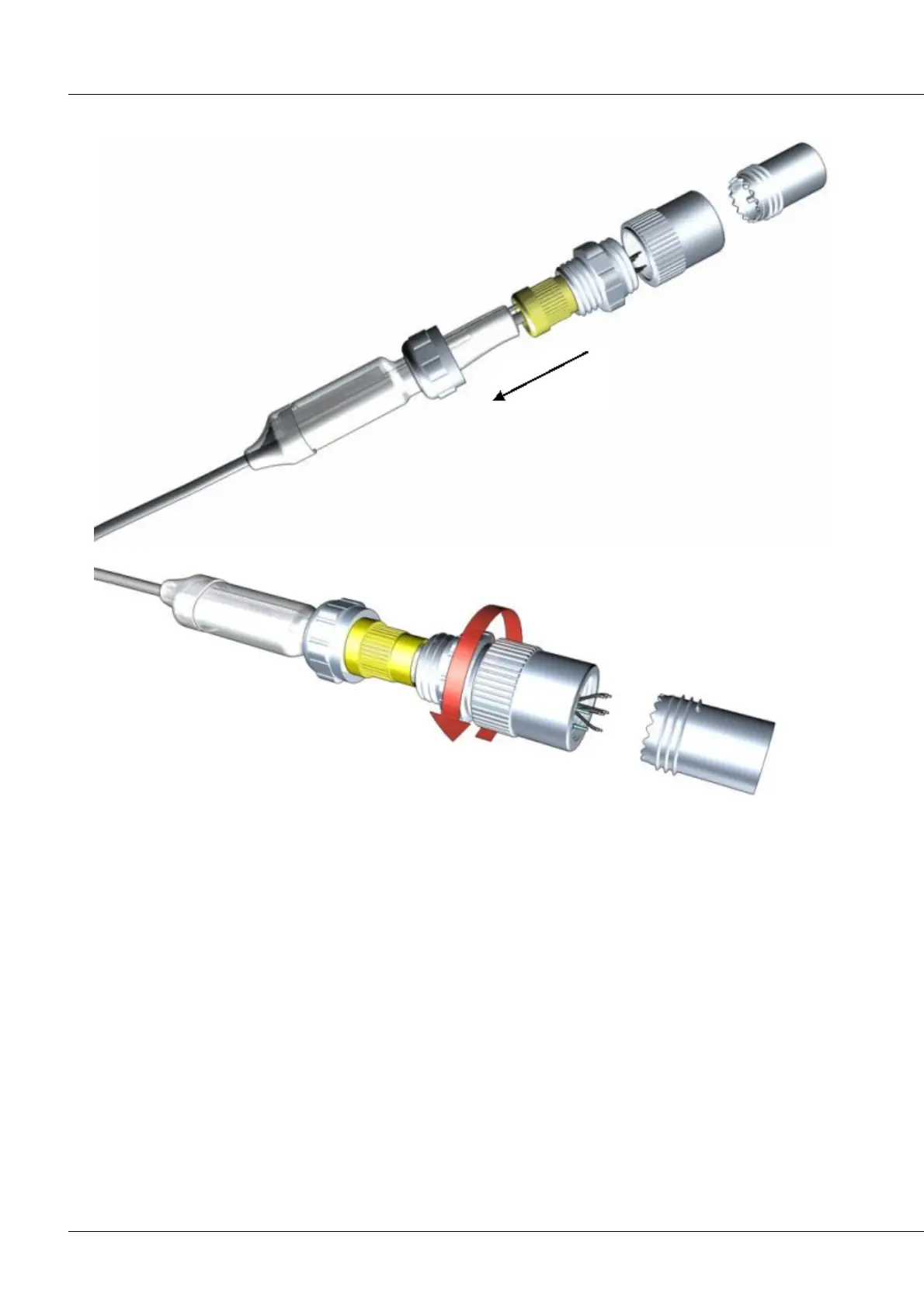

Move the crimp gasket over the silicone tube.
Screw together the connector and move them close to the crimp gasket.
