IMC CANSAS - C8, Ci8, Sci8, Sci16, Sc16 Lemo; Inc4 Lemo

Signal connection 553
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

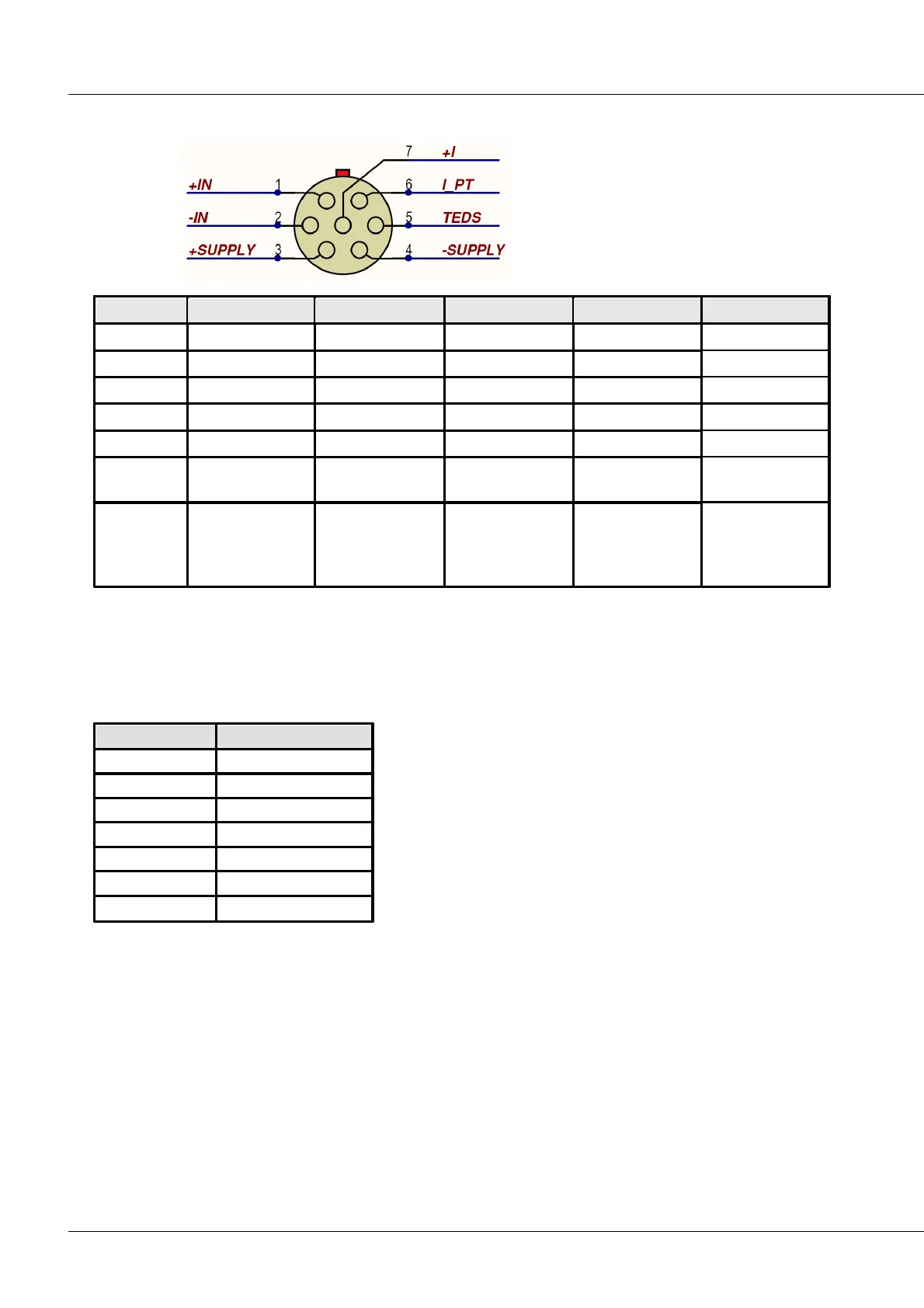

8.3.6.2 C8, CI8, SCI8, SCI16, SC16 LEMO
LEMO PIN
-C8-L-(SUPPLY*)
-CI8-L-(SUPPLY*)
-SCI8-L
-SCI16-L
-SC16-L
1
+IN
+IN
+IN
+IN
+IN
2
-IN
-IN
-IN
-IN
-IN
3
(+SUPPLY)
(+SUPPLY)
+SUPPLY
+SUPPLY
+SUPPLY
4
GND (-SUPPLY)
GND (-SUPPLY)
-SUPPLY (GND)
-SUPPLY (GND)
-SUPPLY (GND)
5
n.c.
TEDS (OneWire)
TEDS (OneWire)
TEDS (OneWire)
TEDS (OneWire)
6
Pt100
current source
Pt100
current source
Pt100
current source
Pt100
current source
Pt100
current source
7
+I (positive
measurement
input for current
measurement)
+I (positive
measurement
input for current
measurement)
positive
measurement
input for current
measurement
positive
measurement
input for current
measurement
positive
measurement
input for current
measurement
* Sensorversorgungsspannungen durch optionales Sensorversorgungsmodul
8.3.6.3 INC4 LEMO
Pin configuration of the LEMO terminals for imc CANSAS-INC4
LEMO PIN
-INC4-L-SUPPLY*
1
+IN X
2
-IN X
3
+SUPPLY
4
-SUPPLY (GND)
5
+INDEX
6
+IN Y
7
-IN Y
* - Bezug von +INDEX ist -SUPPLY (GND)
- Sensorversorgungsspannung 5VDC/ 100mA (optional 300mA)
- andere Sensorversorgungsspannungen durch optionales Sensorversorgungsmodul
