6.1 BRIDGE2: DC-bridge measurement
2-channel bridge amplifier
1 channel each on DSUB-15 socket
Technical data BRIDGE2.
imc CANSAS-BRIDGE2's two bridge channels have a DC bridge excitation voltage of 3,5 V. Any initial
imbalance (offset) of the measurement bridge, which can be as large as multiples of the input range, can
be balanced
Setting the operating mode (for each bridge channel separately):
Channel0x -> Index card “Inputs” -> Combo box “Target”
Setting the bridge configuration:
Channel0x -> Index card “Bridge circuit” -> Combo box “Bridge configuration”

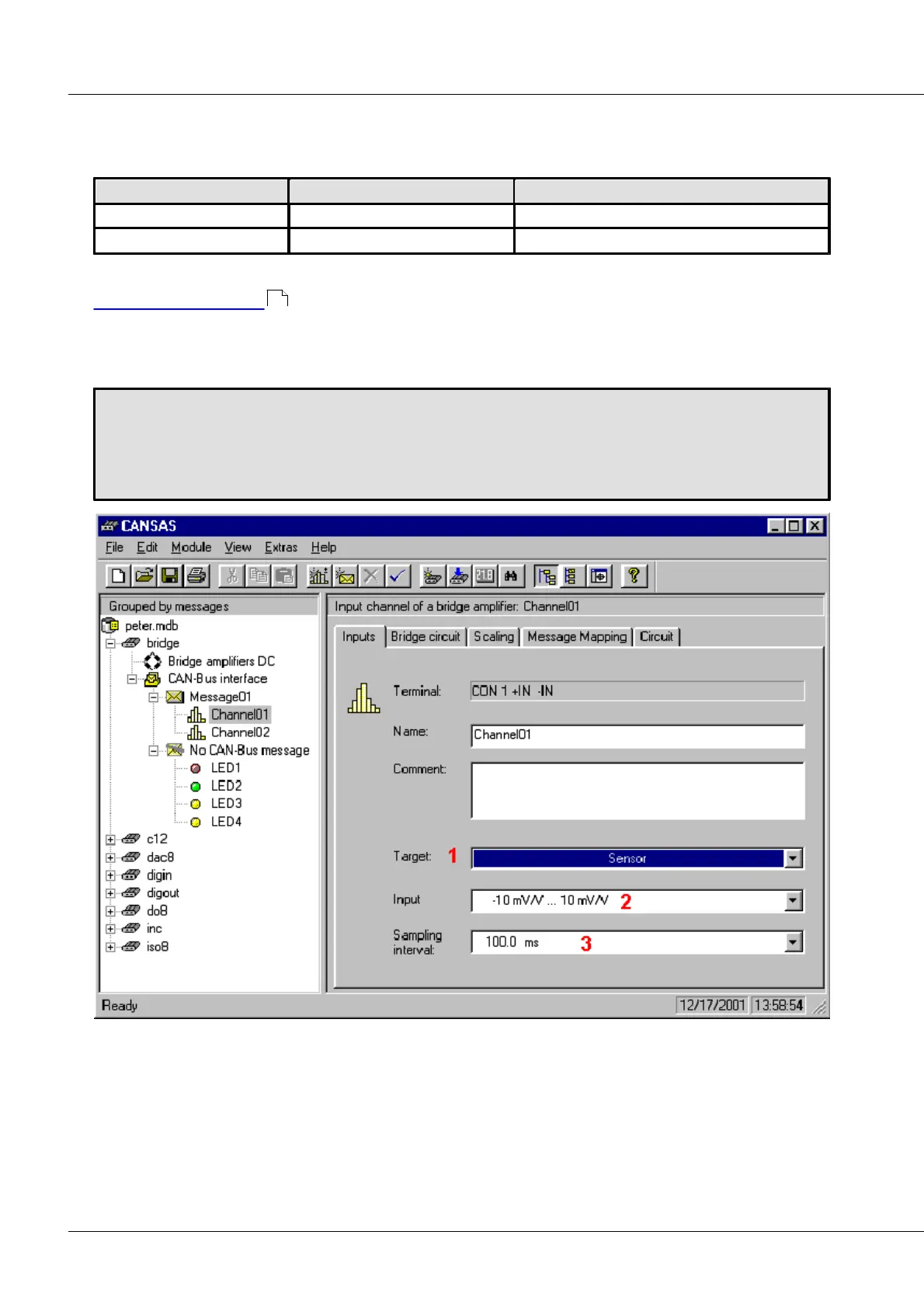

1: Select measurement mode; 2: Select range; 3: Select sample rate
